Osculati 16.194.06 Replacement Impeller Kit (CEF 106)

Product Description

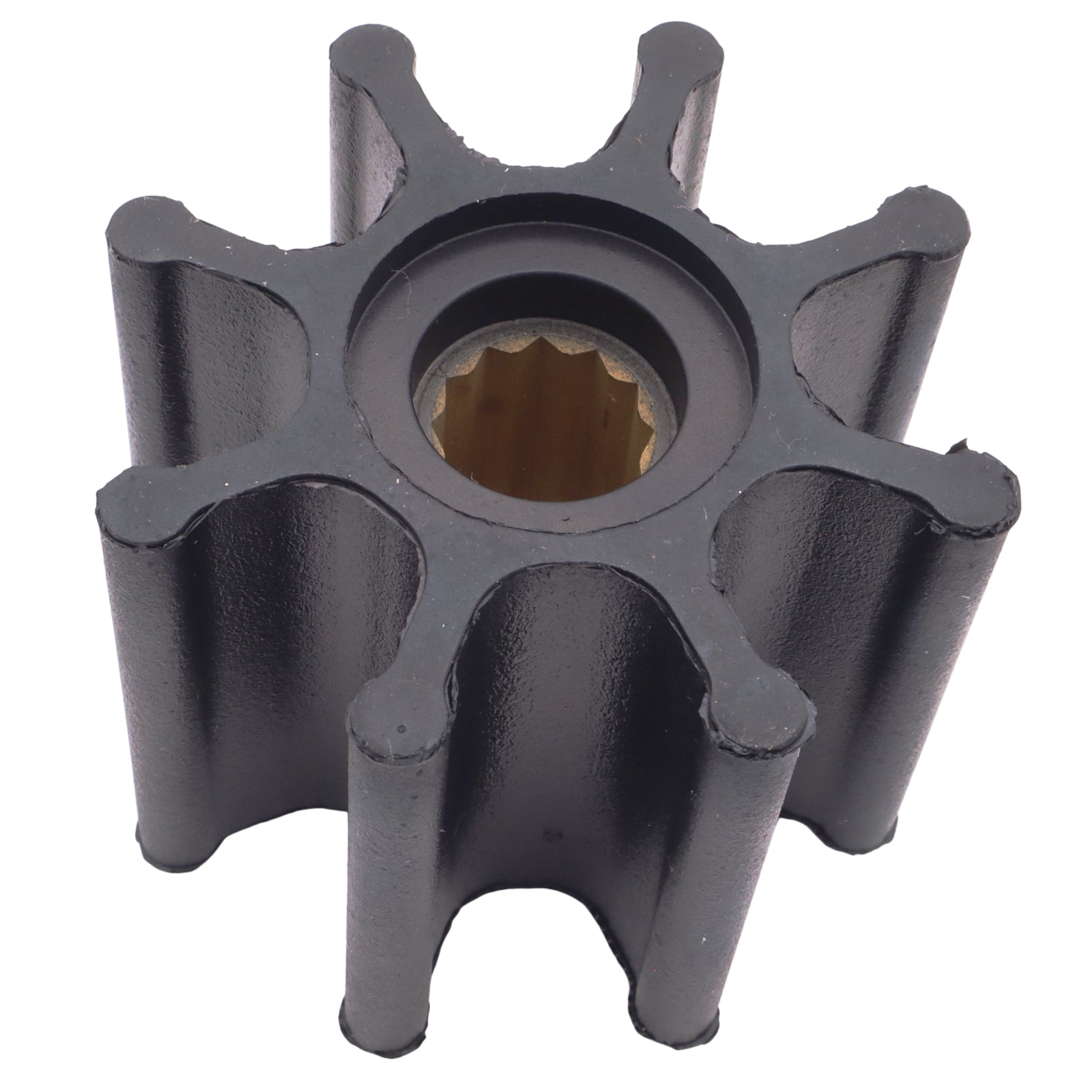

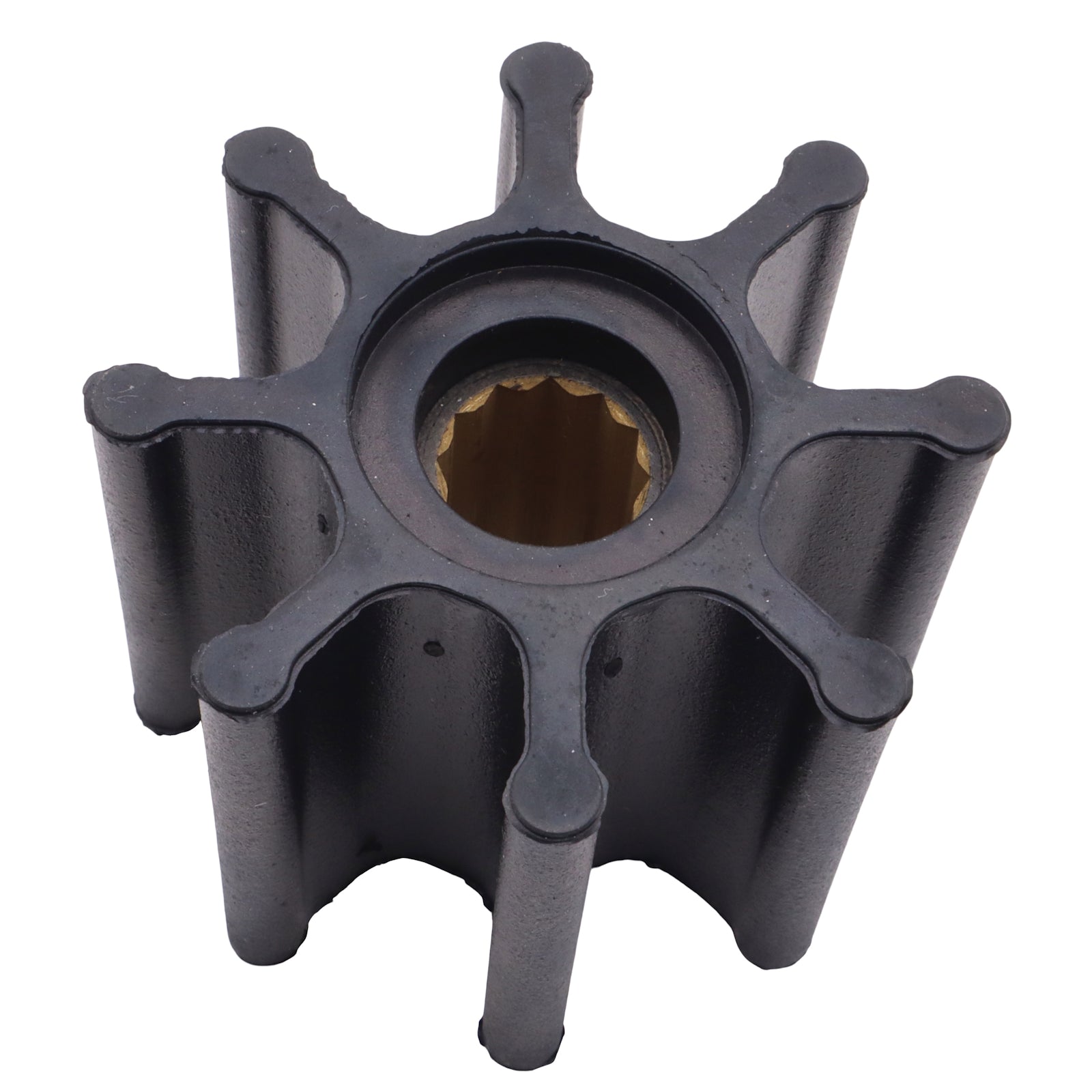

8-blade neoprene impeller kit for Jabsco F7B and 8170-series raw water pumps — one of the most widely fitted flexible impellers in marine applications worldwide. Compatible with Yanmar 4LHA, 4BY and 6BY diesel engines, Perkins 6.354 series, Ford Lehman, Gray Marine, MAN marine diesel, AIFO, Solé Diesel, Volvo Penta, Cummins, Caterpillar, Detroit Diesel and Kaishyama applications. 12-spline drive, 16mm shaft. Supplied with gasket and cap.

The Jabsco 920-0001 and Sherwood 18200K are the same impeller under different manufacturer designations, and the number of engines and pumps that use it is wider than almost any other flexible impeller in production. If you are servicing a Jabsco F7B-series pump, a Jabsco 8170 or 29630-series pump, or a Sherwood 18200K-equipped engine in the 65–150hp bracket, this is the impeller you need. The cross-reference list below covers the major OEM equivalents, but is not exhaustive — if your part number is not listed, search by pump model or contact us with your engine details.

Three related impellers in this range — important to distinguish:

SM-2201 (CEF 114, 10 blades): same 65mm OD, same 50mm length, same 12-spline shaft — but 10 blades rather than 8. Not interchangeable with this part where blade count is specified. Confirm the OEM part number before ordering if you are unsure which applies to your engine.

SM-2199 (CEF 206, nitrile): physically identical to SM-2214 in all dimensions and blade count, but manufactured in nitrile rubber for oil and fuel-contaminated water applications. Use SM-2199 where bilge duty or any risk of oil contamination is present. See SM-2199 listing for full guidance on when to use neoprene versus nitrile.

SM-2037 (CEF 206, nitrile, GT-N): the same nitrile version supplied with a different kit configuration.

Specifications

•    Outside diameter: 65mm
•    Length: 50.2mm
•    Shaft bore: 16mm (12-spline drive)
•    Blades: 8
•    Material: Neoprene

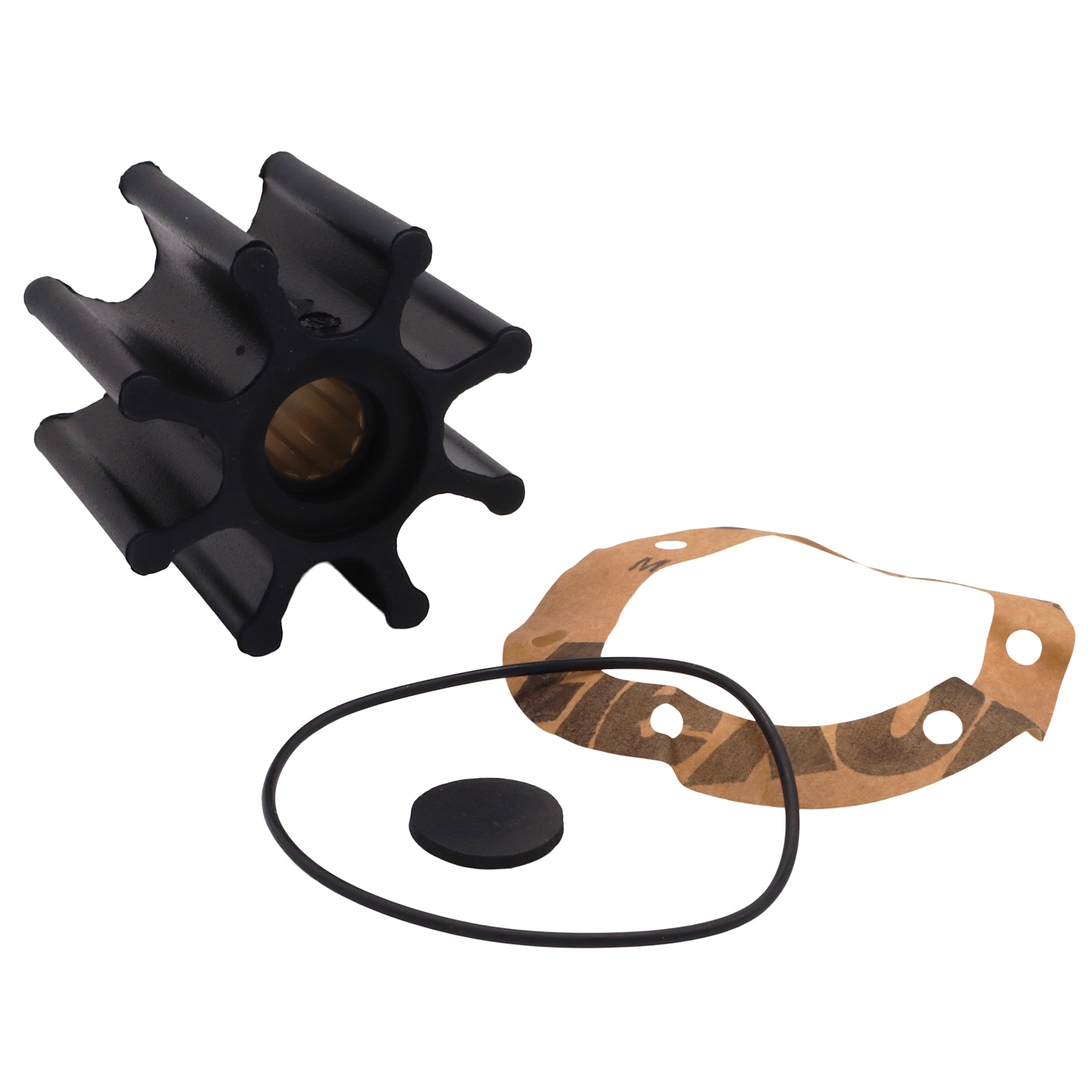

•    Supplied with: gasket and cap

Compatible Jabsco pump models (selected)

8170 · 8170-9001 · 17050-0001 · 29630-1101 · 29630-1201 · 9700-01 · 9700-04

Compatible Johnson pump models

F7B-9 · F7B-5007 · F7B-8007 · F7B-3007 · F7B-50017

Typical engine applications

•    Yanmar: 4LH-STE/DTE/HTE, 4LHA-STE/DTE/HTE/STP/HTP, 4BY150/180, 6BY220/260
•    Perkins: 6.354 / 6354 / Full Cam series / Perkins Sabre 34449
•    Ford Lehman: 920 series
•    Gray Marine: 74306 / 74340
•    MAN marine diesel: 50.06506-0091
•    AIFO inboard (8108228)
•    Solé Diesel: 34711008 series
•    Volvo Penta: 801277 / 825941 / 877061 / 875593 / 21951356
•    Cummins marine diesel: 650607
•    Caterpillar: 425-5412 / 3N1906
•    Detroit Diesel: 353 / 453 / 471 (5193602 / 5196629 / 5199148)
•    Doosan marine diesel (65.06084-0003)
•    Chrysler marine: M46-4 / M47-4
•    Kaishyama: SP-70 / 65.06804-0003
•    Kohler marine: GM50644
•    Onan marine generator (0132-0436)

OEM / cross-reference part numbers

Jabsco 920-0001 / 17937-0001 · Johnson 09-1028B / 09-1028B-1 / 09-1028BT-1 · Sherwood 18200K · Volvo Penta 801277 / 825941 / 877061-2 / 875593 / 3841697 / 21951356 · Yanmar 127610-42200 / 127610-42270 / 120650-42310 · Perkins 24880031 / 460024 · Ford Lehman 920 · AIFO 8108228 · Cummins 650607 · Caterpillar 3N1906 · Detroit Diesel 5193602 · Doosan 65.06084-0003 · Solé Diesel 34711008 · Gray Marine 74306 · MAN 50.06506-0091 · Nikkiso 20CBC · Kaishyama SP-70 · Oberdorfer 7441 · Ancor J050009 · JMP 7400-01 · DJ Pump 001-0801 · CEF 500106 · Sierra 18-3077
