Osculati 16.194.26 Replacement Impeller (CEF 114)

Product Description

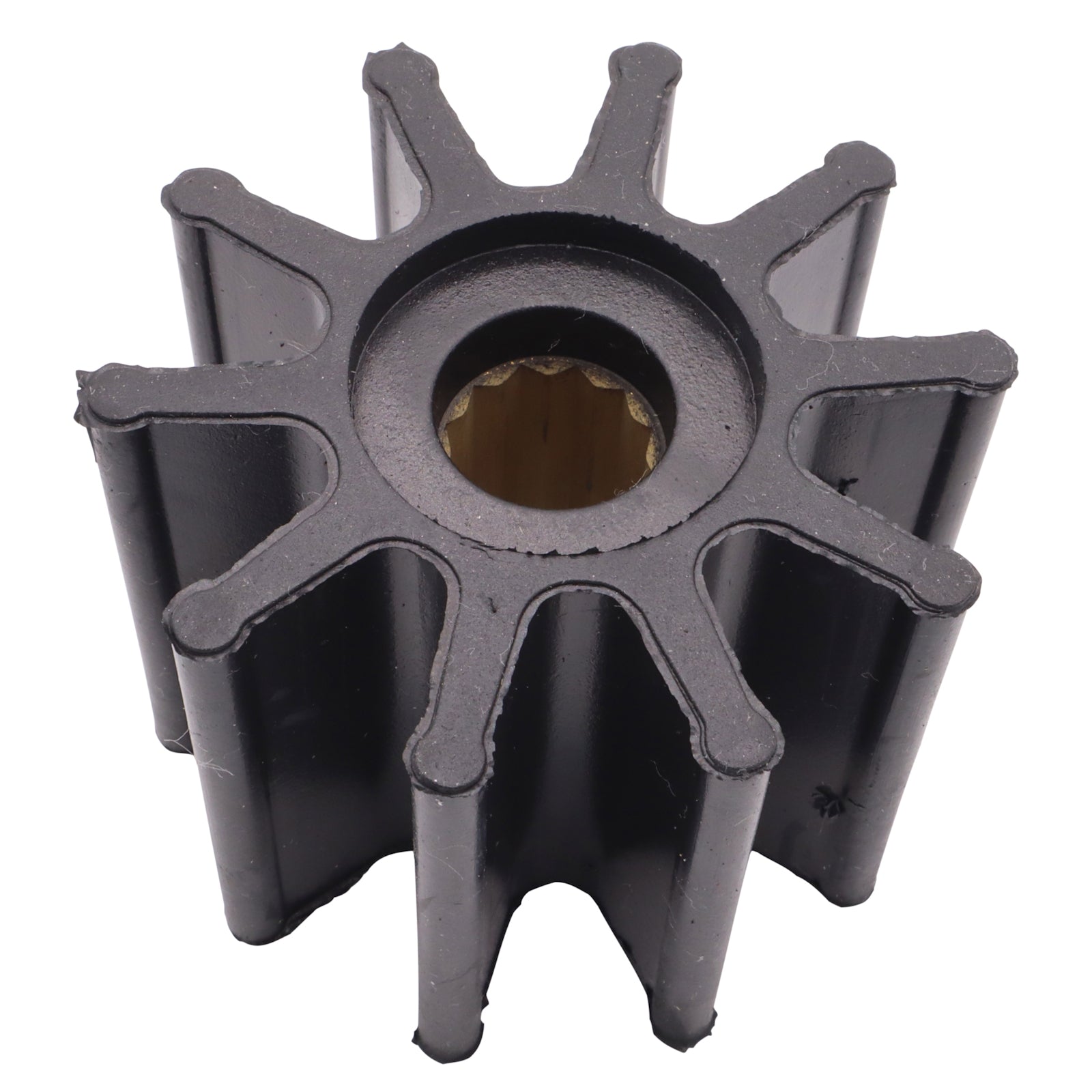

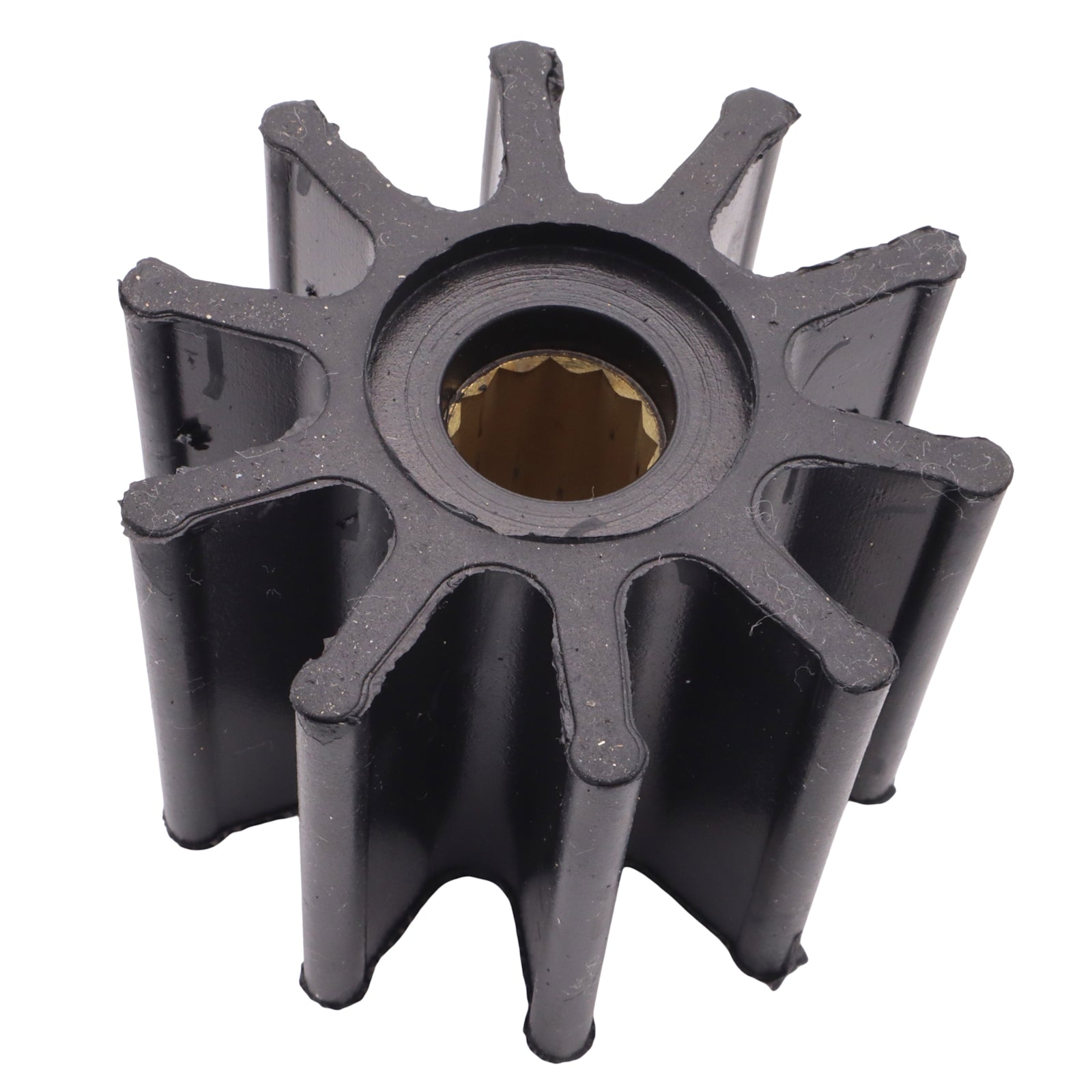

10-blade neoprene impeller for Jabsco raw water pumps as fitted to a wide range of inboard diesels including Detroit Diesel V-series, Volvo Penta MD and TAMD series, Caterpillar 3406/3408, Yanmar and Perkins marine engines. 12-spline drive, 15.8mm shaft. Supplied with cap.

The 10-blade configuration sets this impeller apart from the otherwise visually similar 8-blade CEF 106 (SM-2214 in this range). Both share the same 65mm OD, ~50mm length and 12-spline drive, and a quick glance at the two impellers on a bench can be misleading — blade count is the critical differentiator. Confirm the CEF reference or OEM part number before ordering; fitting the wrong blade count will not necessarily prevent the impeller turning, but it will affect pump performance and may not meet engine manufacturer specification.

The breadth of engine compatibility here spans leisure and commercial applications. The Detroit Diesel 353, 453 and 471 series are classic V-configuration two-stroke engines found in workboats, charter vessels and older commercial craft; the Volvo TAMD and Caterpillar 3406 are widely used in both leisure and working boat contexts. Annual replacement is recommended across all applications regardless of hours run.

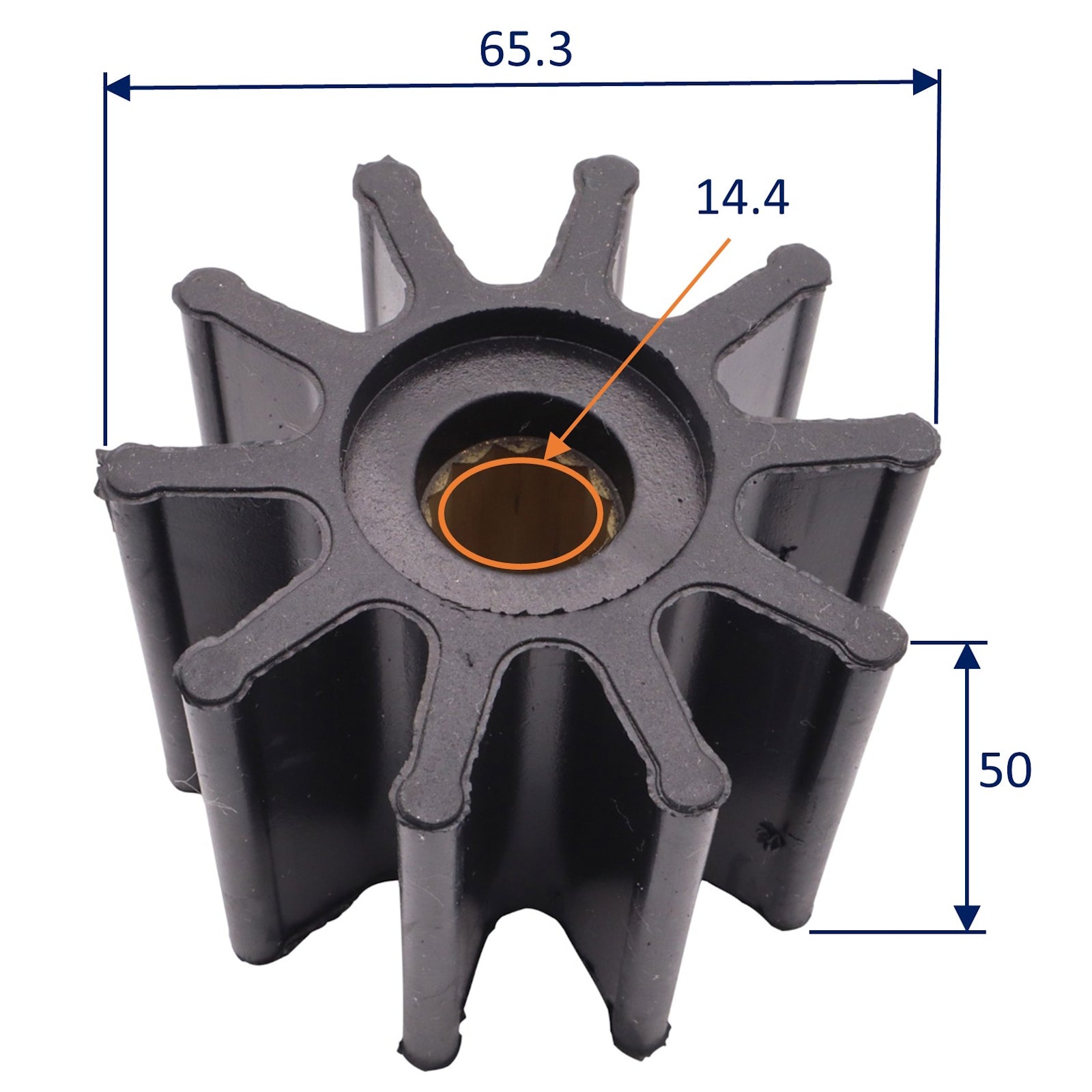

Specifications

•    Outside diameter: 65mm
•    Length: 50.1mm
•    Shaft bore: 14.29/15.8mm (12-spline drive)
•    Blades: 10
•    Material: Neoprene

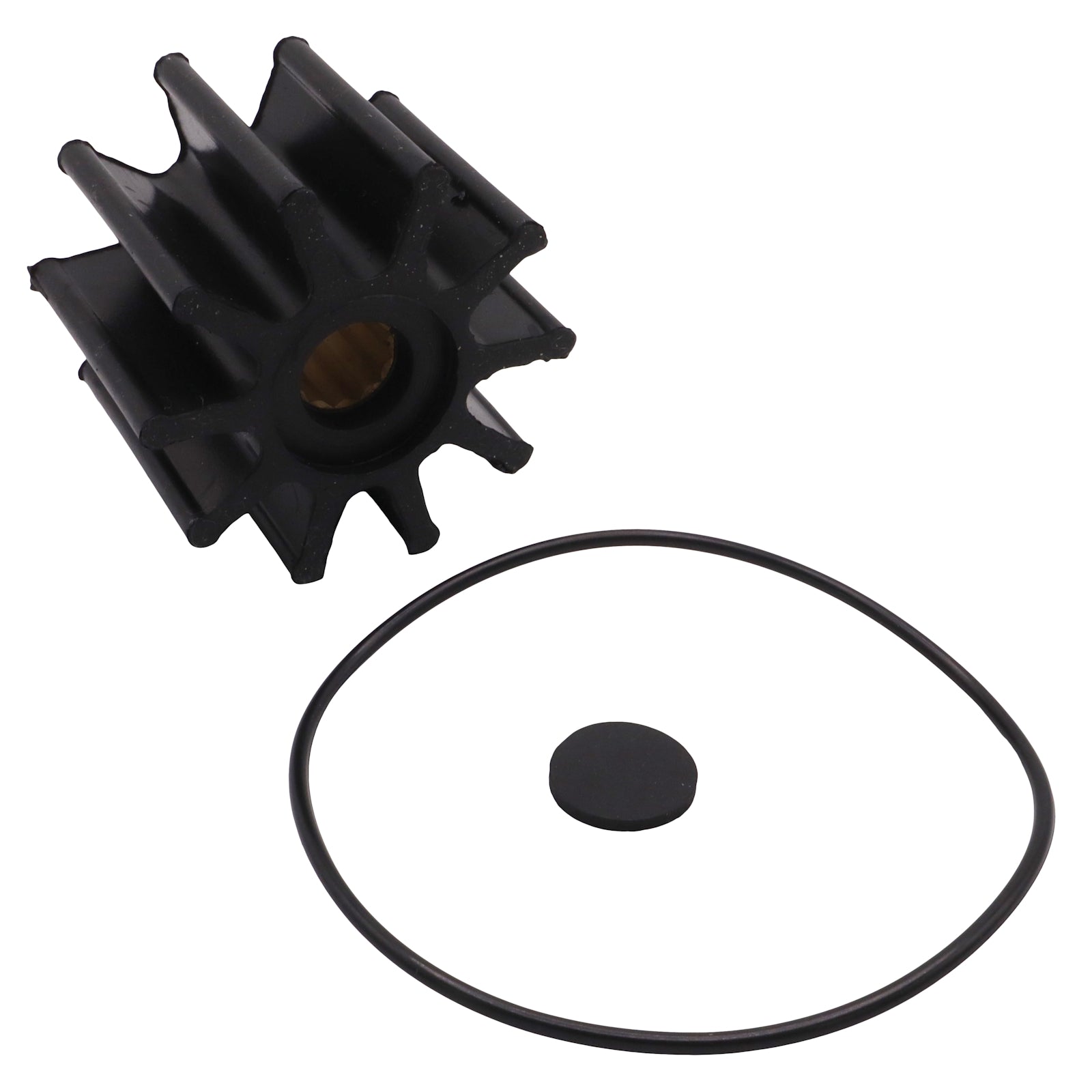

•    Supplied with: cap

Typical engine applications

•    Detroit Diesel: 353, 453, 471 series
•    Volvo Penta: MD / TAMD series (801277, 825941, 877061 references)
•    Caterpillar: 3406 / 3408 series (7C-3286)
•    Yanmar: 127610-42200 series
•    Perkins marine diesels (24880031 / 0460024)
•    Mercruiser diesel (47-8013326-01)
•    Vetus: IMP00301 series

OEM / cross-reference part numbers

Jabsco 17937-0001 / J050009 · Volvo Penta 801277 / 825941 / 877061-2 / 3588475 · Caterpillar 7C-3286 · Detroit Diesel 5193602 · Perkins 0460024 / 24880031 · Mercruiser 47-8013326-01 · Vetus IMP00301 · Oberdorfer 7441 · JMP 7426-01 · CEF 500114
