Replacement Gas Strut / Gas Spring – Osculati – Marine-Grade Stainless Steel – 8mm Plain End Bearings - 900mm – 75kg (750N)

Product Description

Replacement marine-grade gas strut made by Osculati.  900mm extended length, 380mm stroke, 75kg nominal force.

These gas struts (or gas springs) are made from 316-grade stainless steel, so great for boat engine covers, hatches and storage locker lids.  These gas springs act in compression, with the compressed gas inside acting to push the rod out to its extended length.  The movement of the gas strut is damped, so it will move out progressively rather than suddenly.

Gas struts are used to assist in lifting heavy items like engine covers and hatch covers.  Choosing the most suitable gas strut involves considering its length, stroke and force, as well as the geometry of its attachment points, relative to the hinge of the cover or door.
If you are choosing a gas strut for a new installation, we also have a range of attachment brackets to suit.

For help and assistance in choosing a suitable gas strut, please first take a look at our gas strut guide.  Also please feel free to get in contact with us if you would like help with your selection.

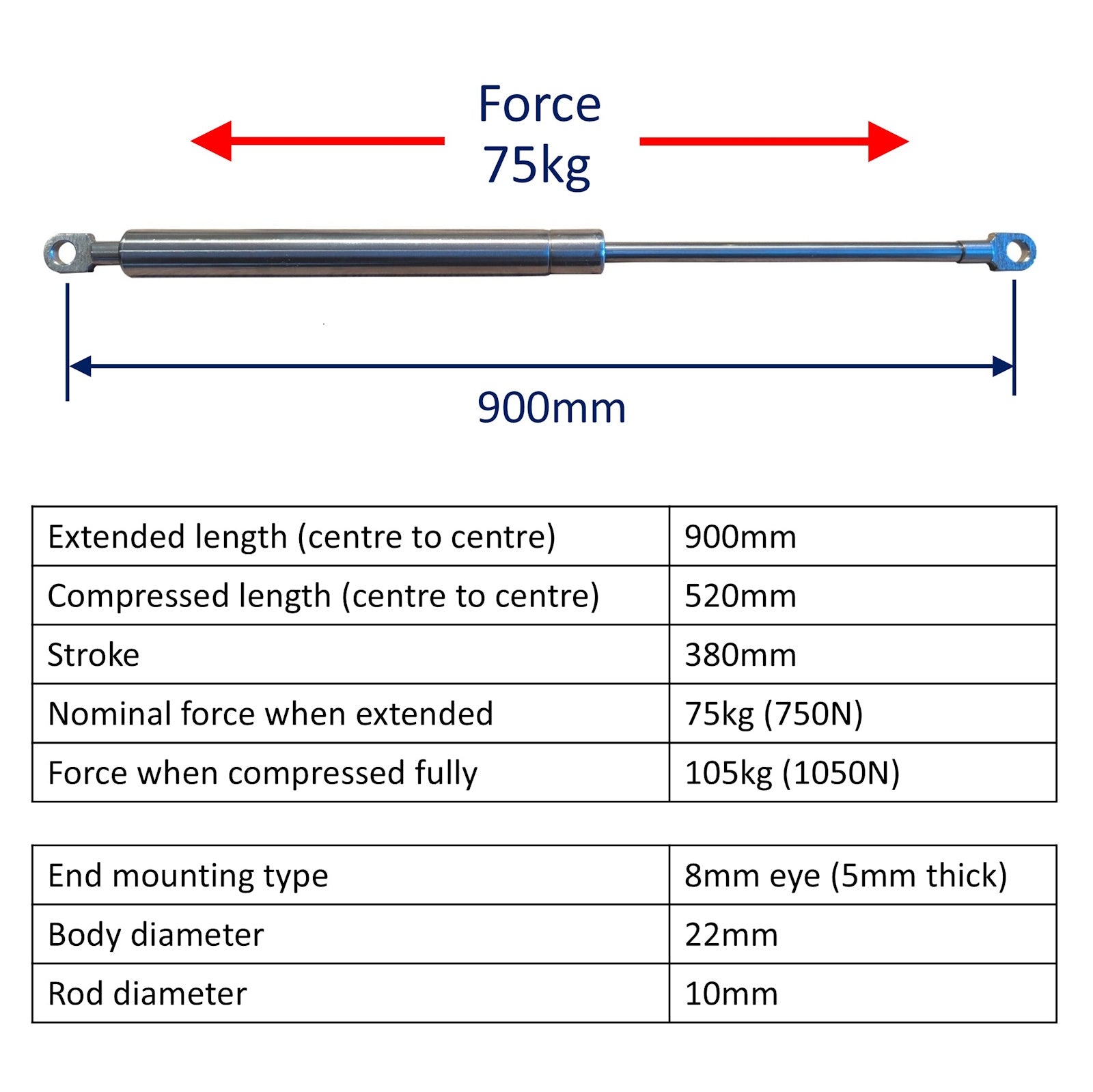

•    Marine-grade stainless steel gas strut
•    8mm diameter plain bearing ends
•    Body diameter 22mm
•    Rod diameter 10mm
•    Extended length: 900mm (centre to centre)
•    Compressed length: 520mm (centre to centre)
•    Stroke 380mm
•    Nominal force when extended 75kg (750N)
•    Nominal force when fully compressed 105kg (1050N)
