Osculati 16.194.05 Replacement Impeller Kit (CEF 107)

Product Description

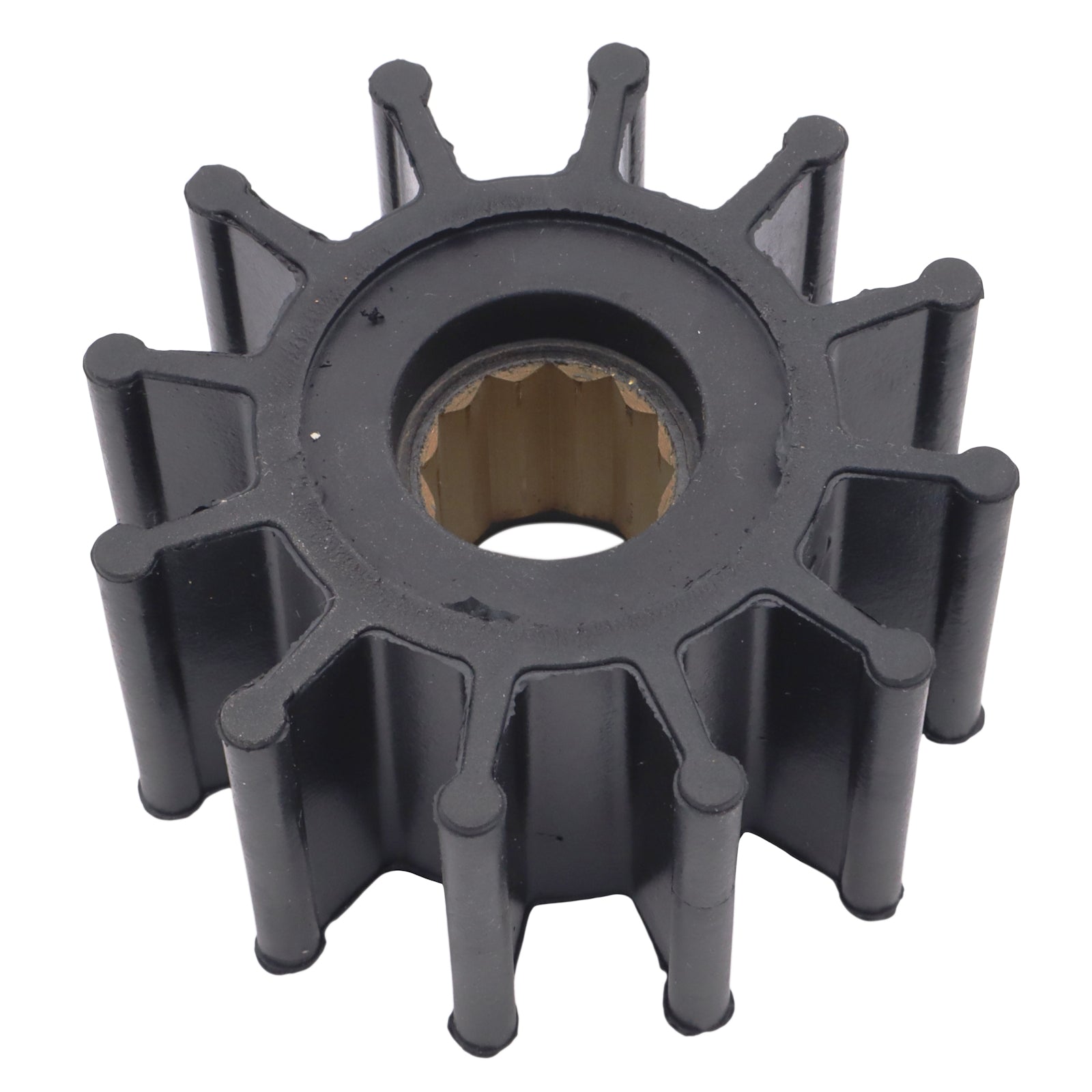

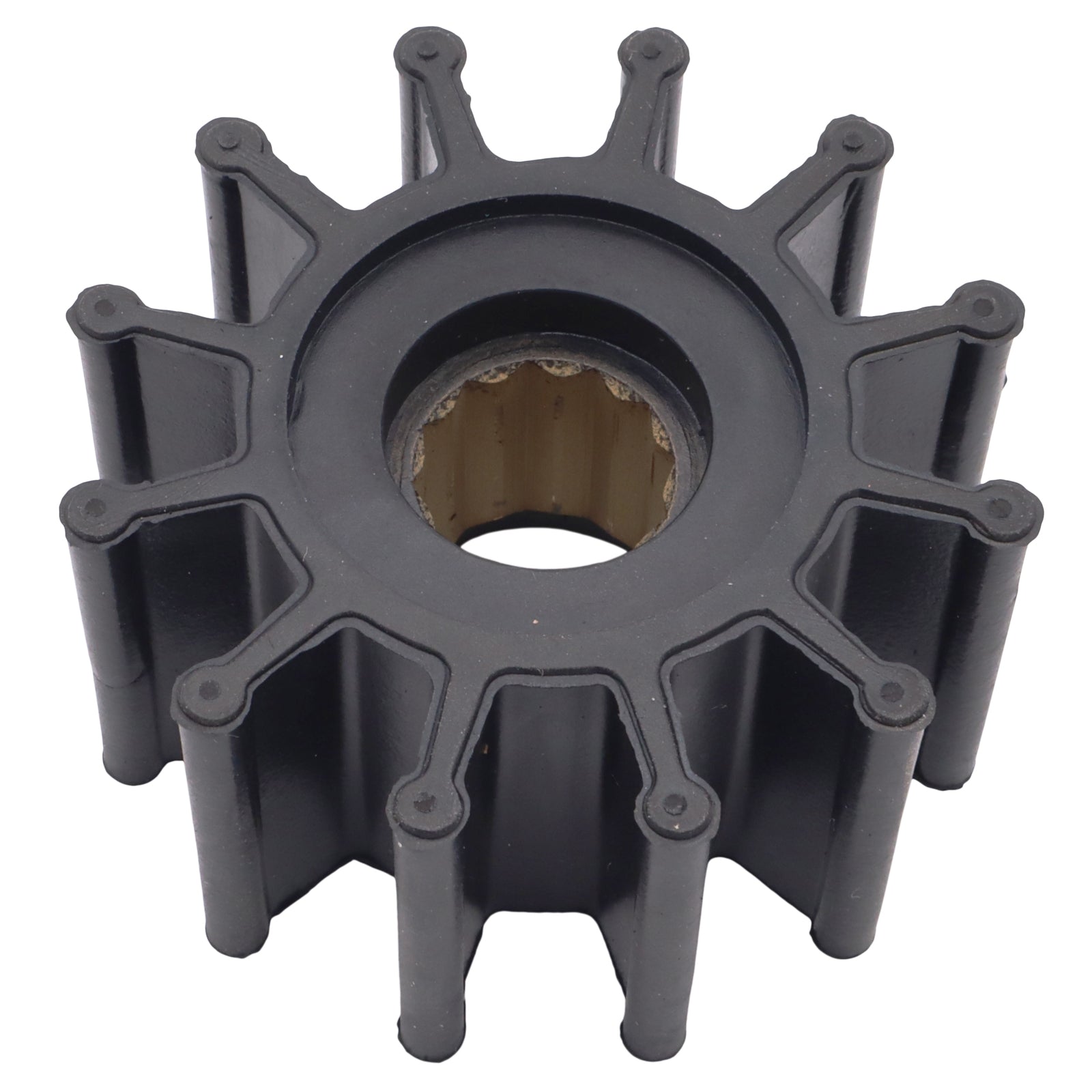

12-blade neoprene impeller kit for Jabsco raw water pumps as fitted to Yanmar 3JH and 4JH series diesel engines, Volvo Penta D2-50 through D2-75 series, Perkins 4107 and 4108 marine diesels, Northern Lights generators, Westerbeke, Nanni diesel and Ford Lehman 150 Turbo applications. 12-spline drive, 14.29mm shaft. Supplied with gasket and cap.

The Jabsco 1210-0001 is one of the most widely fitted impellers in the leisure sailing market. The Yanmar 4JH series — spanning from the 45hp 4JH3 through to the 110hp 4JH5 — is the dominant auxiliary diesel across a very large proportion of sailing yachts built in the last three decades, and the Volvo Penta D2-55 and D2-75 have become the default choice for new sailing yacht installations across Europe over the past ten years. Between them, these two engine families account for an enormous share of the current UK sailing yacht fleet. If you are servicing a sailing yacht auxiliary diesel and do not already know your impeller part number, this and SM-2214 are the first two references to check.

Cross-note — SM-2211 (CEF 108): SM-2211 is visually identical to SM-2215 and shares the same 57mm OD and 31.6mm length, but uses a different spline shaft profile (15.93mm shaft versus 14.29mm for this part). The two are not interchangeable. Check the Jabsco reference — 1210-0001 for this part, 4568-0001 for SM-2211 — rather than relying on external measurements alone.

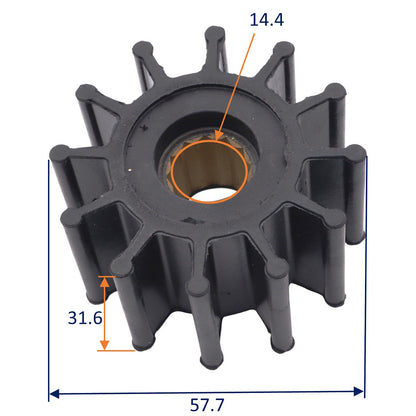

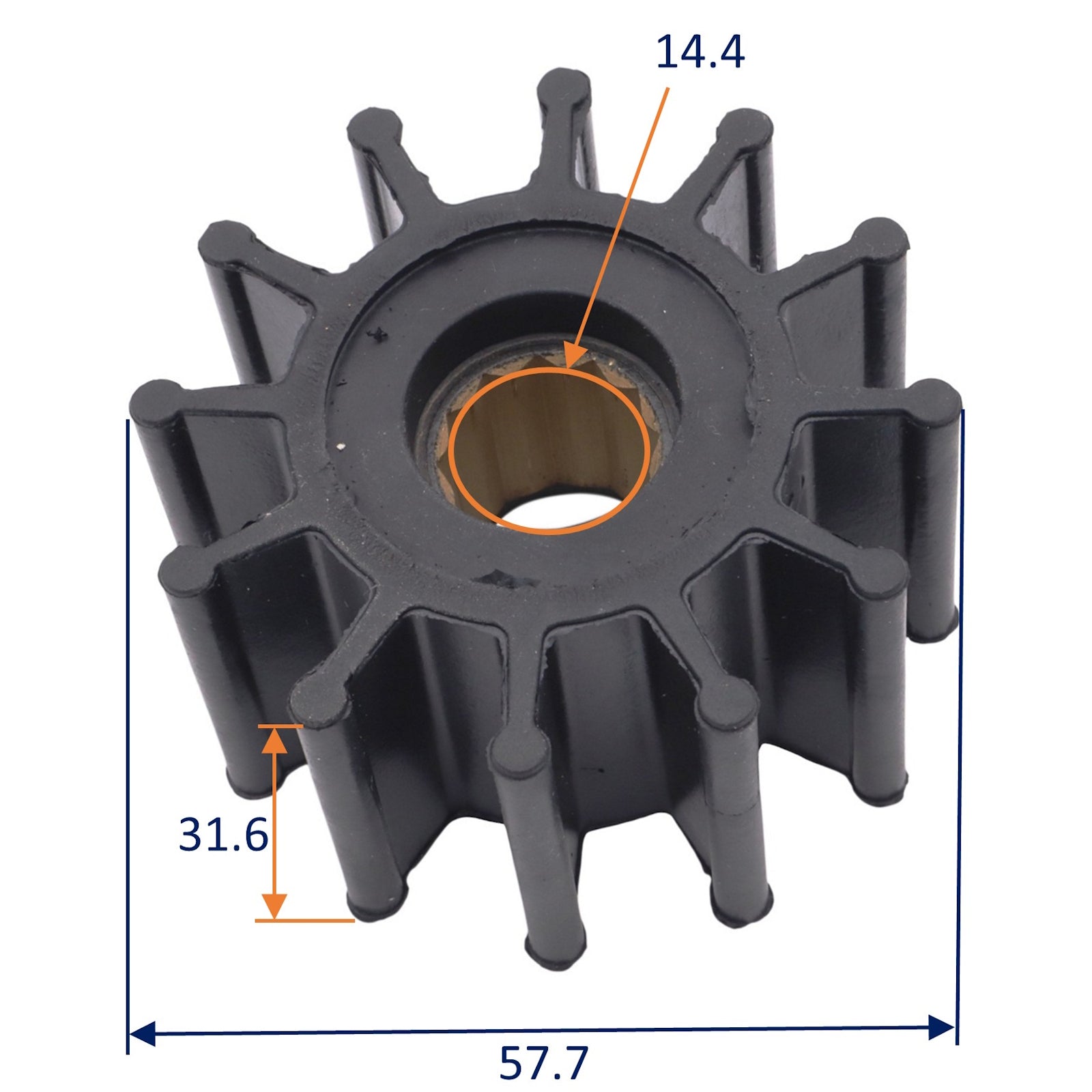

Specifications

•    Outside diameter: 57mm
•    Length: 31.6mm
•    Shaft bore: 14.29mm (12-spline drive, Profile K)
•    Blades: 12
•    Material: Neoprene

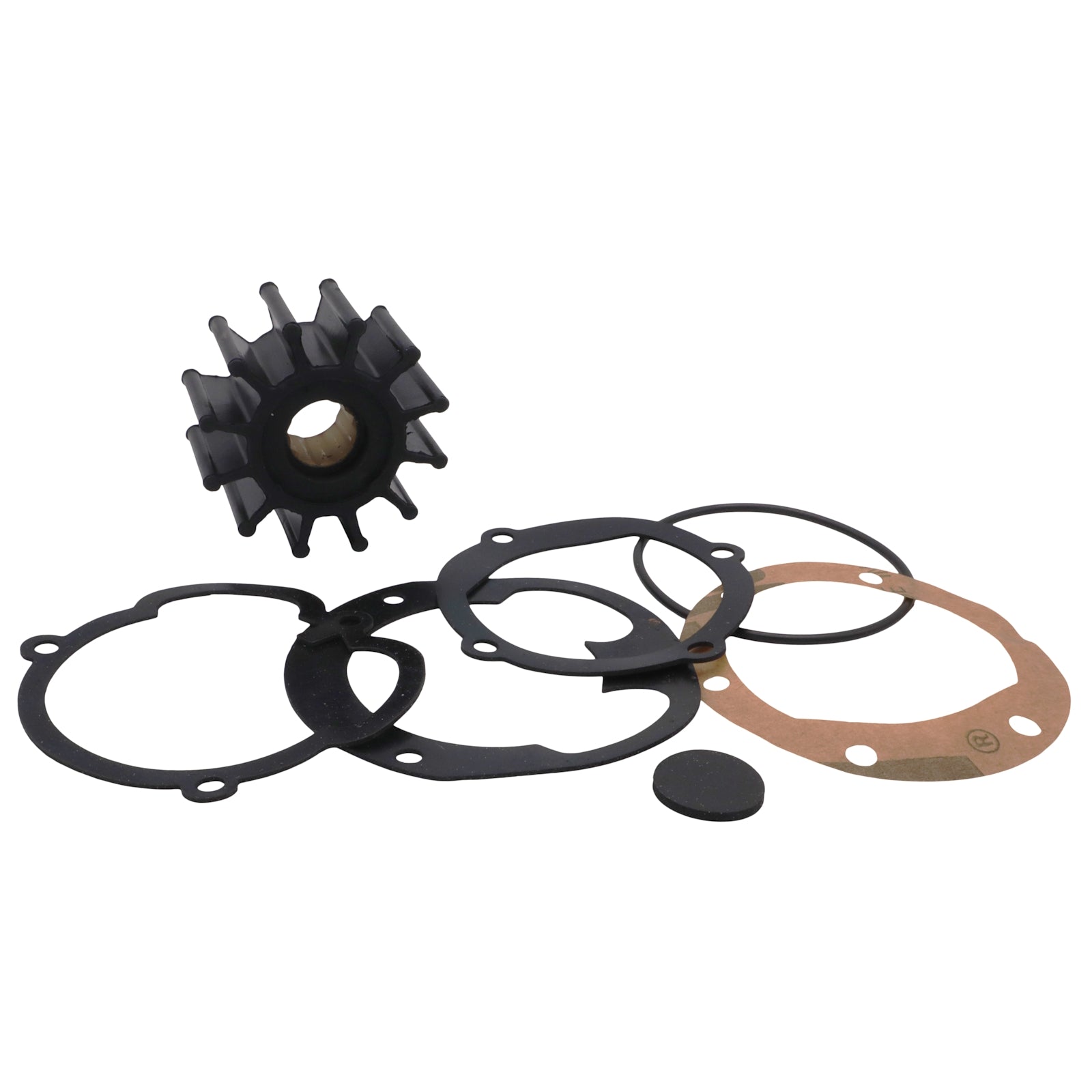

•    Supplied with: gasket and cap

Typical engine and generator applications

•    Yanmar 3JH series: 3JH3E, 3JH3CE, 3JH4E, 3JH5E
•    Yanmar 4JH series: 4JH3-TE/DTE/HTE, 4JH4-TE/HTE/AE, 4JH4E, 4JH5E, 4JH45, 4JH57, 4JH80, 4JH110, and all intermediate 4JH variants
•    Volvo Penta: D2-50F, D2-55A/B/C/D/E/F, D2-60F, D2-75, D2-75A/B/C/F, 2003T, 2003TB
•    Perkins: 4107 / 4108 / 4154 / 6354 series
•    Nanni diesel: 970604530 series (Yanmar-based)
•    Northern Lights generators: 12-12060 / 25-12060 series
•    Westerbeke (302571)
•    Ford Lehman 150 Turbo
•    Onan marine generator: MDJF 15kW (132-0162)
•    Caterpillar: 232-3198 (4.154 series)
•    Detroit Diesel: 5194205

OEM / cross-reference part numbers

Jabsco 1210-0001 / 3085-0001 · Johnson 09-1027B / 09-1027B-1 / 09-1027BT-1 · Yanmar 129470-42530 / 129470-42531 / 129470-42532 / 129670-42530 / 129670-42531 · Volvo Penta 825940 / 860203 / 875811-2 / 876243 / 3856039 / 3858256 / 3862281 / 21951346 · Perkins 0460038 / 24880190 · Westerbeke 302571 · Northern Lights 25-12060 · Onan 132-0162 · Caterpillar 232-3198 · Sole Diesel 35111008 · Vetus IMP00201 · Nikkiso F15CBC · Kaishyama SP-30 · Ancor J050007 · JMP 7100-01 · DJ Pump 08-21-1201 · CEF 500107 · Sierra 18-3081
