Osculati 16.194.09 Replacement Impeller Kit (CEF 108)

Product Description

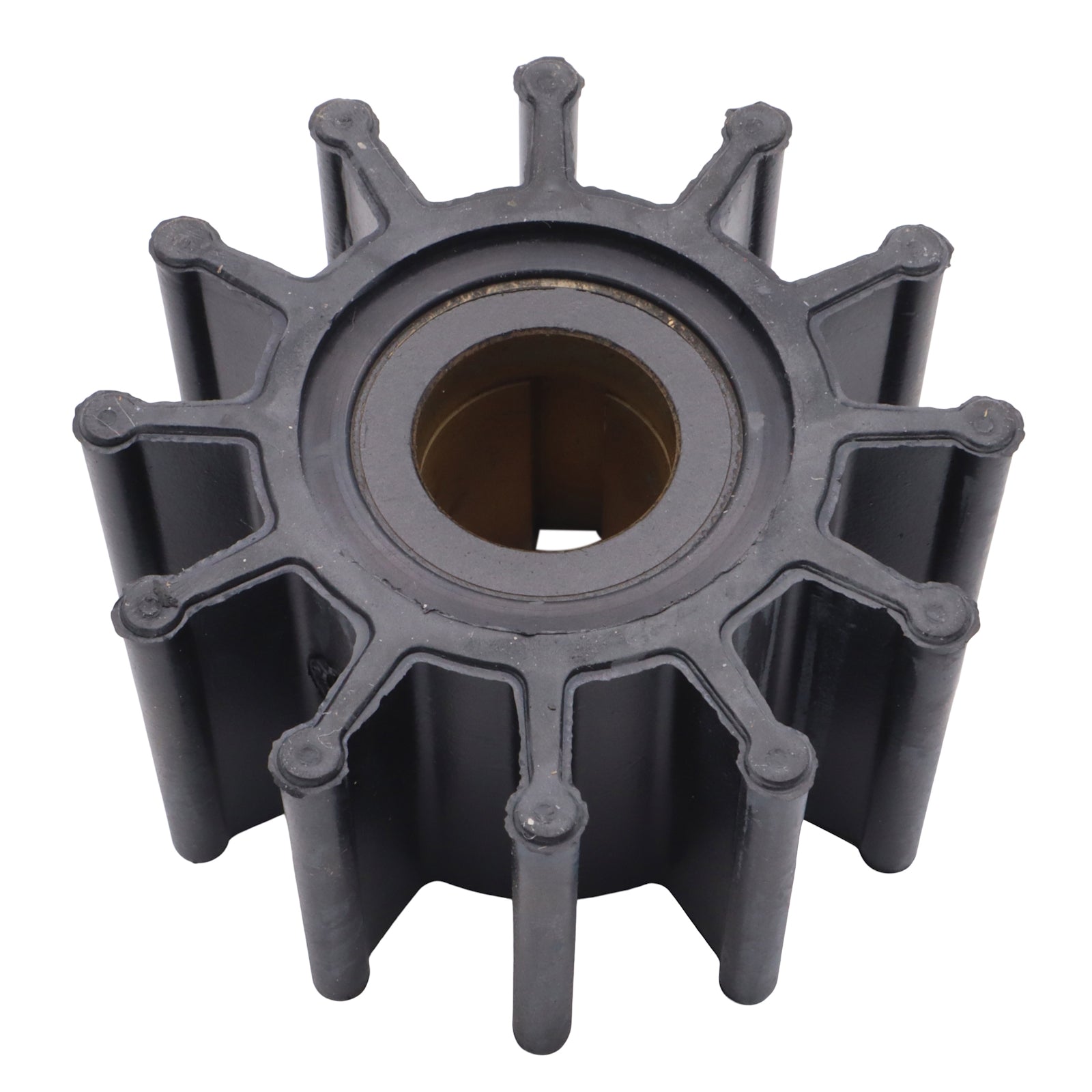

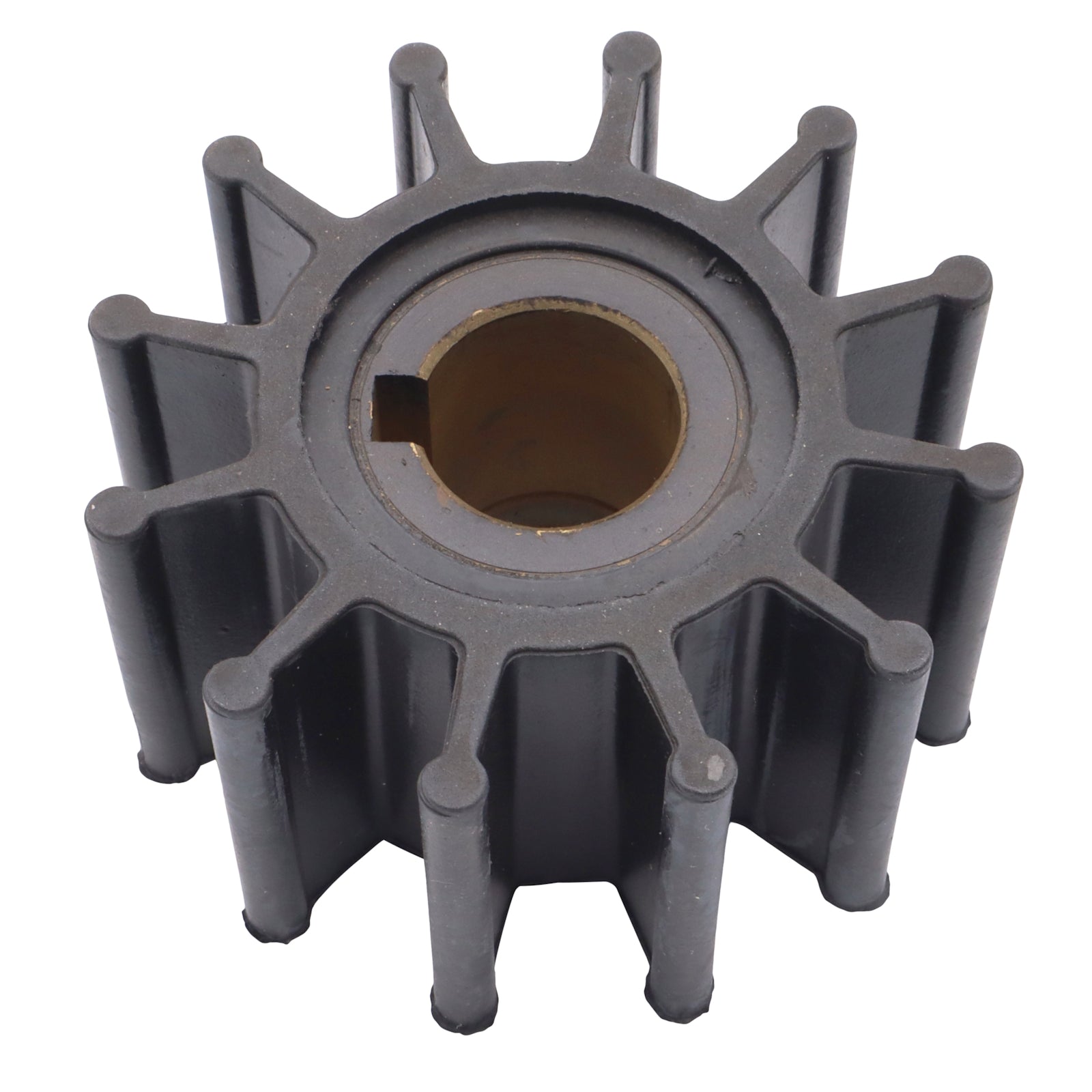

12-blade neoprene impeller kit for the Johnson F5B raw water pump, as fitted to Yanmar diesel engines, classic Volvo Penta AQ and MD petrol and diesel series, and Kubota-based Phasor Marine diesel generators. Keyed drive, 5/8" shaft. Supplied complete with gasket, cap and shaft key.

The inclusion of the shaft key (CGT kit) distinguishes this listing from most others in the range — where the vast majority of impeller kits include only the impeller and perhaps a gasket, this one includes the drive key as a matter of course. Keys are easily lost or damaged during removal and having a replacement supplied with the impeller removes an otherwise irritating delay mid-service.

The Johnson F5B is the pump that connects these otherwise quite different applications. Classic Volvo Penta AQ-series stern drive engines from the AQ115 through to the AQ171 — a huge installed base of leisure craft from the 1960s through to the late 1980s — used this pump, as did the MD21 diesel and related AQD and BB series. Yanmar diesel engines referencing 145410-46090 or 124310-46090 use the same impeller via the same pump family, as do Kubota-engined Phasor Marine generator sets.

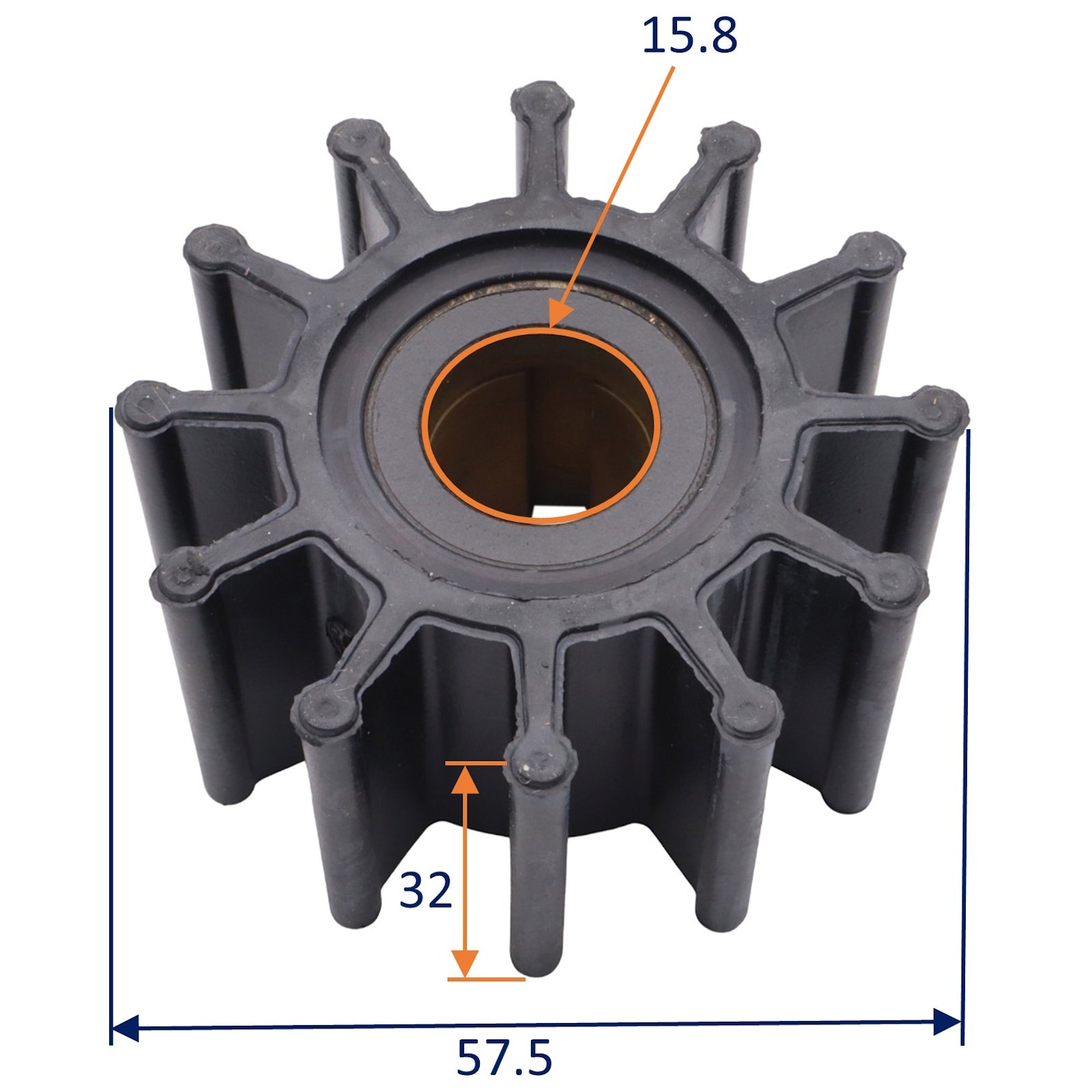

Specifications

•    Outside diameter: 57mm
•    Length: 31.6mm
•    Shaft bore: 15.9mm (⅝" keyed drive)
•    Blades: 12
•    Material: Neoprene

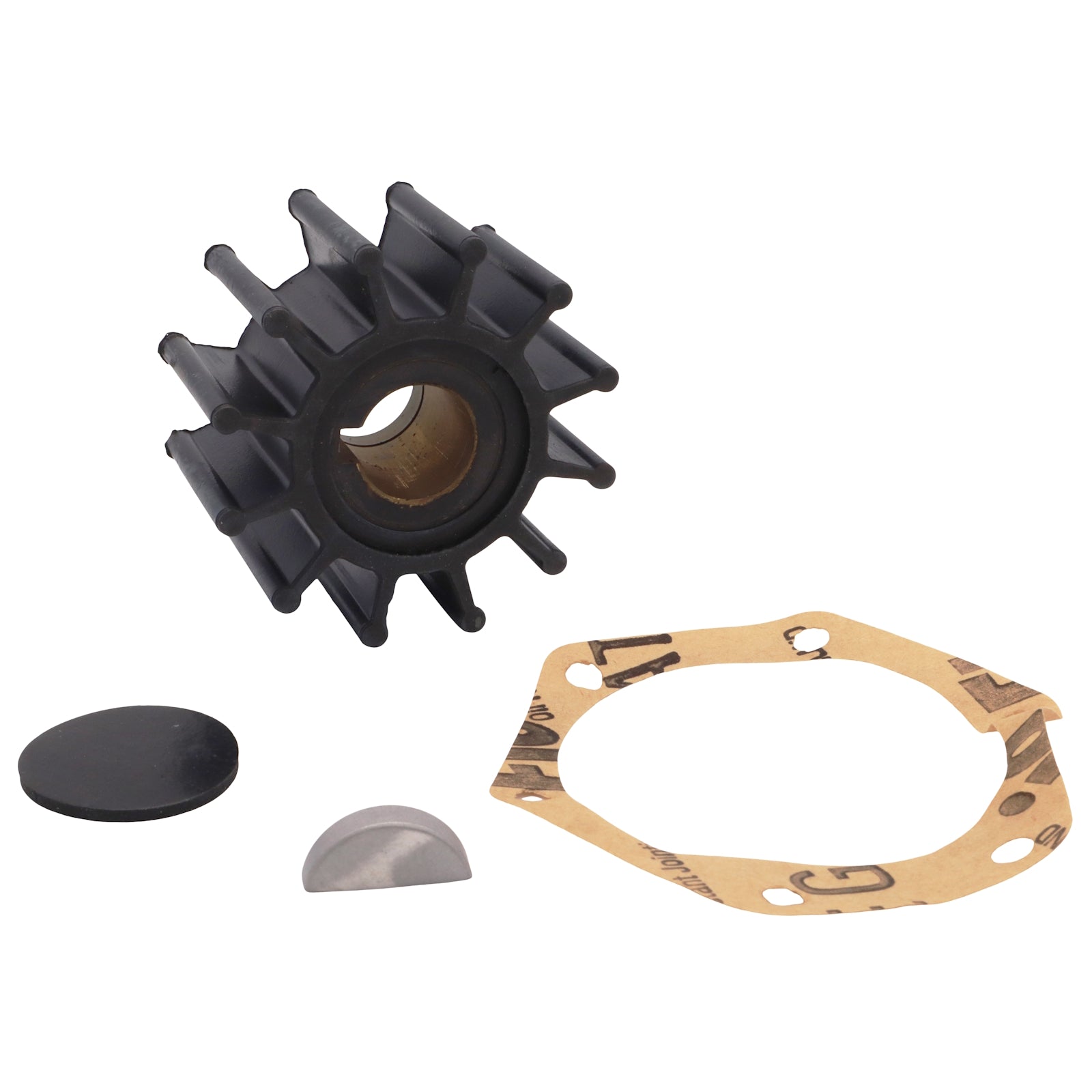

•    Supplied with: gasket, cap and shaft key (CGT kit)

Typical engine and generator applications

•    Yanmar inboard diesel: 145410-46090 / 124310-46090 series (4JH / 3JH)
•    Volvo Penta petrol AQ series: AQ115, AQ120, AQ125, AQ130, AQ131, AQ140, AQ145, AQ151, AQ165, AQ170, AQ171 and BB / MB variants
•    Volvo Penta diesel: MD21 / AQD21
•    Kubota marine diesel: D1703-BGE, F2803-BGE, V1903-BGE, V2203 (Phasor Marine generator applications)
•    Phasor Marine diesel generators

OEM / cross-reference part numbers

Jabsco 4568-0001 / 1427-0003 / 2877-0001 · Johnson 09-801B / 09-801B-1 · Yanmar 124310-46090 / 145410-46090 · Volvo Penta 875575-3 / 831182 / 835182 / 875573 / 21951350 · Oberdorfer 6620 · DJ Pump 08-22-1201 · CEF 500108 · Sierra 18-3075 · GLM 89530
