Osculati 16.194.03 Replacement Impeller Kit (CEF 101)

Product Description

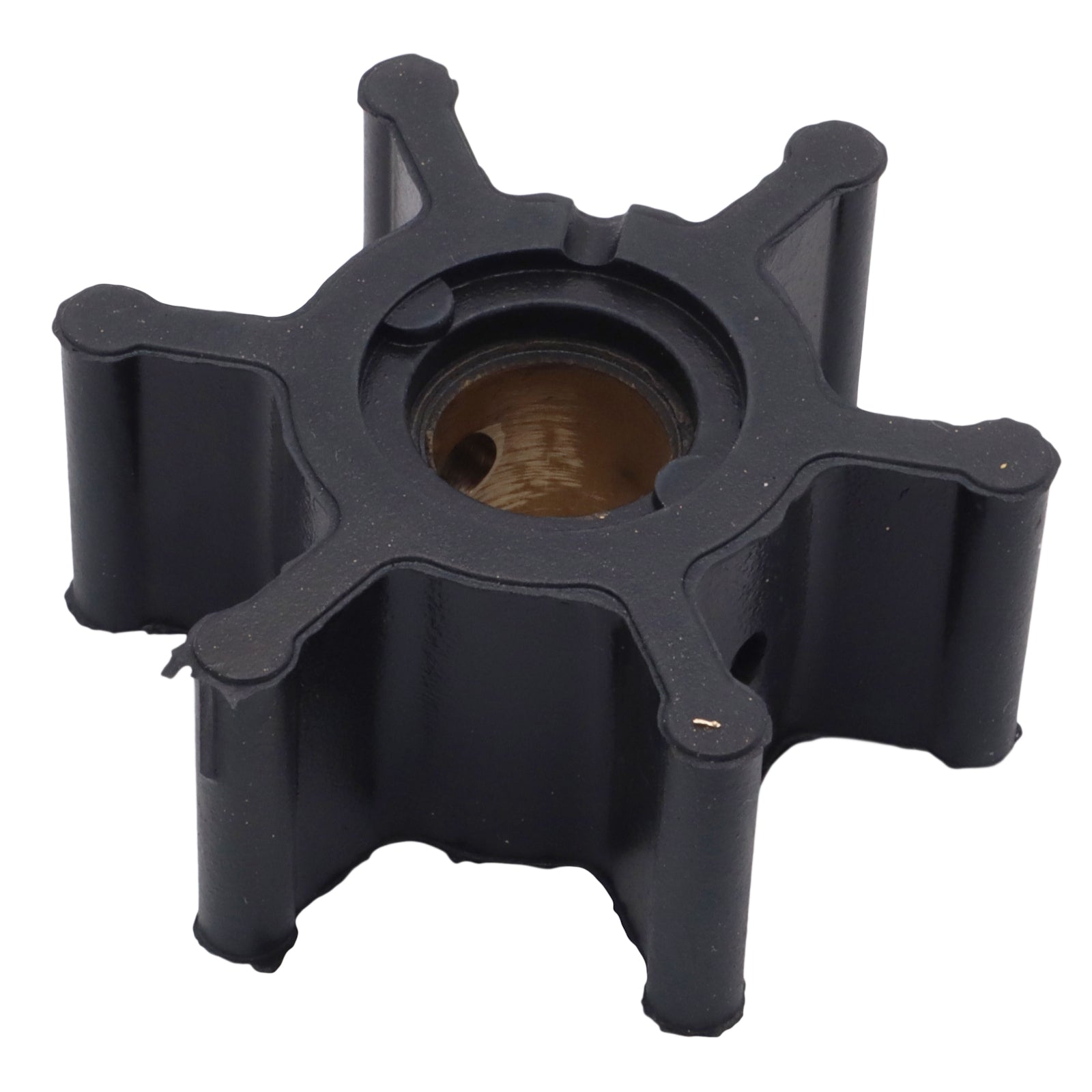

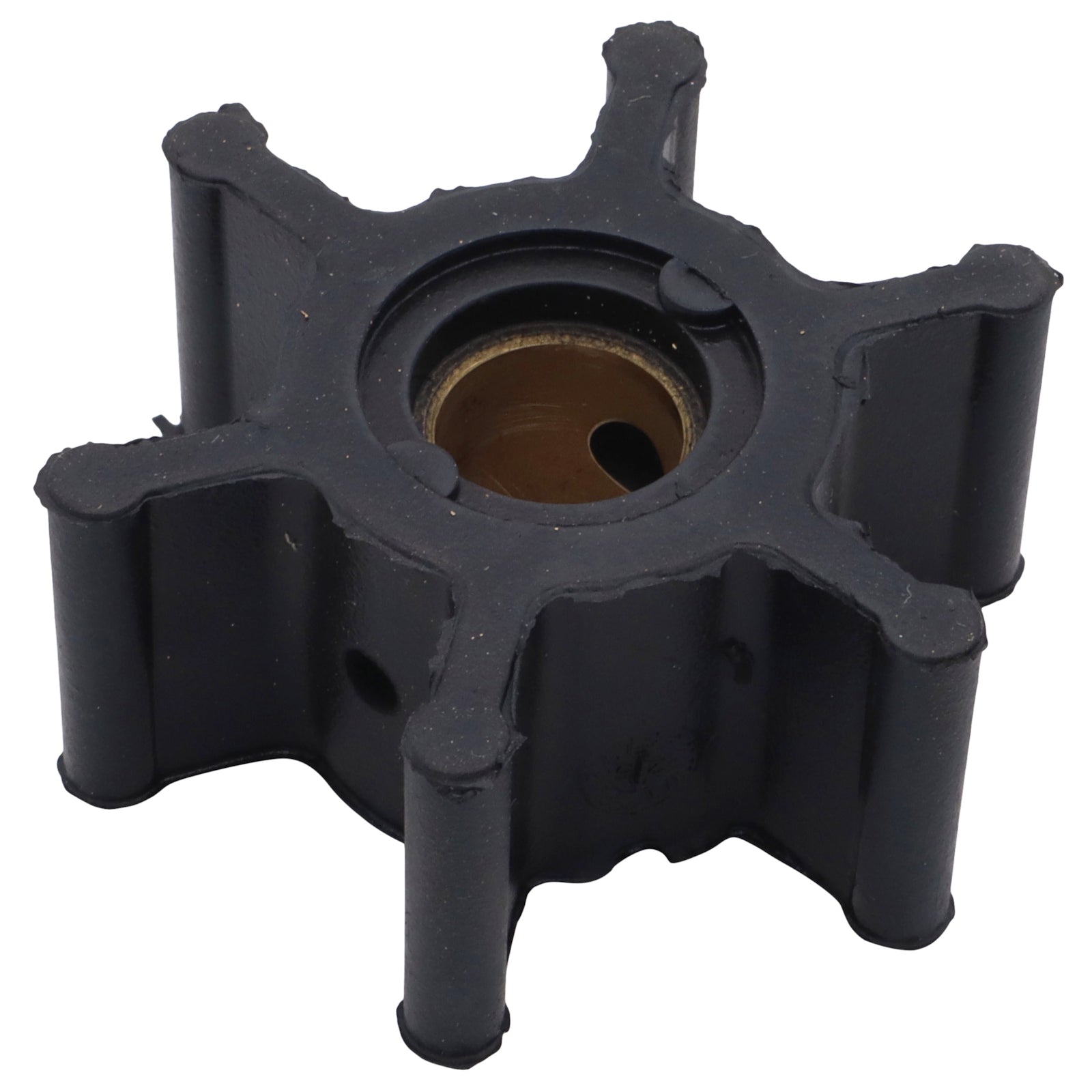

6-blade neoprene impeller kit for Johnson F4B and F5B raw water pumps as fitted to Yanmar Y-series compact diesel engines, European-built Yanmar 2GM and 3GM series, Vetus compact inboard engines, Westerbeke, Nanni diesel and Lombardini marine diesels. Pin drive, 12mm shaft. Supplied with gasket and retaining nut.

Cross-note — Yanmar 2GM20F and 3GM30F European-built models: in the description for SM-2210 (Jabsco 22799-0001) it is noted that the European-built 2GM20F and 3GM30F — identifiable by a serial number beginning with E — do not take the same impeller as the Japanese-built versions. SM-2217 is the correct impeller for those European-built engines. If you own a Yanmar 2GM or 3GM built from 1997 onwards and your serial number starts with E, this is the part you need, not SM-2210.

The Yanmar Y-series (2YM15, 3YM20, 3YM30) are a popular family of compact two and three-cylinder diesels that succeeded the GM series and remain a common choice for sailing yachts in the 15–30hp bracket. All three use this impeller via the Yanmar F4B pump.

Cross-note — SM-2216 (CEF 116, Jabsco 673-0001): SM-2216 is superficially identical to SM-2217 in OD, length and blade count, but has a 12.7mm shaft versus 12mm for this part. The two are not interchangeable. Confirm by Jabsco part number — 653-0001 for this part, 673-0001 for SM-2216 — rather than measuring external dimensions.

Specifications

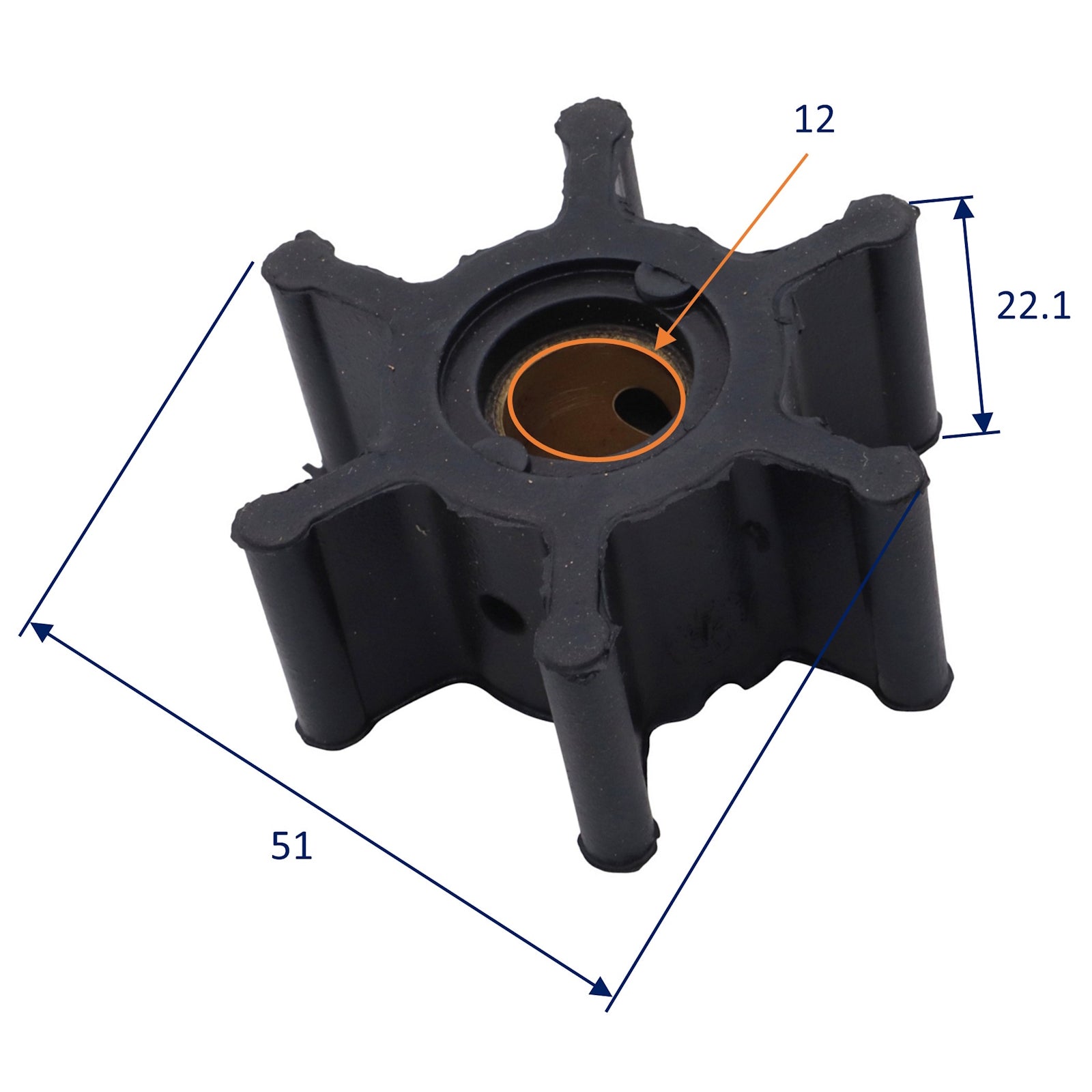

•    Outside diameter: 50.8mm
•    Length: 22mm
•    Shaft bore: 12mm (pin / slotted shaft drive)
•    Blades: 6
•    Material: Neoprene
•    Supplied with: gasket and retaining nut

Compatible pump models

Johnson: F4B, F4B-9, F5B-9 series (F5B-8, F5B-802, F5B-8007, F5B-9001 through F5B-9007)
Yanmar: 128397-42500, 128990-42500, 128990-42510, 128377-42500

Typical engine and generator applications

•    Yanmar 2YM15, 3YM20, 3YM30 (Y-series compact sailing yacht diesels)
•    Yanmar 2GM20F-YEU, 3GM30F-YEU (European-built, E-prefix serial, from 1997)
•    Vetus compact inboard engines (IMP00701 / STM8061 / STM8076)
•    Westerbeke (34440)
•    Nanni diesel (970 307748)
•    Lombardini marine diesel: LDW 502, LDW 602, LDW 702, LDW 903, LDW 1003, LDW 1204, LDW 1404, LDW 1503, LDW 2004, LDW 2204
•    Kohler marine (X08810B)
•    Volvo Penta (876097) — specific older models

OEM / cross-reference part numbers

Jabsco 653-0001 / 653-0001-P · Johnson 09-810B / 09-810B-1 · Yanmar 128990-42200 / 128397-42200 / 128990-42570 · Volvo Penta 876097 · Westerbeke 34440 · Nanni 970 307748 · Vetus IMP00701 / STM8061 · Kohler X08810B · Lombardini 4200204 · Technautic 7403 · JMP 7050-01 · DJ Pump 08-39-0601 · CEF 500101 · Sierra 18-45713
