6-Gang Boat Switch Panel – 12V – With Illuminated Rocker Switches And Replaceable Fuses

Product Description

A 6 switch vertical panel manufactured in black nylon with illuminated rocker switches.  This unit comes with 6 fuse holders and includes 2x 3 Amps, 2x 5 Amps, 1x 8 Amps and 1x 10 Amps (Not suitable for fuses rated over 10A).

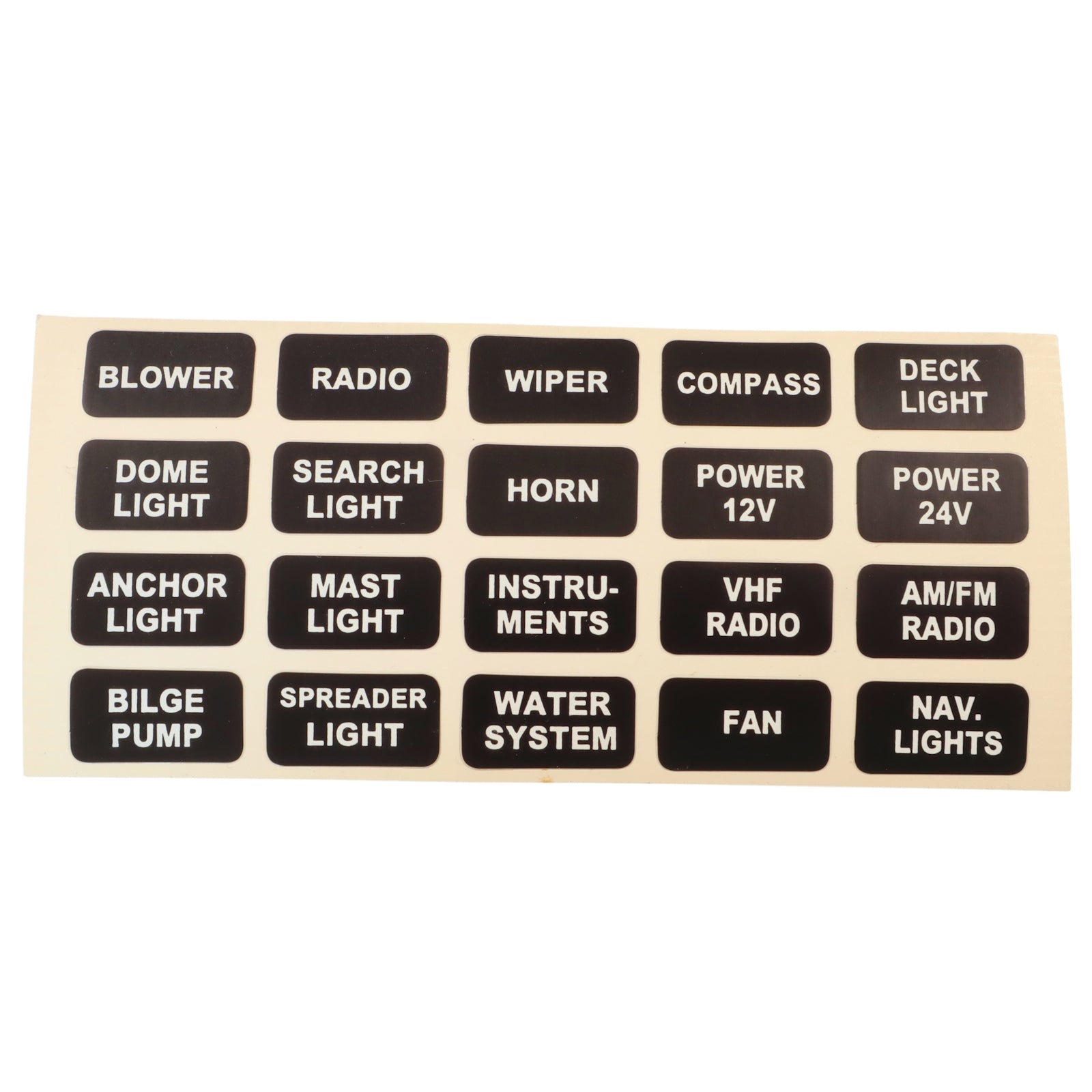

Also included are customised labels to identify each switch use.

Fuses can be easily replaced by unscrewing the fuse holder cap (90-degrees) with a flat-bladed screw driver.

•    6-Gang switch panel
•    12V
•    Injection Moulded Nylon Panel
•    6 Illuminating Switches
•    6 Fuse Holders
•    Includes 6 Fuses, x2 3 Amps, x2 5 Amps, x1 8 Amps, x1 10 Amps
•    Customised Labels

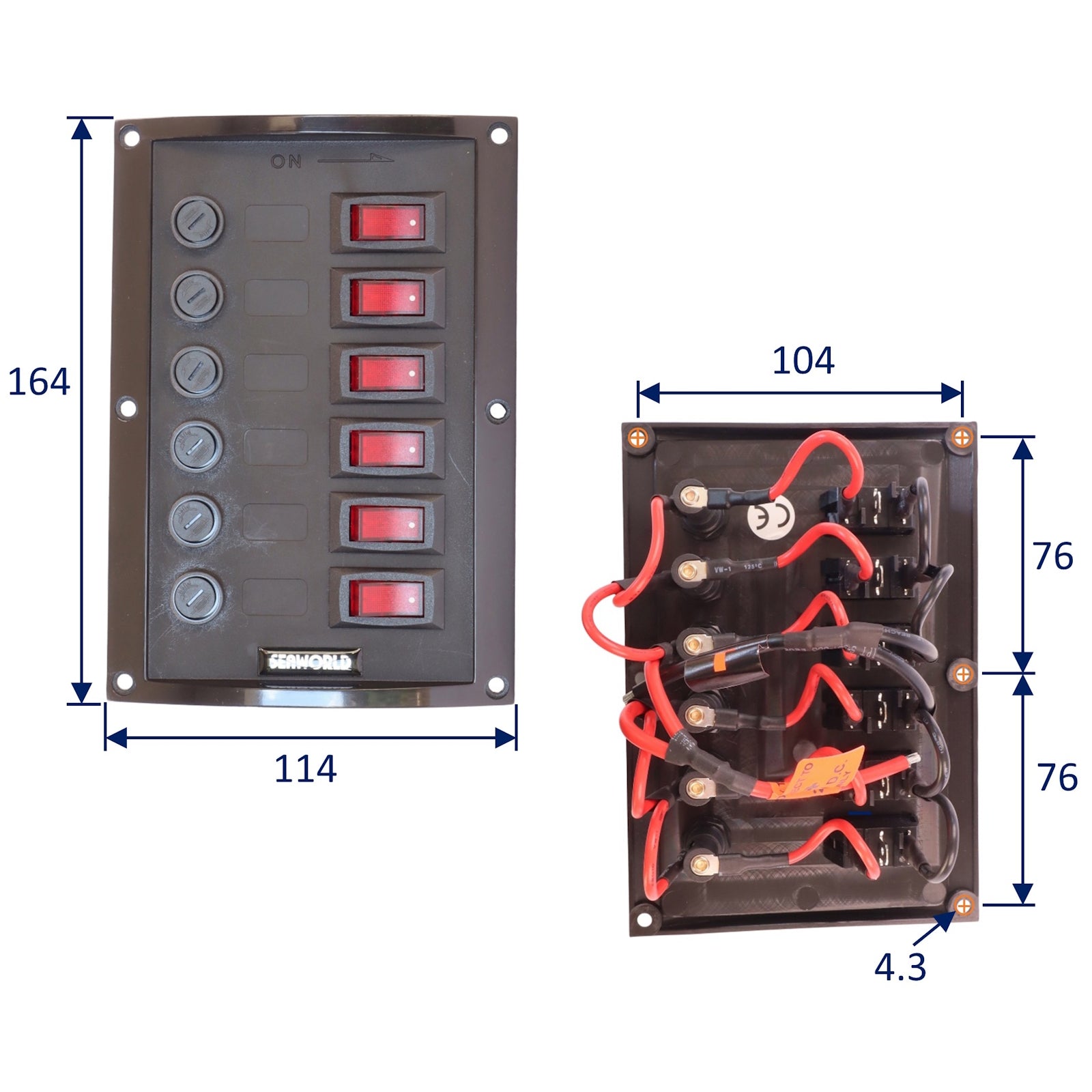

•    Cut out size 140mm x 89mm
•    10 Amps Max. Per Circuit
•    37 Amps Max. Per Panel
