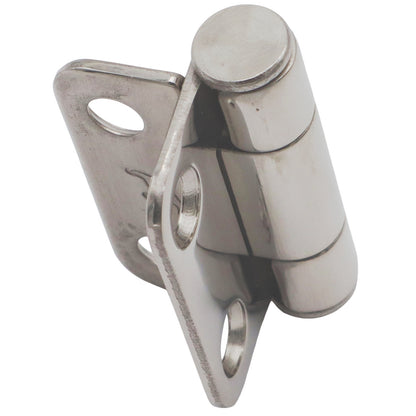

Stainless Steel Holding Hinge – 316 Grade Stainless Friction Hinge With Polished Finish 38x37mm

Product Description

Stainless steel holding hinge, made from 316 stainless steel with a polished finish. Use these holding hinges, with built-in resistance to moving, in cases where you want the door / flap / hatch to stay in position.  Each hinge has a resisting torque (or moment) of 1.5 Nm (+/- 0.4 Nm)  As an example, one of these hinges would nominally support a weight of 1kg (a typical bag of sugar) at a distance of 15cm from the hinge pivot point.

These hinges have a polished finish, and their marine-grade stainless steel makes them ideal for both interior and exterior use.

These hinges come with 4 countersunk fixing holes which are 5.5mm in diameter. Attach these hinges with M5 set screws (if using ‘nut and bolt’) or 4.8mm self tapping screws. For a ‘classic’ look you might want to use our raised slot countersunk set screws.

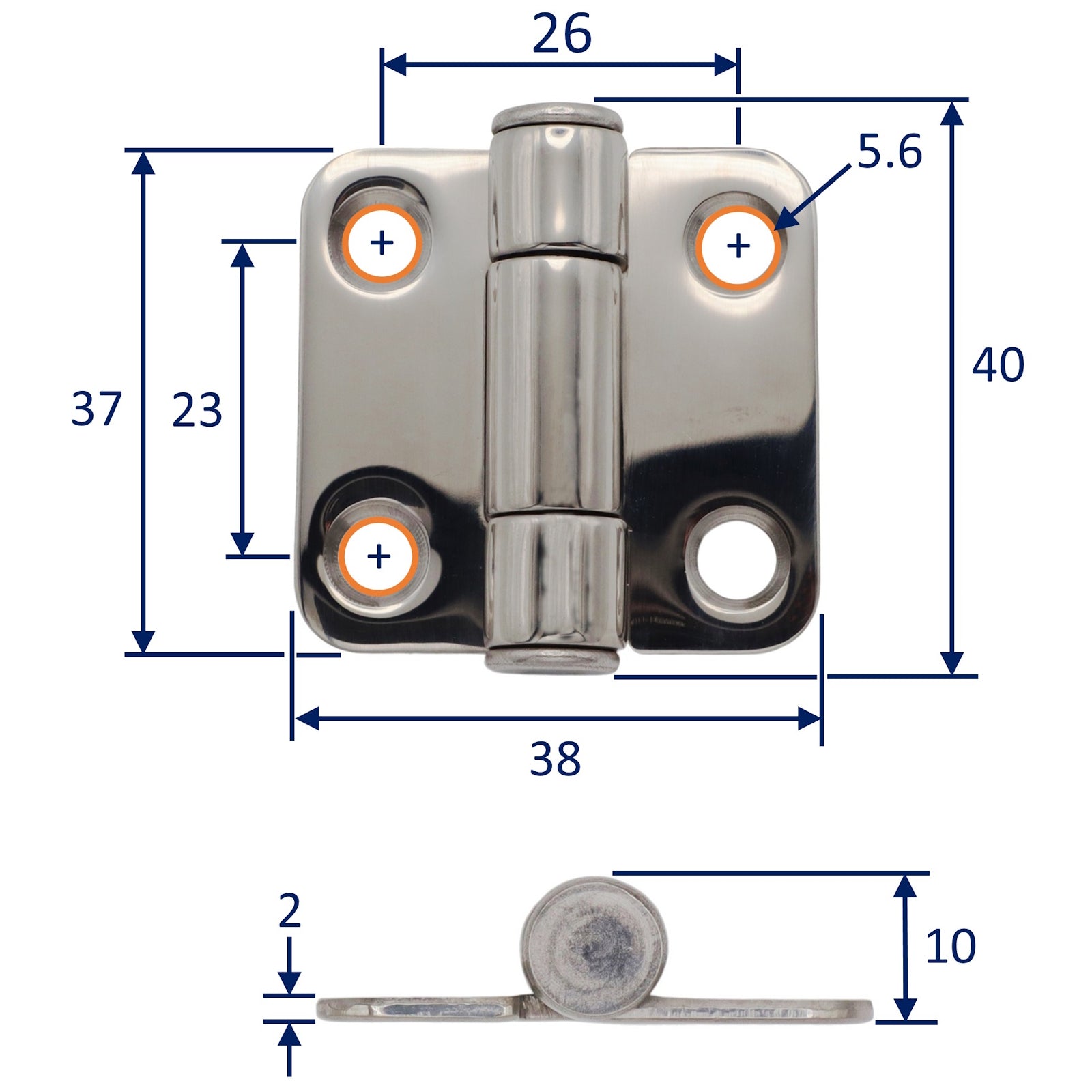

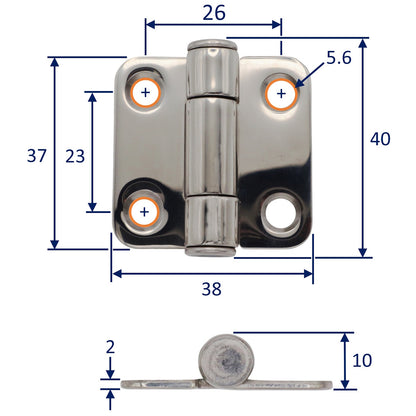

See pictures for detailed dimensions of these hinges.

•    Holding hinge 1.5Nm (+/- 0.4NM)
•    Polished 316 grade stainless steel
•    38mm overall width
•    37mm overall length
•    2mm thickness
•    Use M5 bolts/set screws (nut and bolt fixing)
•    Use 4.8mm self tapping screws into wood
