Stainless Steel Hinge with Snap-Down Cover To Conceal Fixings – 316 Grade Stainless Steel - 42x45mm

Product Description

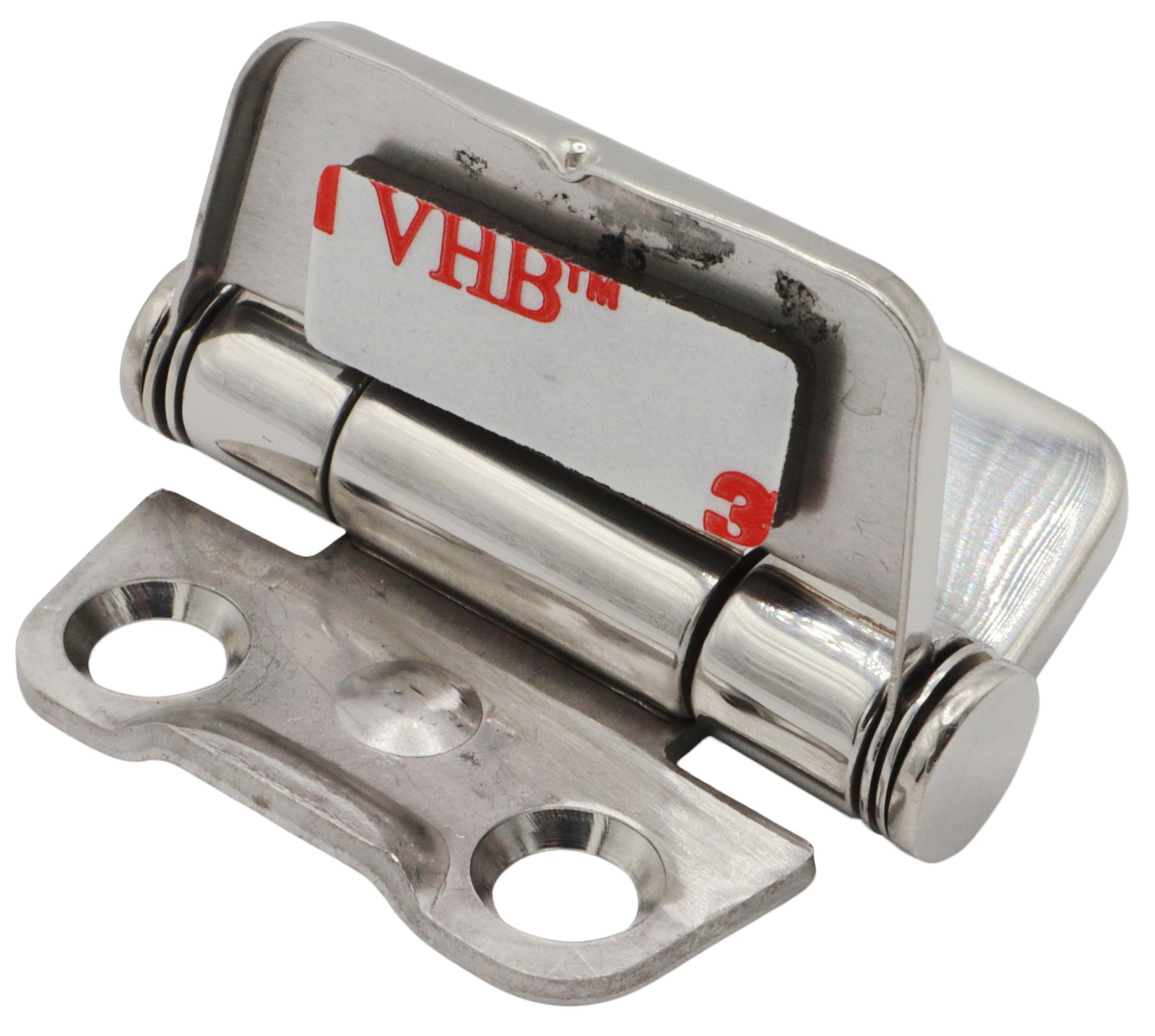

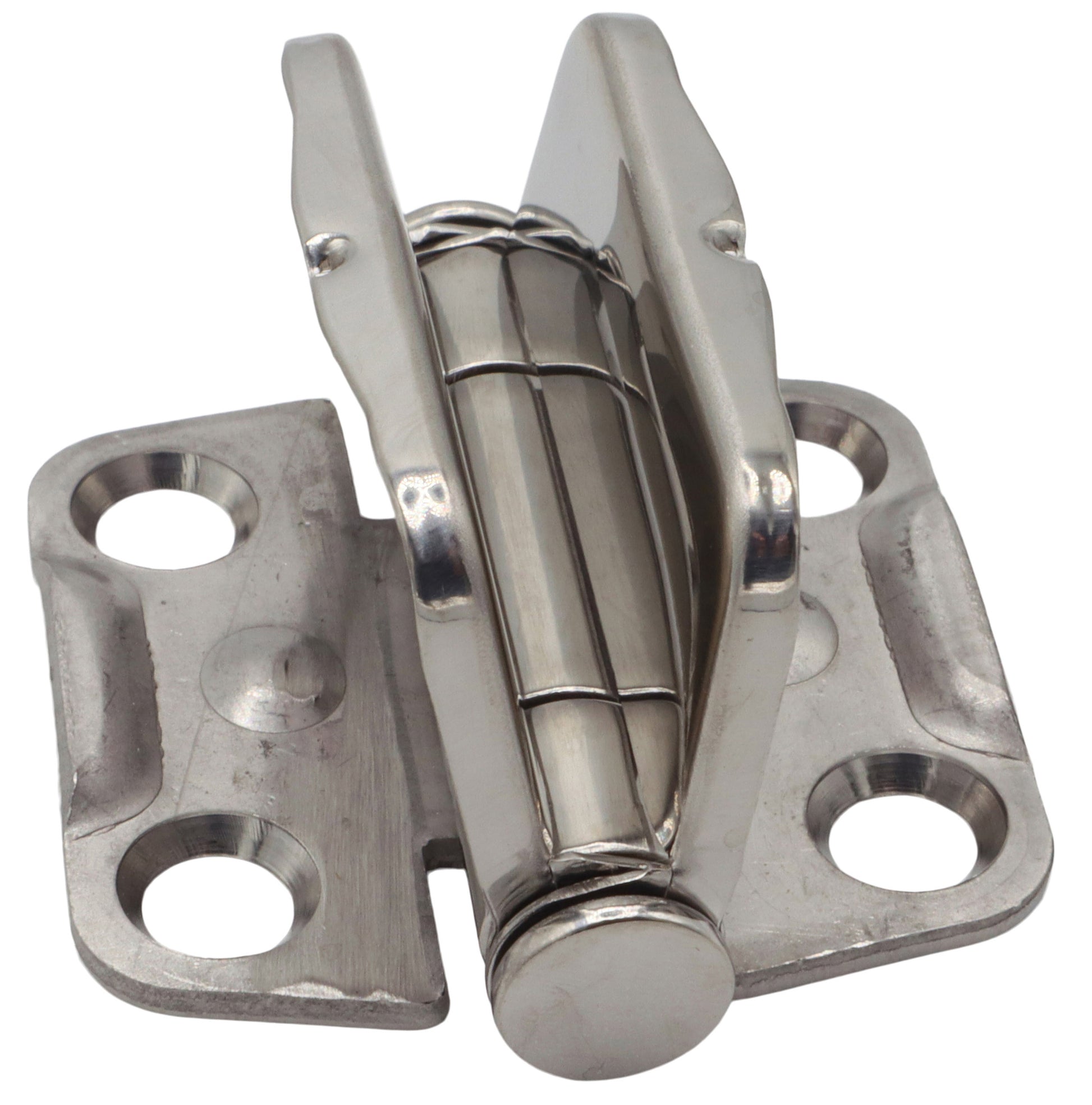

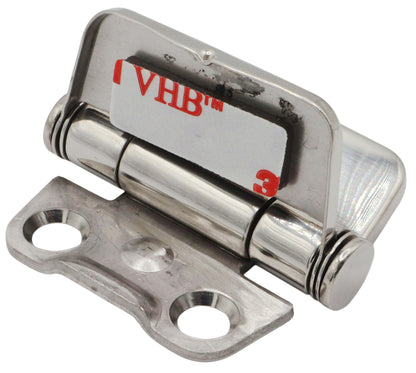

The stainless steel covers with this hinge are secured in 3 ways.  Firstly they are mechanically hinged with the main hinge pivot (so they cannot escape!).  Secondly they ‘snap’ down into position with a mechanical ‘snap grip’.  Thirdly they are supplied with 3M double sided tape if you want to use this additional level of fixing.

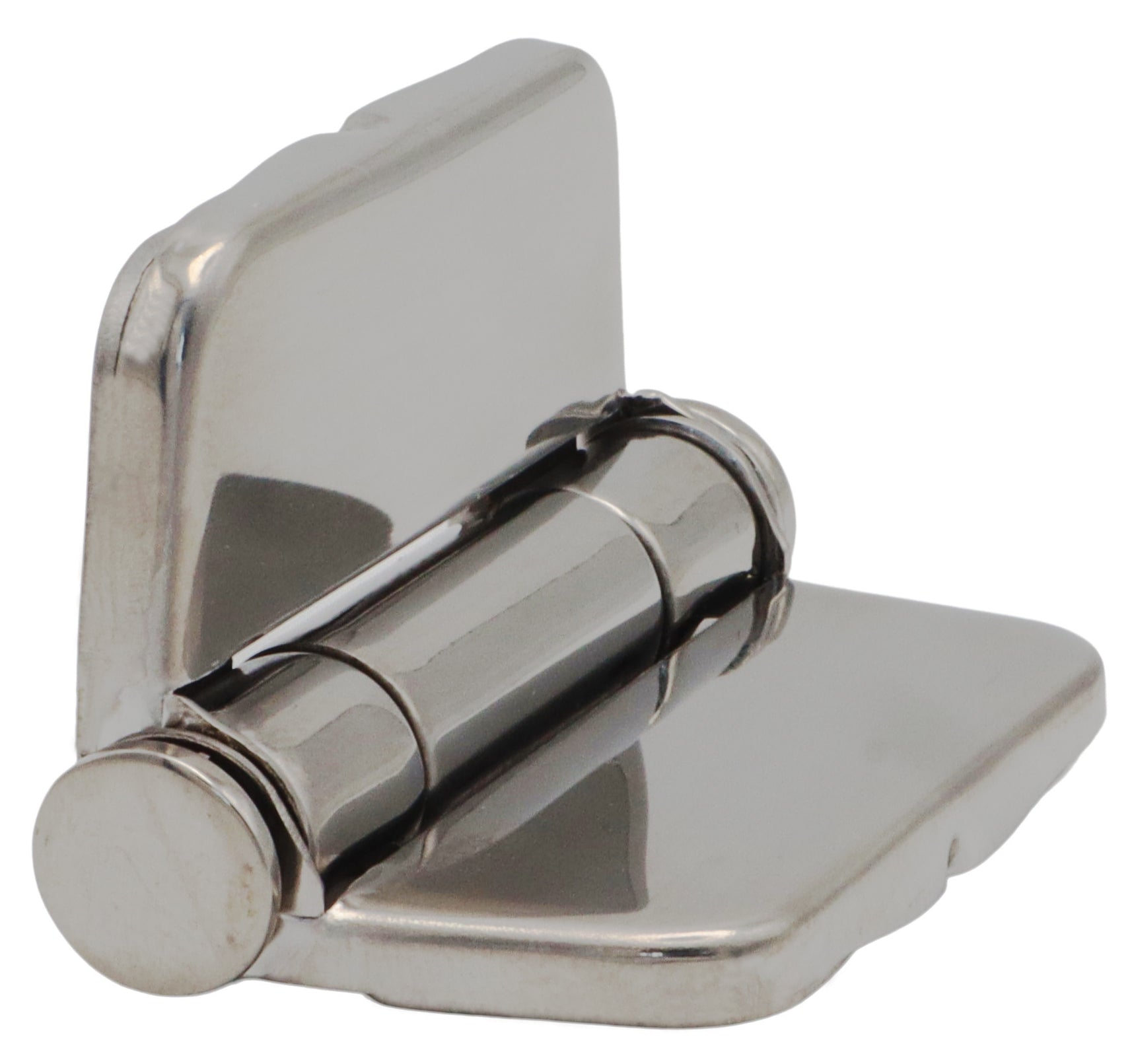

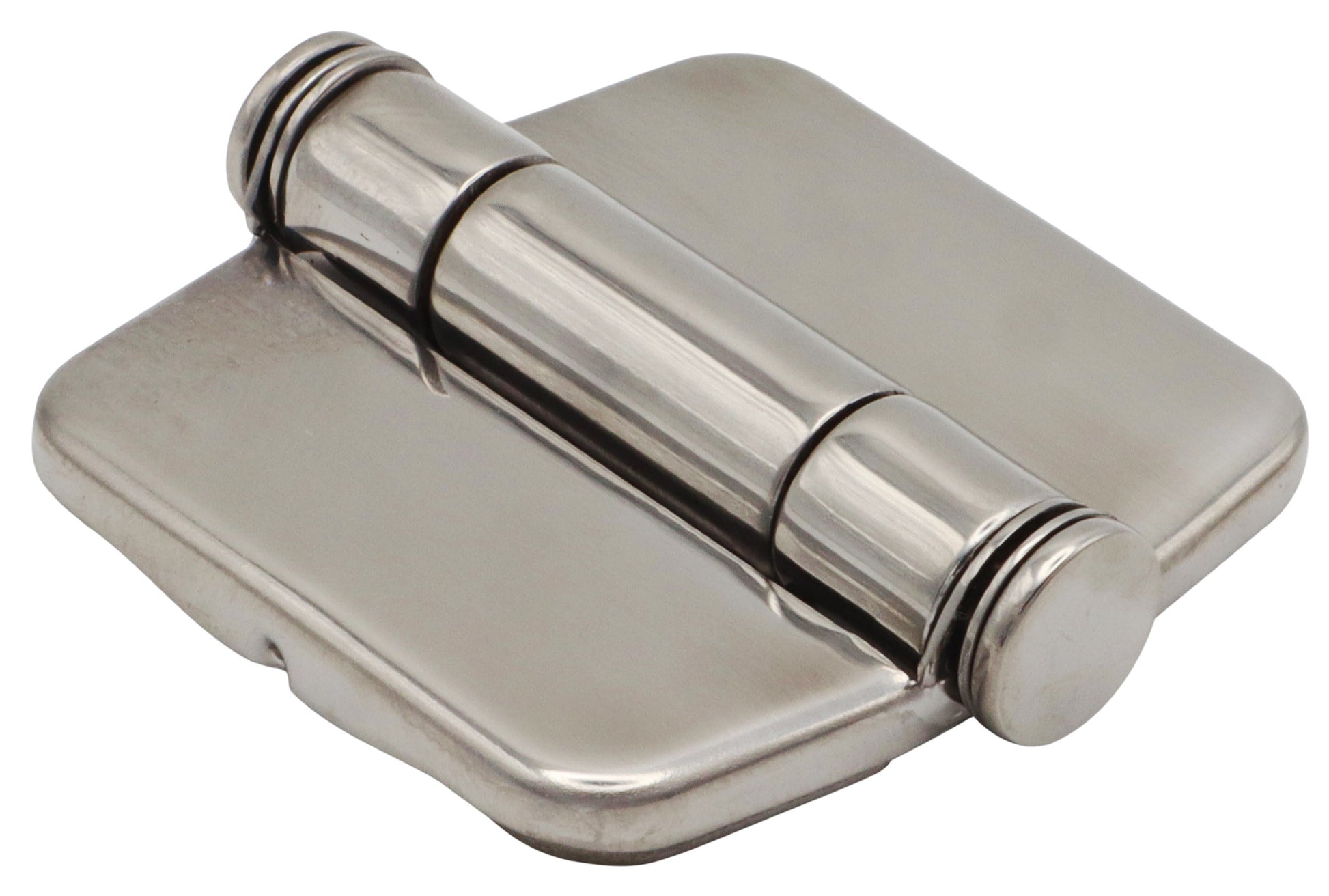

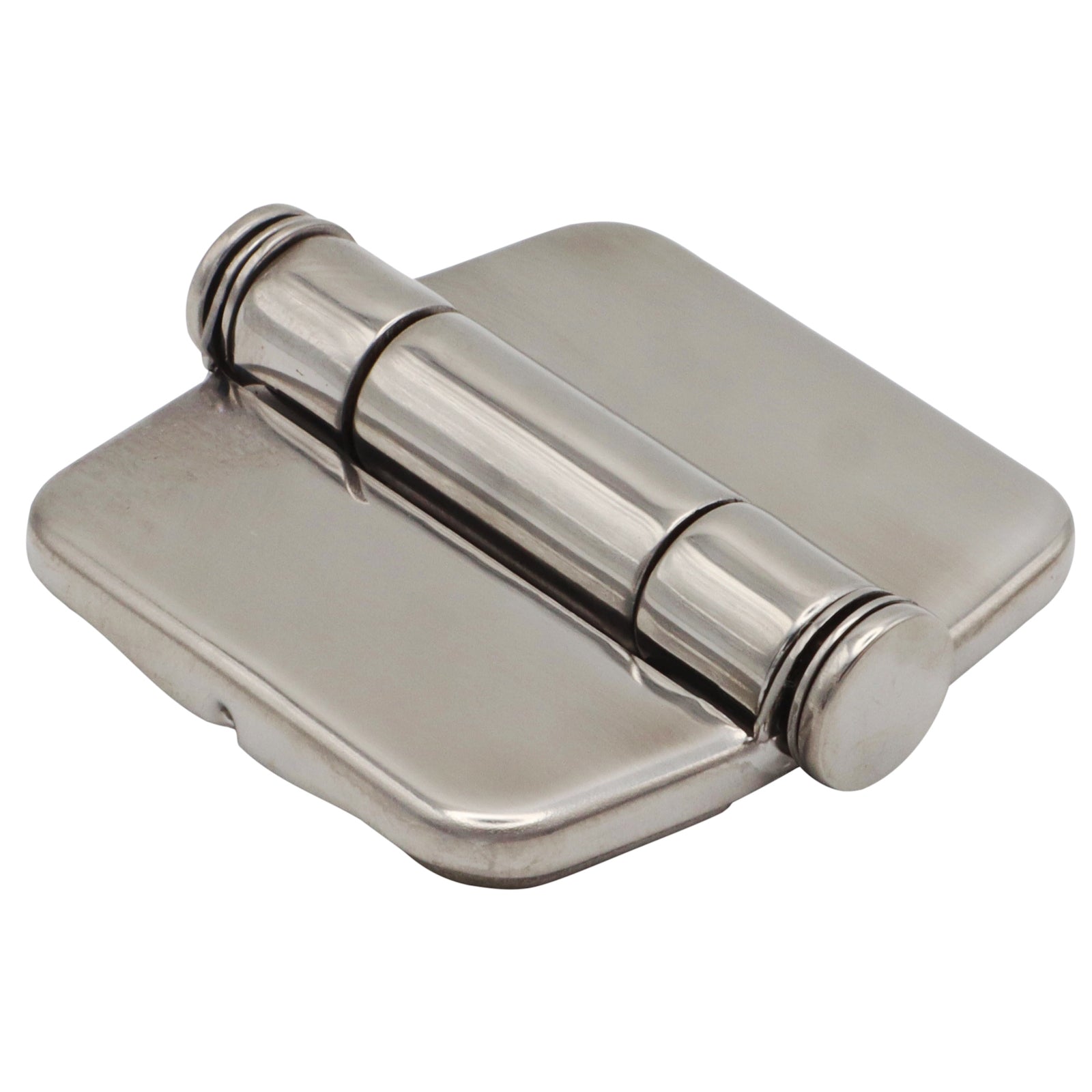

These hinges with their polished finish covers and brush finish hinge are marine-grade stainless steel making them ideal for both interior and exterior use.

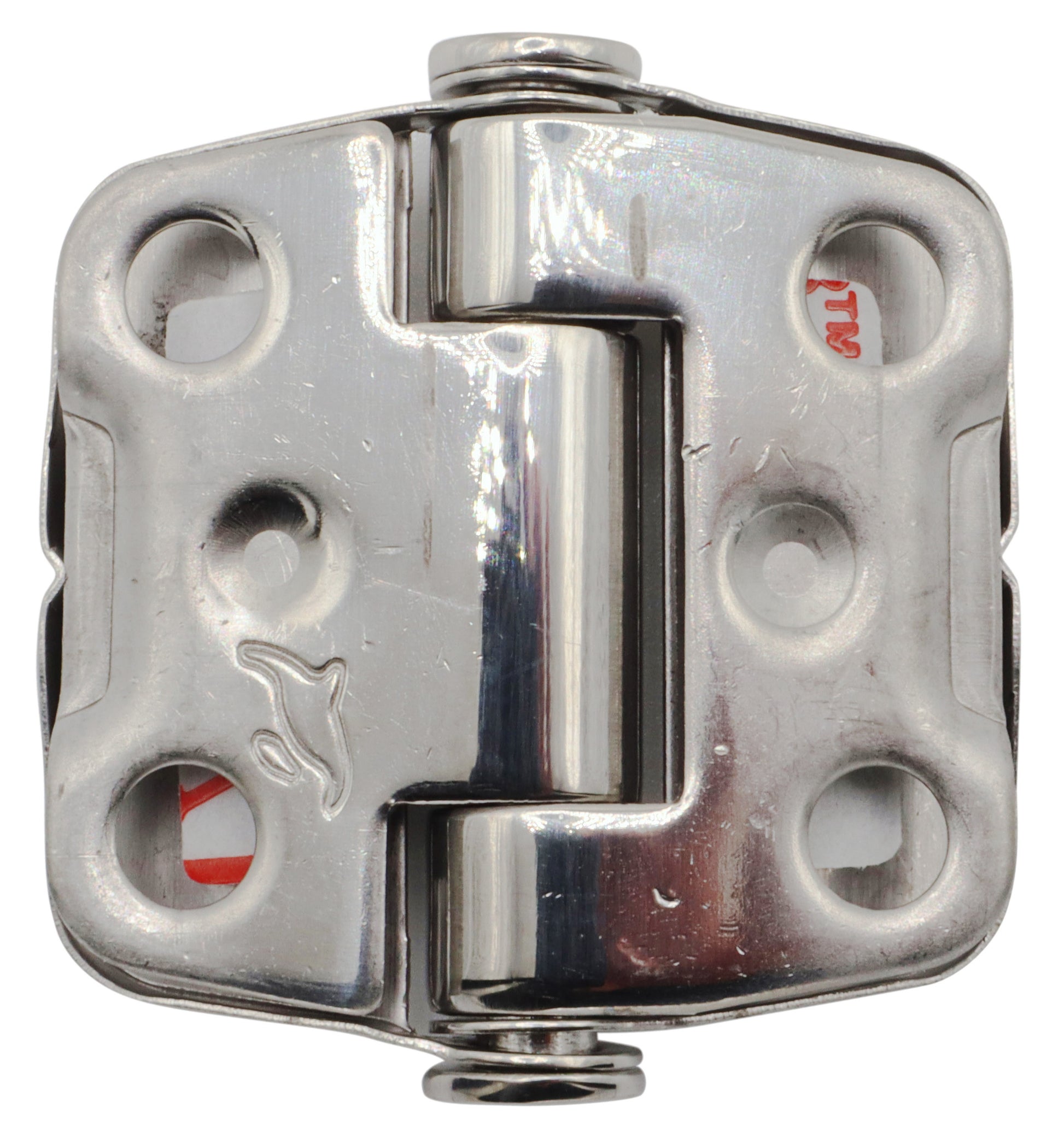

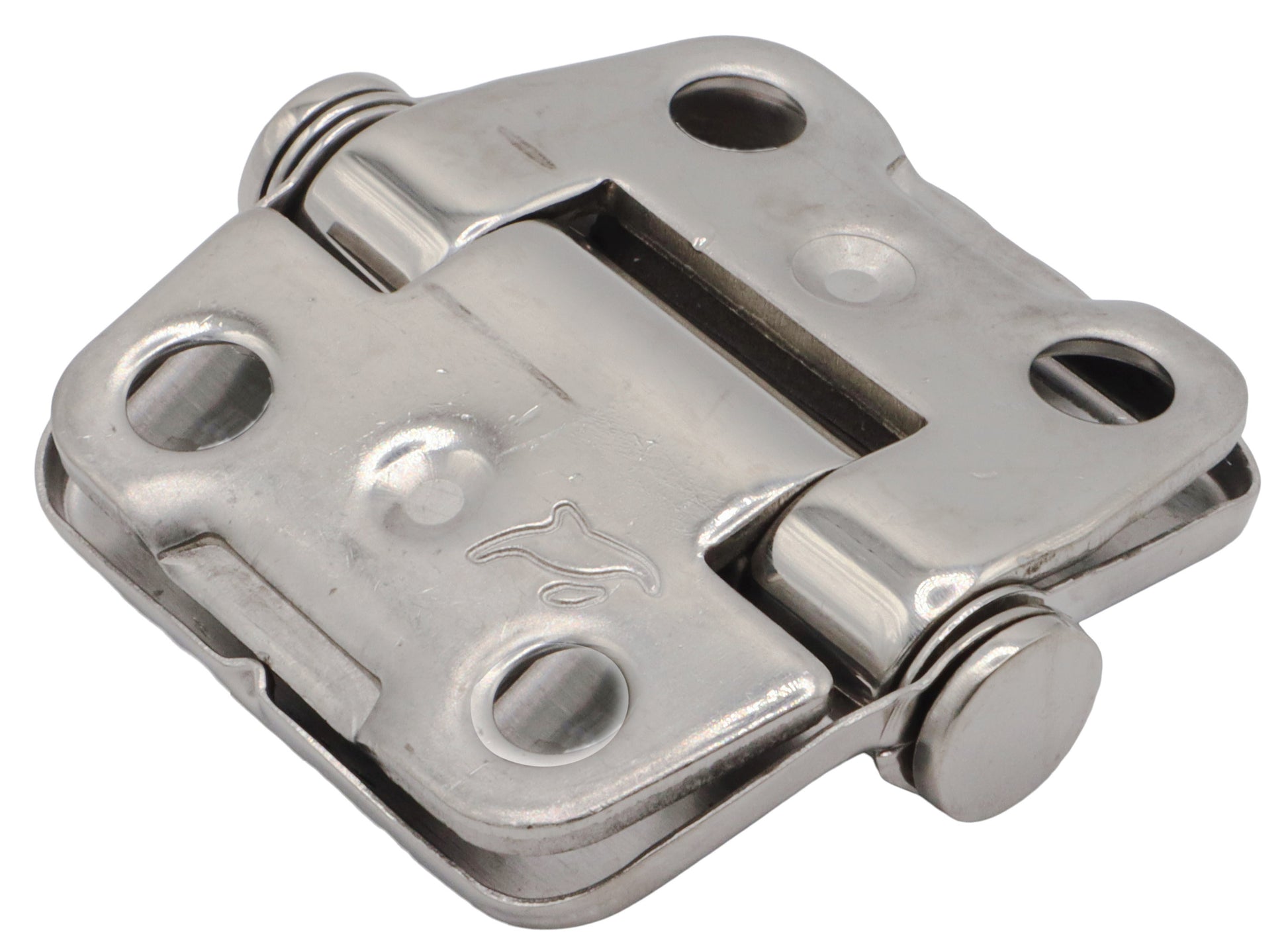

These hinges come with 4 countersunk fixing holes which are 6mm in diameter. Attach these hinges with 4.8mm countersunk self-tapping screws, or M5 fixings if using a ‘thru nut and bolt’ method.

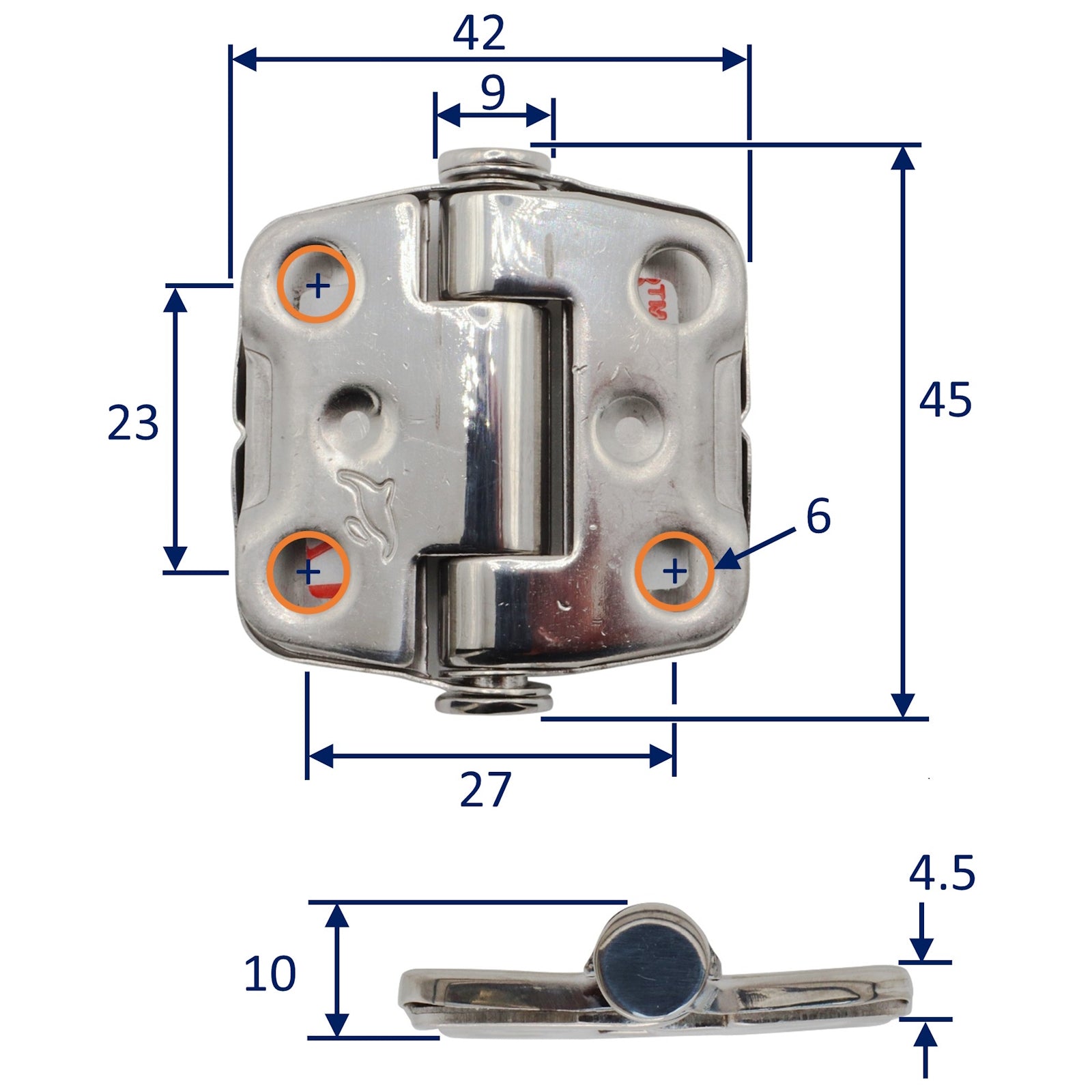

See pictures for detailed dimensions of these hinges.

•    Polished 316 grade stainless steel snap-down covers
•    42mm overall width
•    45mm overall length

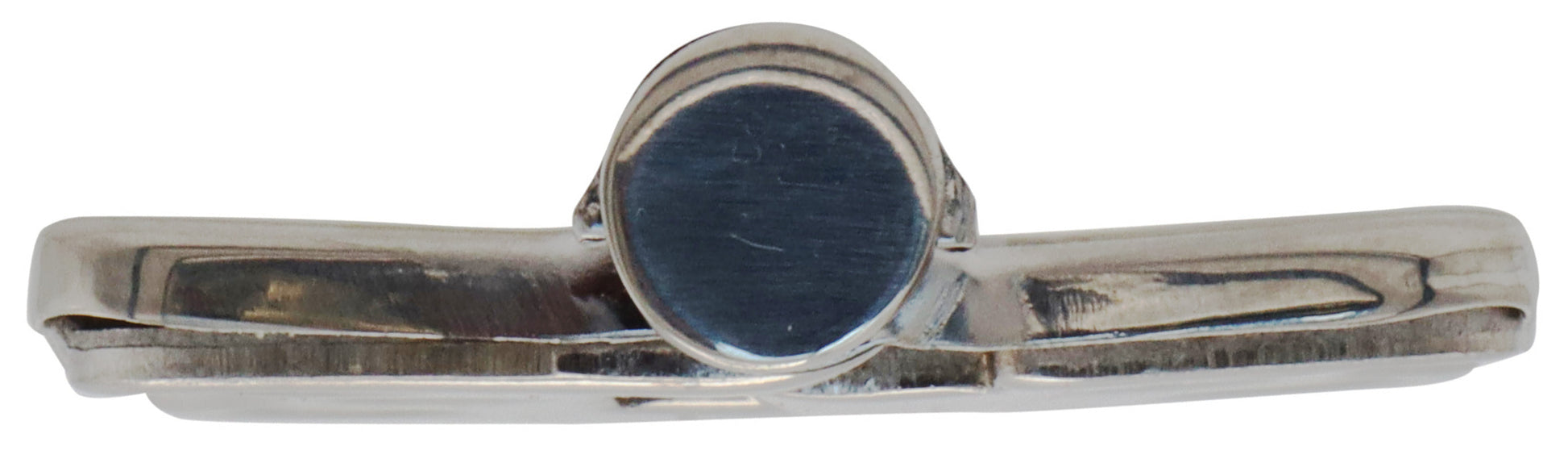

•    4.5mm overall thickness
•    Use our 4.8mm countersunk self tapping screws into wood, or M5 set-screws if using a ‘nut and bolt’ method of fixing.
