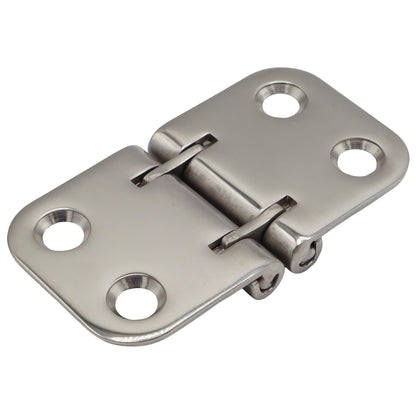

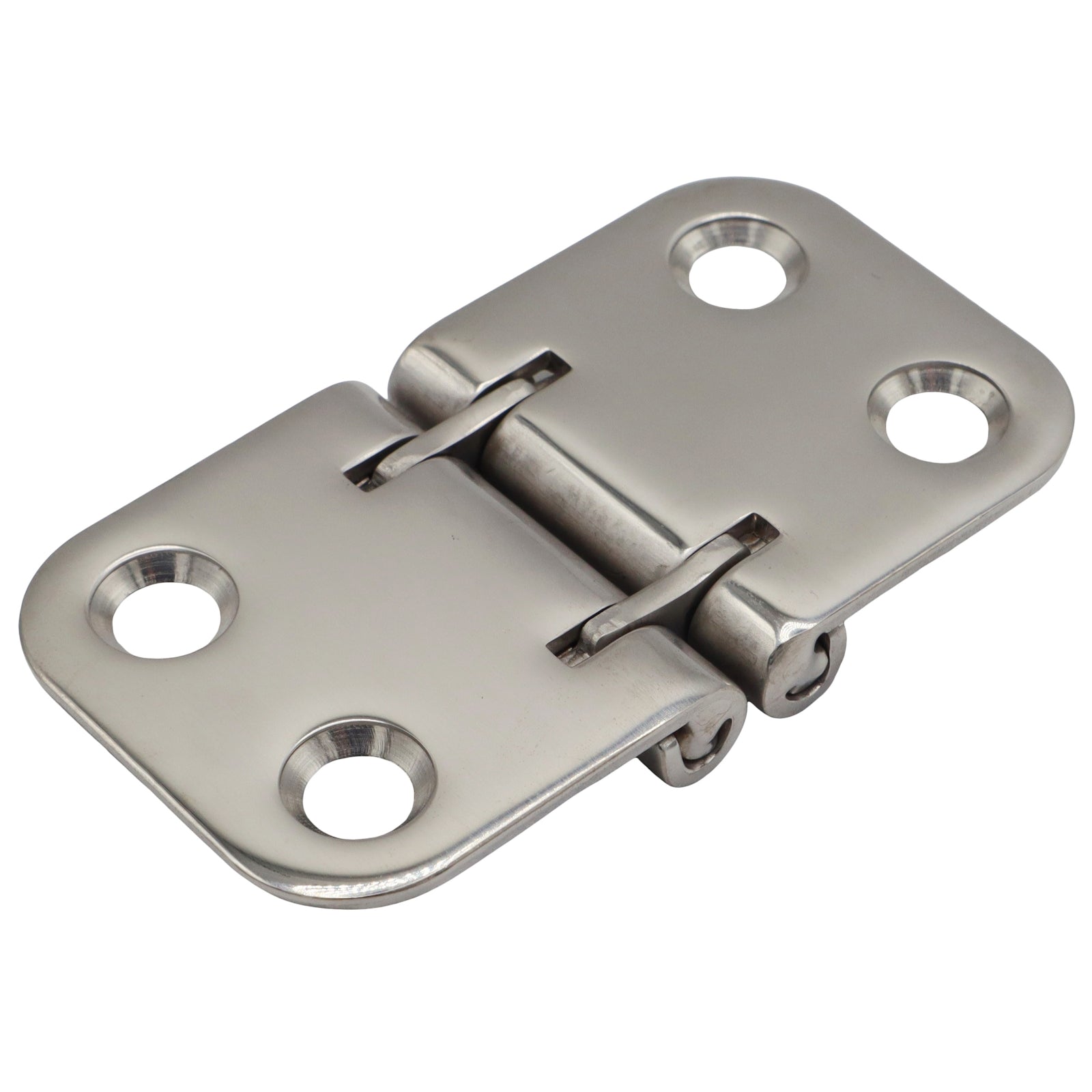

Stainless Steel 180 Degree Hinge – 316 Grade Stainless Hinge With Polished Finish 71 x 40mm

Product Description

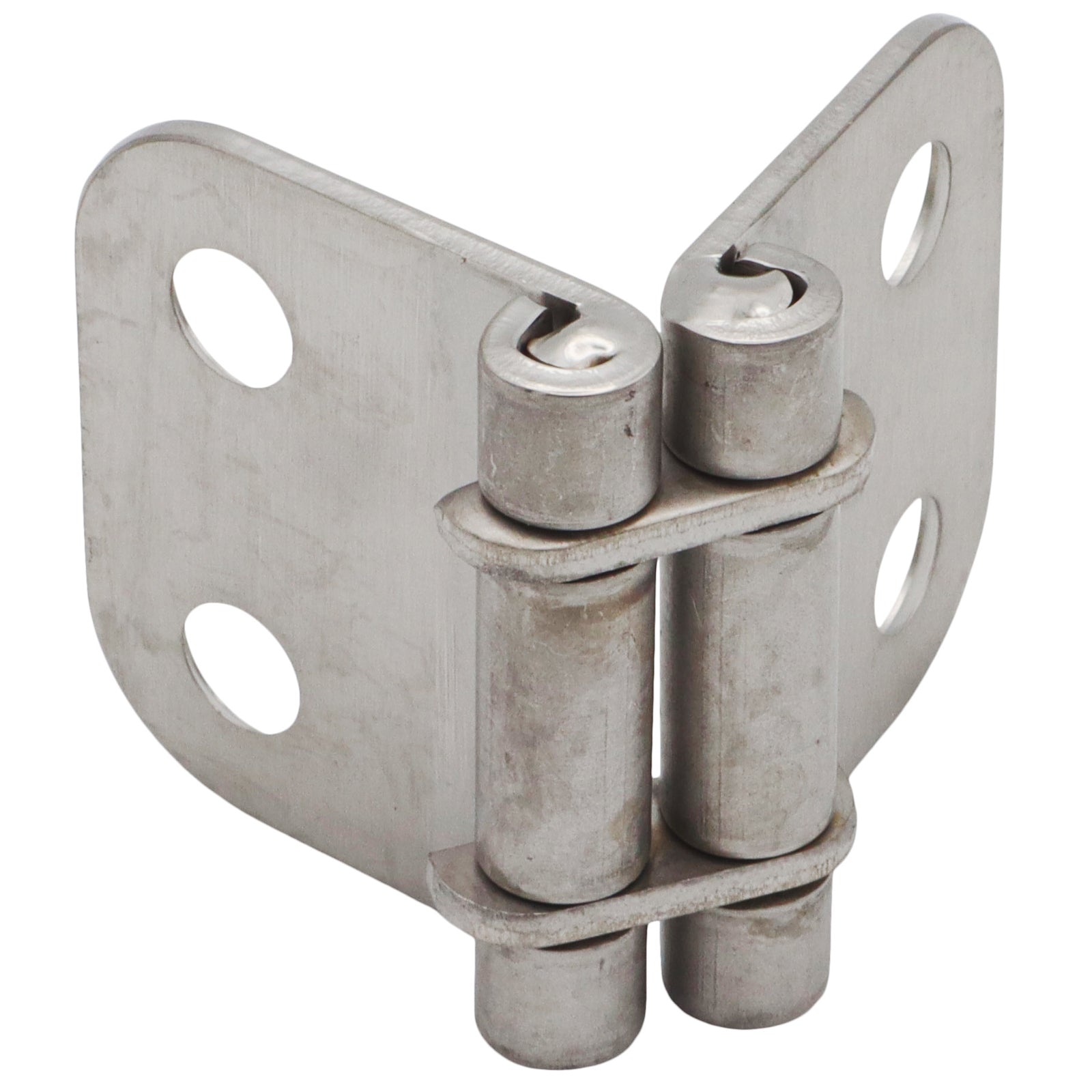

A hinge that operates from fully closed, to 180-degrees open.  This hinge stops at 180-degrees open, for situations such as folding table flaps (light duty).

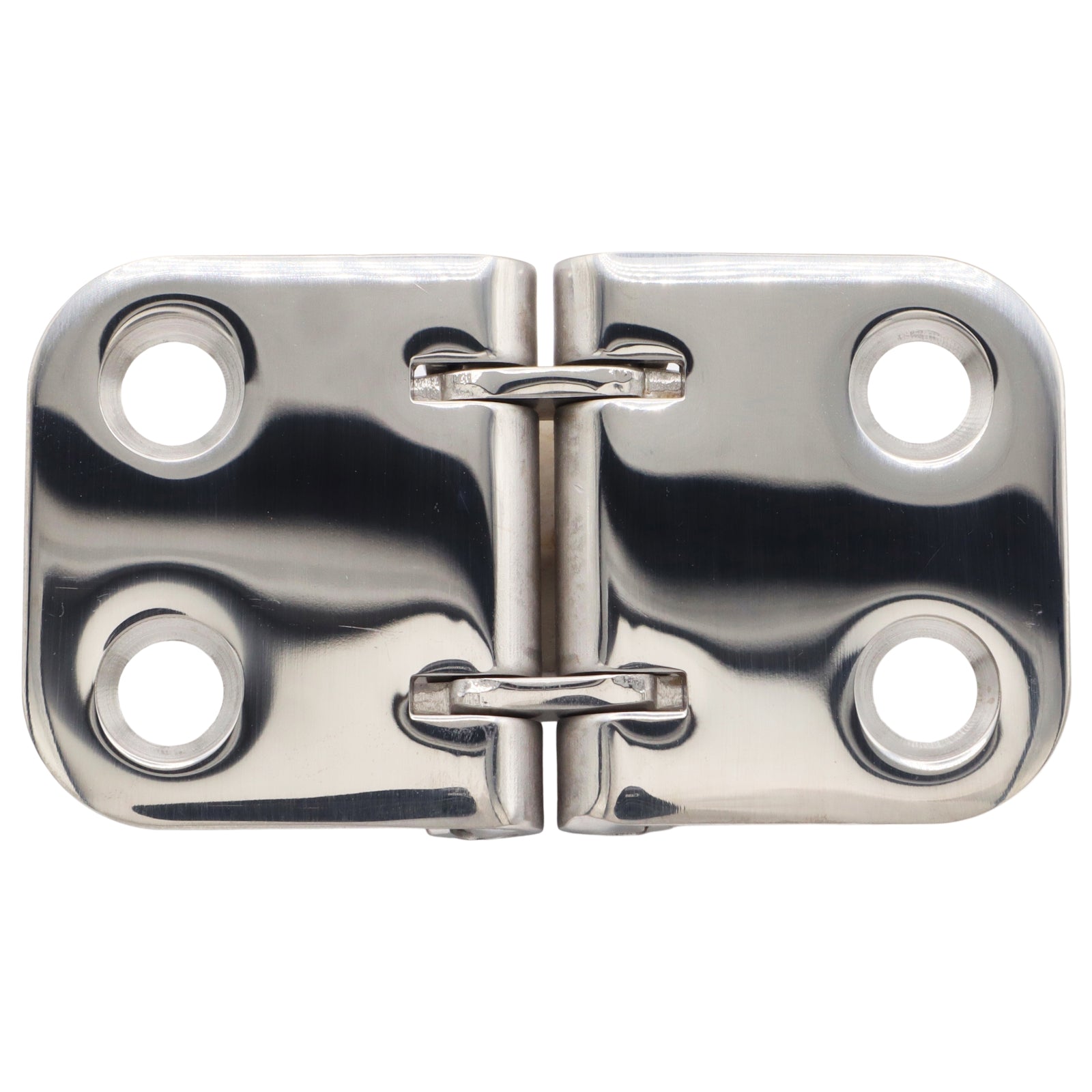

These hinges have a polished finish, and their marine-grade stainless steel makes them ideal for both interior and exterior use.

These hinges come with 4 countersunk fixing holes which are 7.2mm in diameter. Attach these hinges with M6 set screws (if using ‘nut and bolt’) or 4.8 or 5.5 mm self tapping screws. For a ‘classic’ look you might want to use our raised slot countersunk set screws.

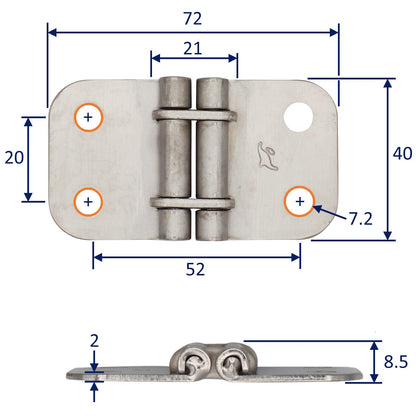

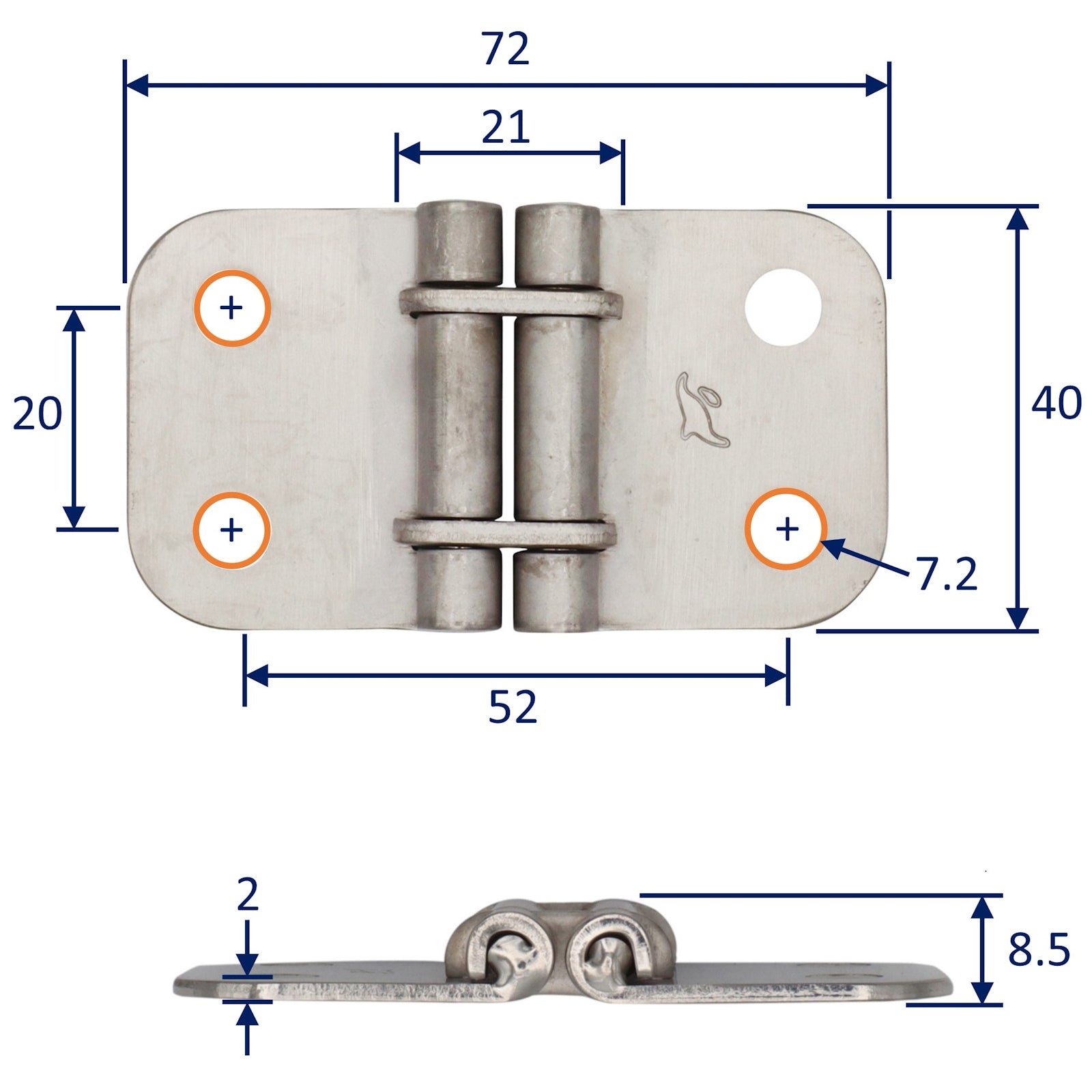

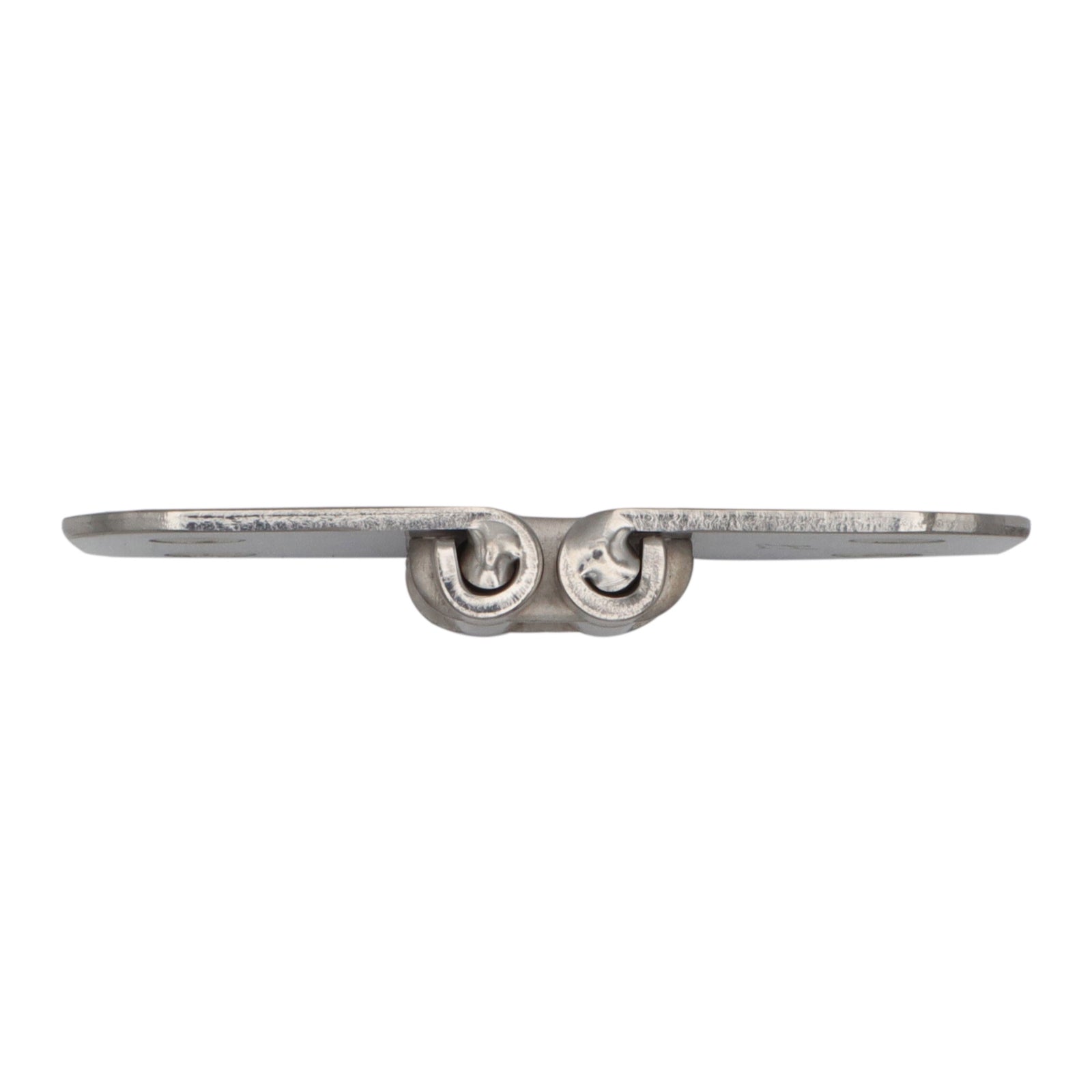

See pictures for detailed dimensions of these hinges.

•    180 degree hinge
•    Polished 316 grade stainless steel
•    40mm overall width
•    71mm overall length
•    2mm thickness
•    Use M6 bolts/set screws (nut and bolt fixing)
•    Use 4.8 or 5.5mm self tapping screws into wood
