Polished Stainless Cupboard / Draw Closure Latch – 316-Grade Stainless – With Detent

Product Description

This closure is to keep drawers or cupboard doors closed.  The closure arm is attached to the door frame (or surround).  The small plastic ‘button’ is attached to the drawer or cupboard door.  The arm can be moved through 90-degrees and the ball-detent gives a pleasant sounding click when the arm has reached its new position.

As an example, the backing part of the closure would be screwed to the cupboard door frame, with the mounting plate vertically orientated, and the other part of the arm going horizontally over the edge of the door.  In this position the door cannot be opened.  Then when you want to open the door, you just rotate the arm through 90 degrees to move it out of the way of the door.

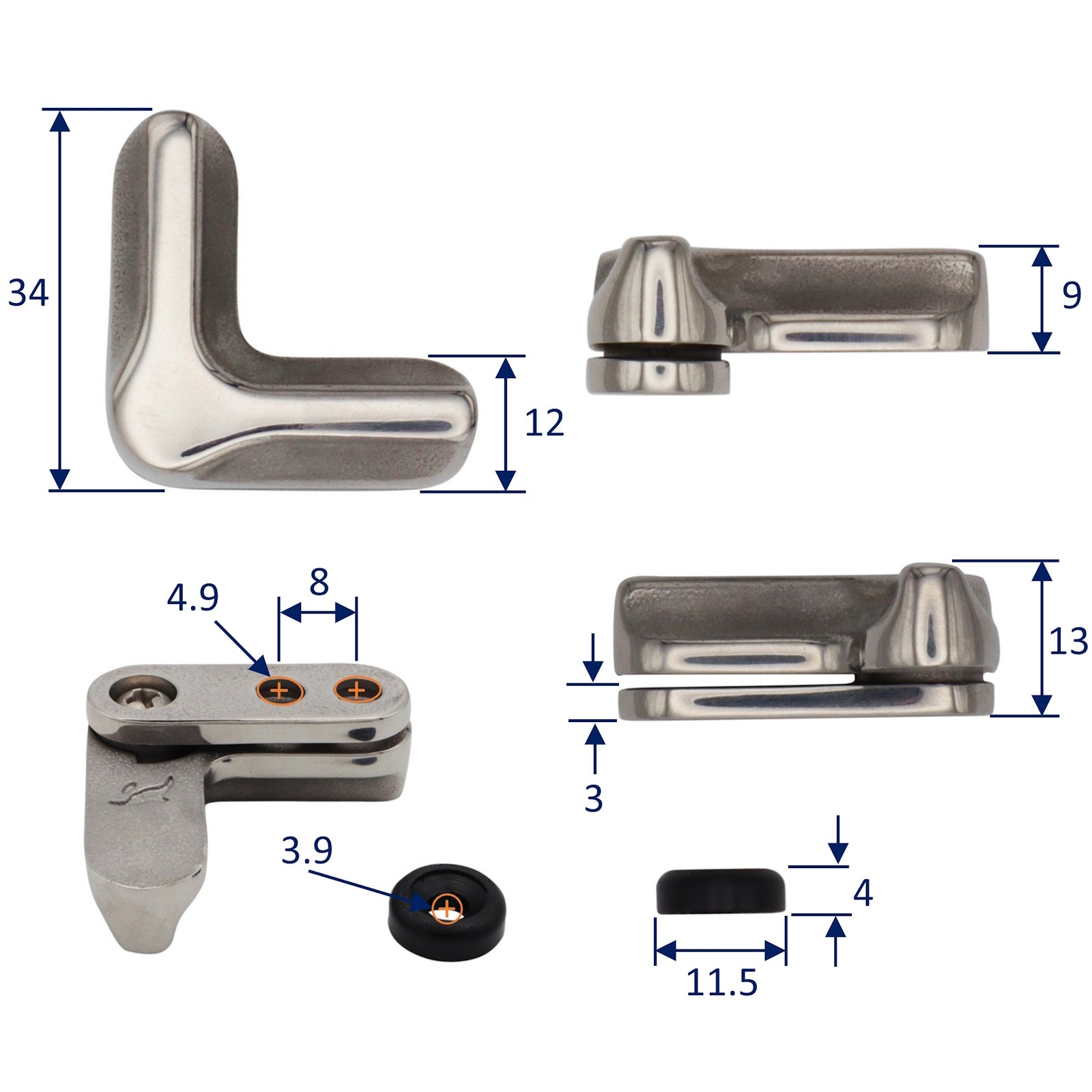

The two countersunk fixing holes are 4.9mm in diameter.  Use our 3.5mm self-tapping screws to secure in place.

•    Polished marine-grade stainless steel

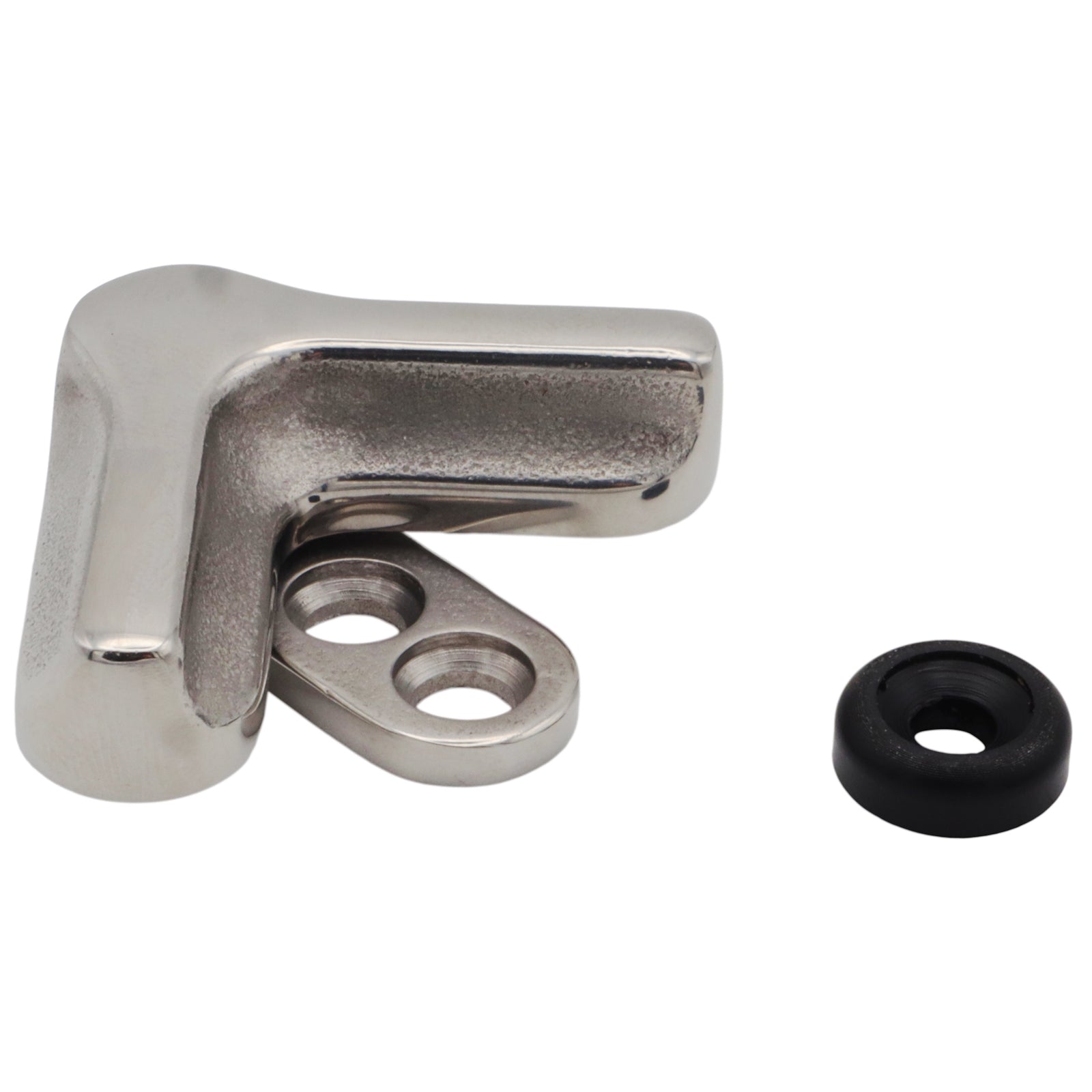

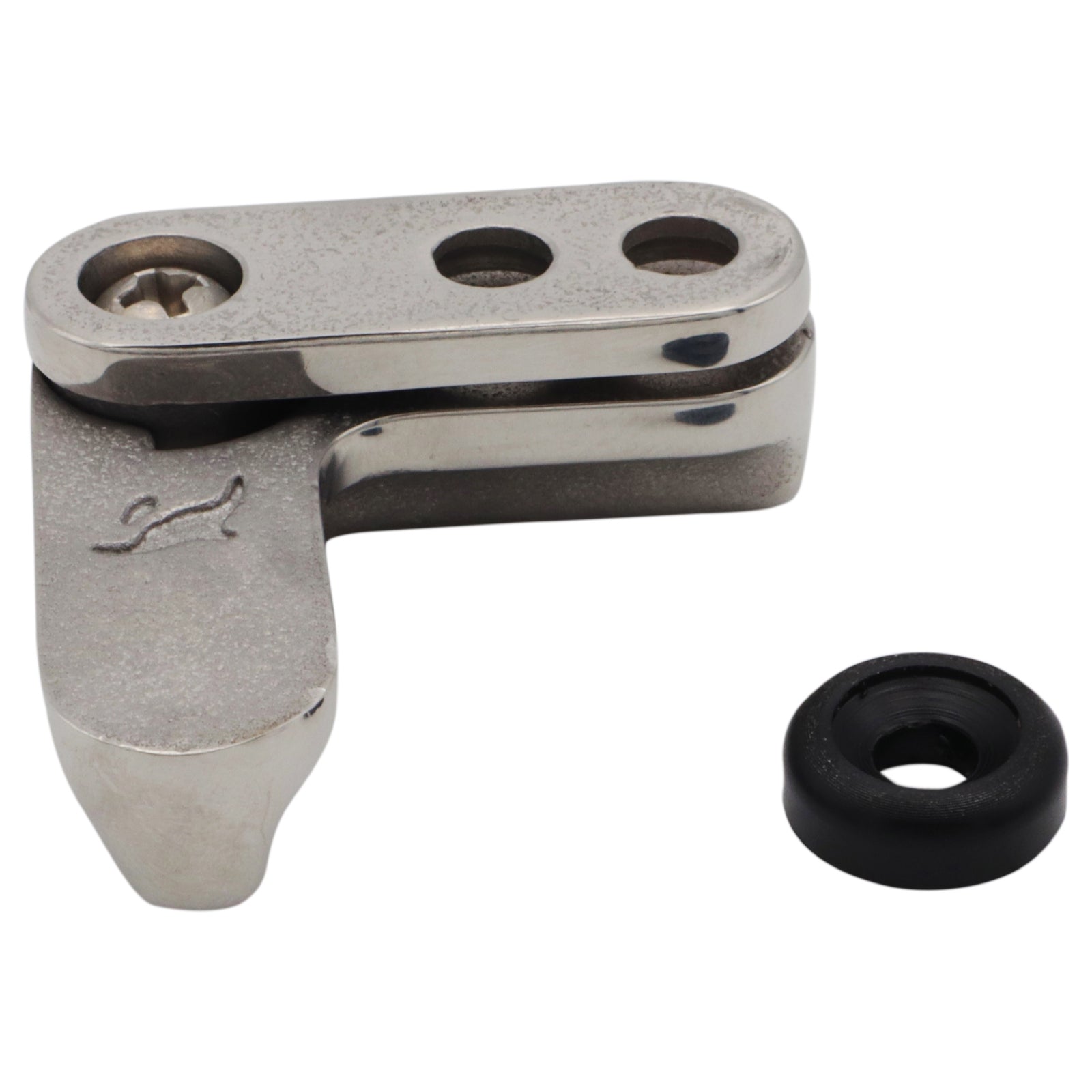

•    Two part cabinet closure
•    Sprung ball-detent to keep in position
•    Requires x3 3.5mm countersunk screws
