Osculati 16.194.62 Replacement Impeller (CEF 162)

Product Description

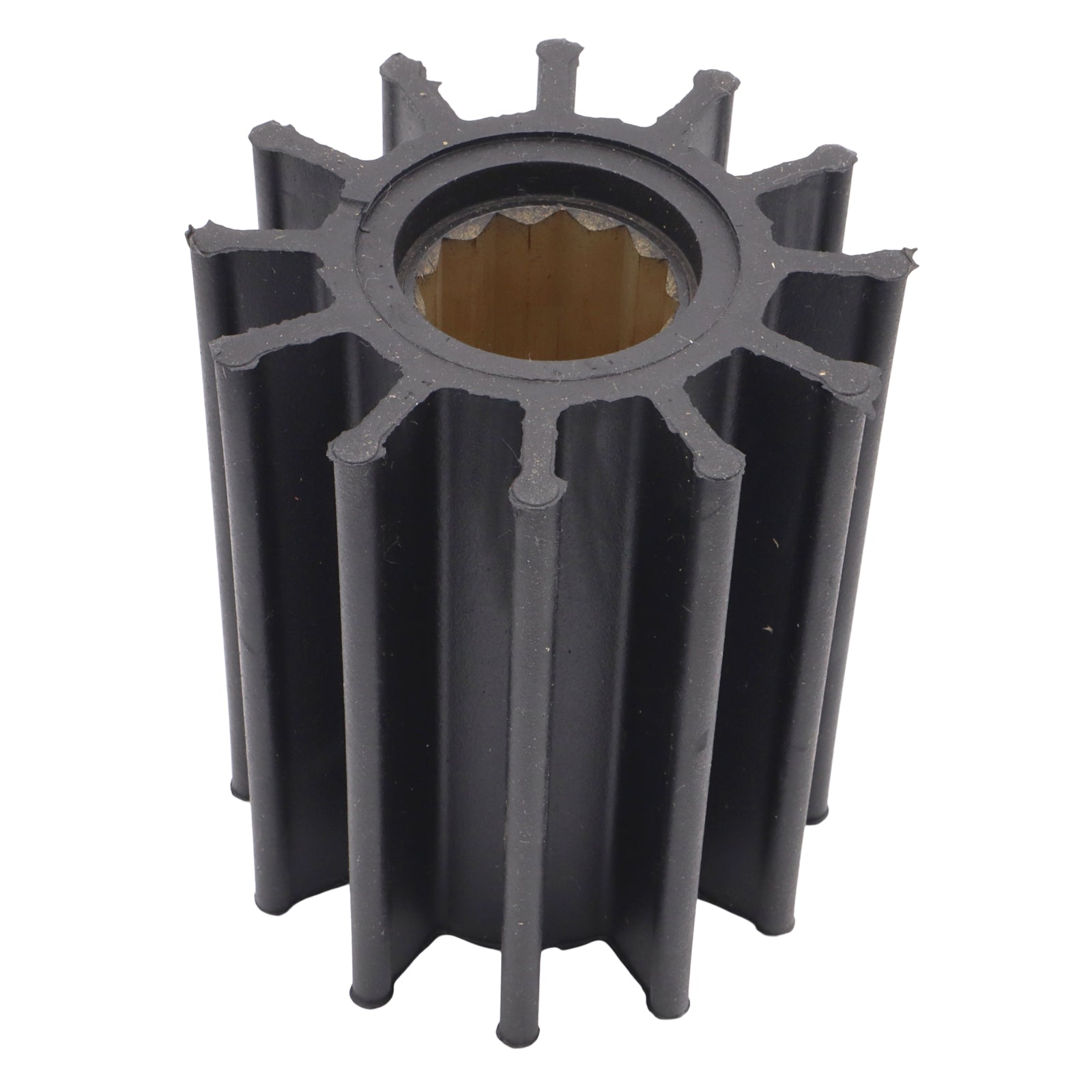

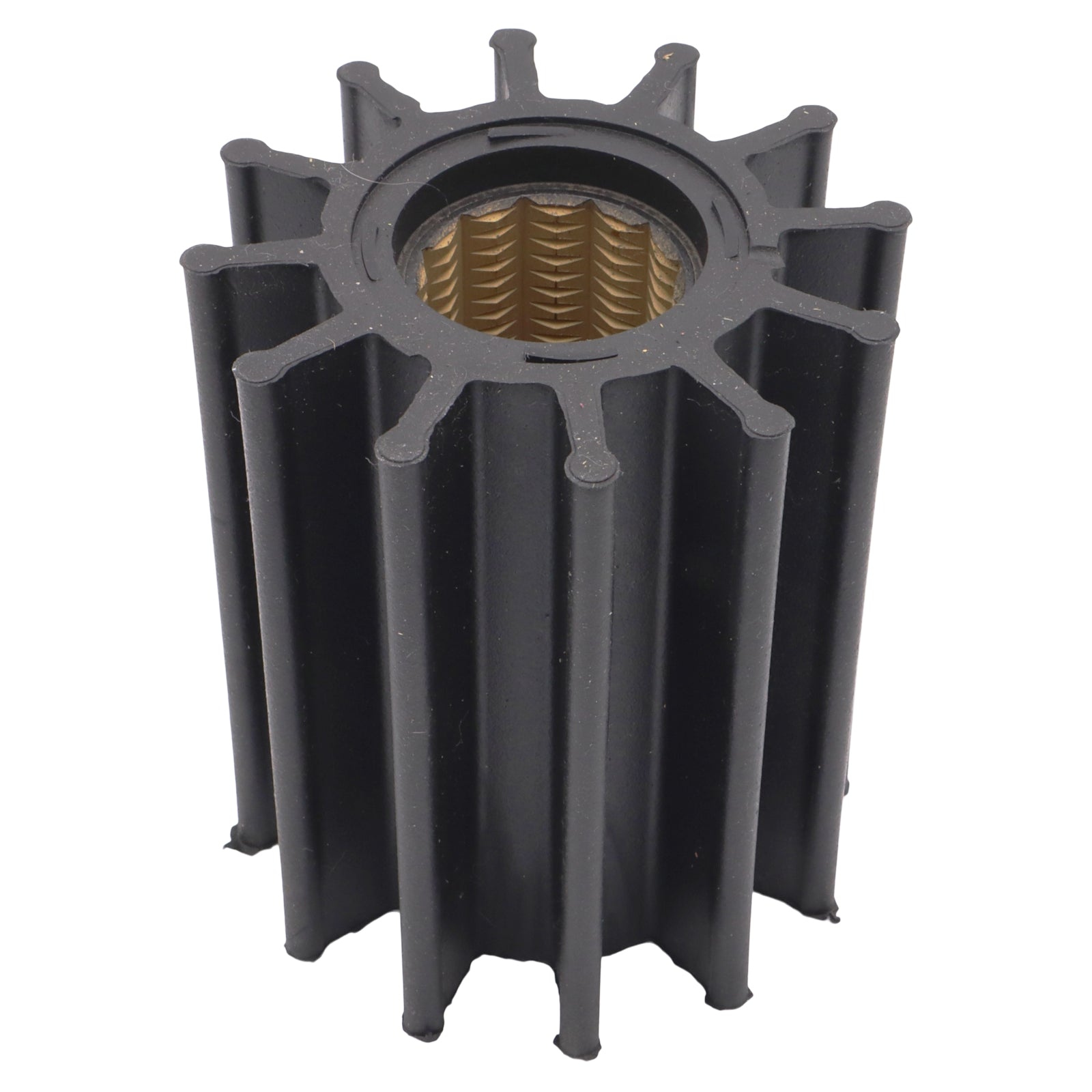

12-blade neoprene impeller for the Johnson F75B raw water pump, as fitted to Volvo Penta D6 series and Yanmar 6LY series high-output marine diesels. Spline drive, 25mm shaft.
At this displacement and power output, raw water cooling is working hard. The F75B is a large-capacity pump to match — this impeller runs at 65.8mm OD and 80mm length, considerably larger than the impellers found on typical sailing yacht auxiliaries. Thermal consequences of impeller failure on a D6 or 6LY are serious and fast-moving; annual replacement should be considered mandatory regardless of apparent condition, and a spare should be carried on board at all times.

Specifications

•    Outside diameter: 65.8mm
•    Length: 80mm
•    Shaft bore: 25mm (12-spline drive)
•    Blades: 12
•    Material: Neoprene

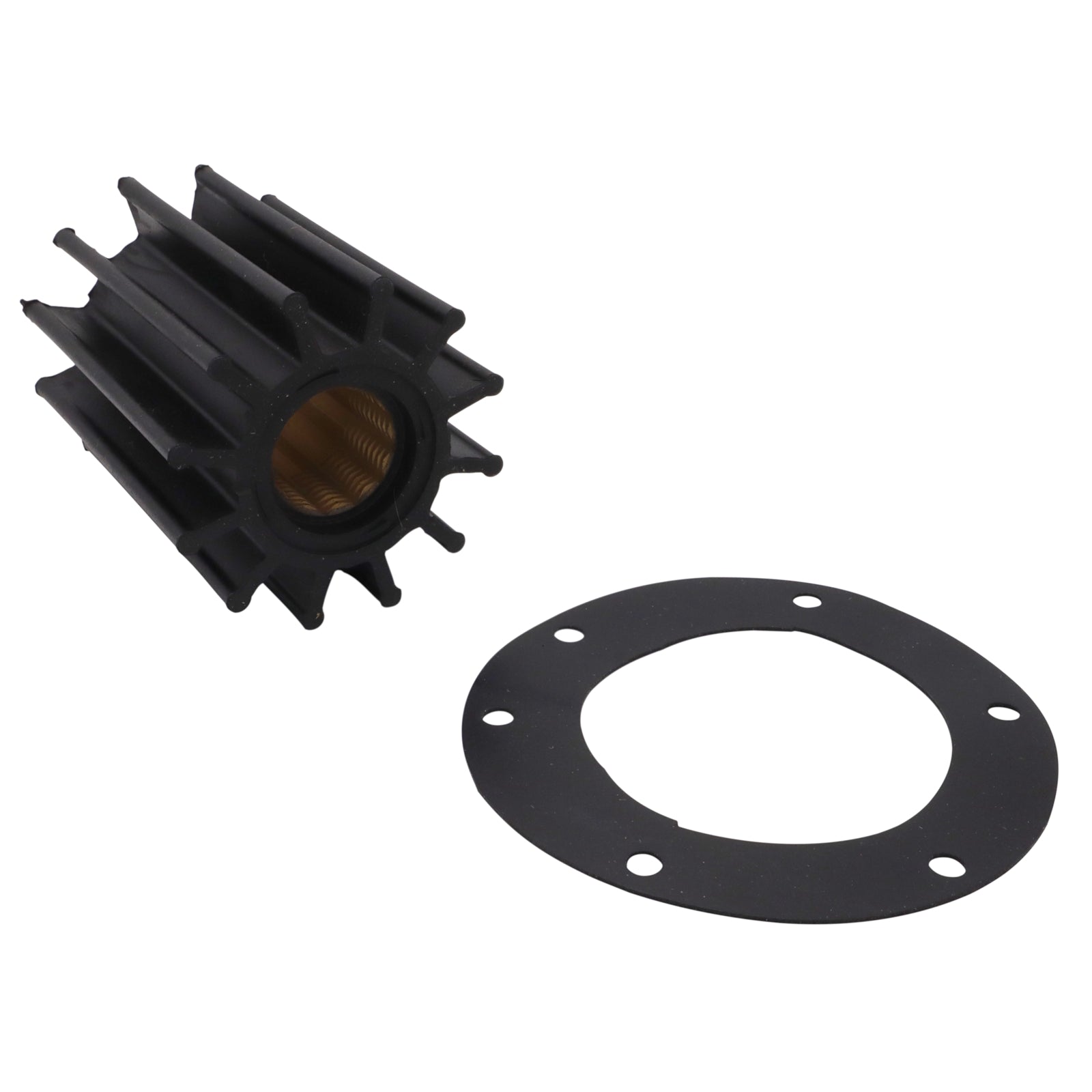

•    Supplied with: gasket

Important — drive type: this impeller uses a 12-spline shaft interface. Confirm your pump model before ordering; impellers of similar external dimensions but different drive types are not interchangeable.

Typical engine applications

•    Volvo Penta D6-280, D6-310, D6-330, D6-370, D6-435
•    Yanmar 6LY2-STE, 6LYA-STE, 6LYA-UTE, 6LY2-ST, 6LYA-STP, 6LY2A-STP, 6LY2-STUY

OEM / cross-reference part numbers

Volvo Penta 876771 / 21951358 / 3887761 · Johnson 09-821B / 09-821BT-1 · Yanmar 119574-42550 / 119574-42552 / 119578-42550 · JMP 7376-01 · DJ Pump 09-44-1201 · CEF 500162 · Sierra 18-45714
