Osculati 16.194.52 Replacement Impeller (CEF 152)

Product Description

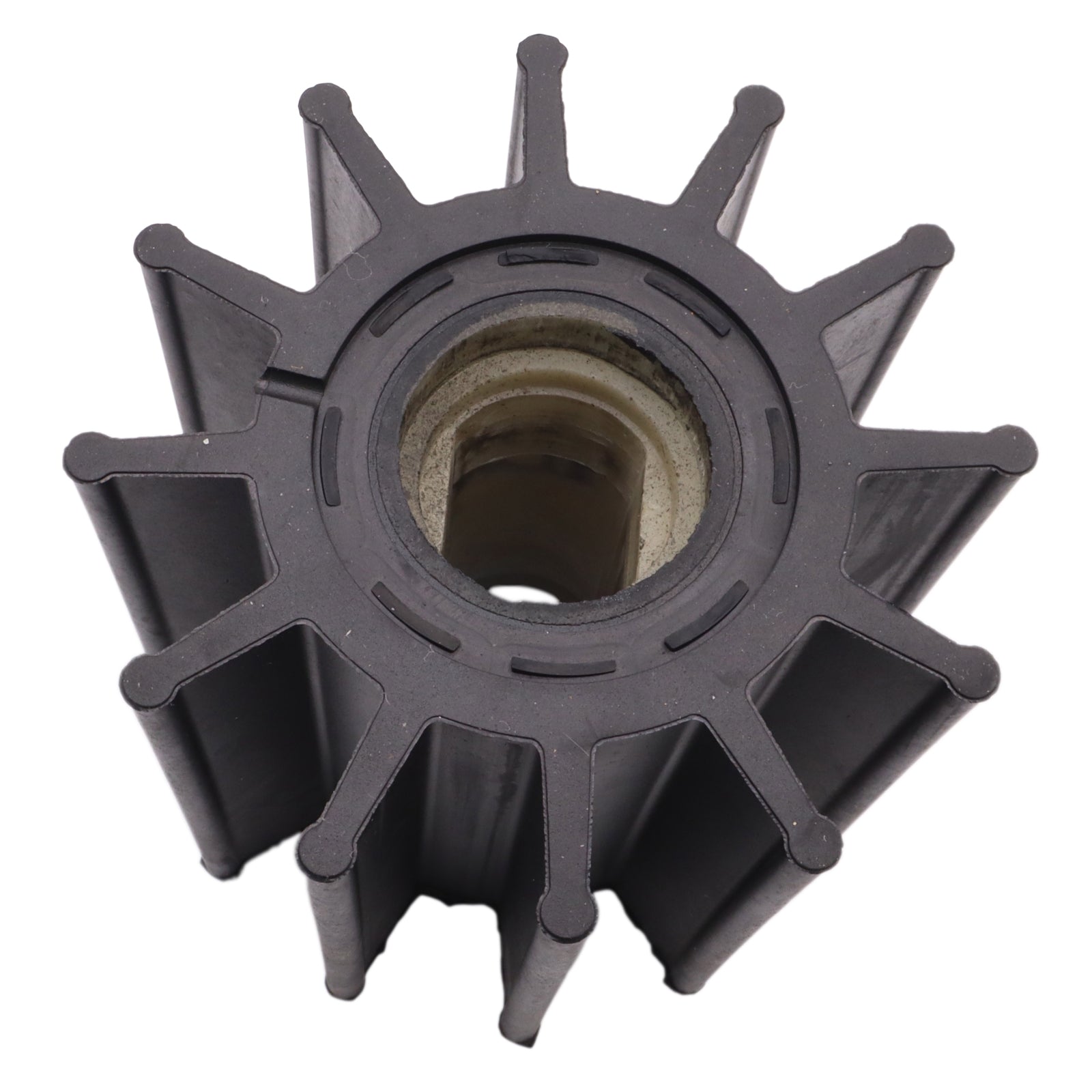

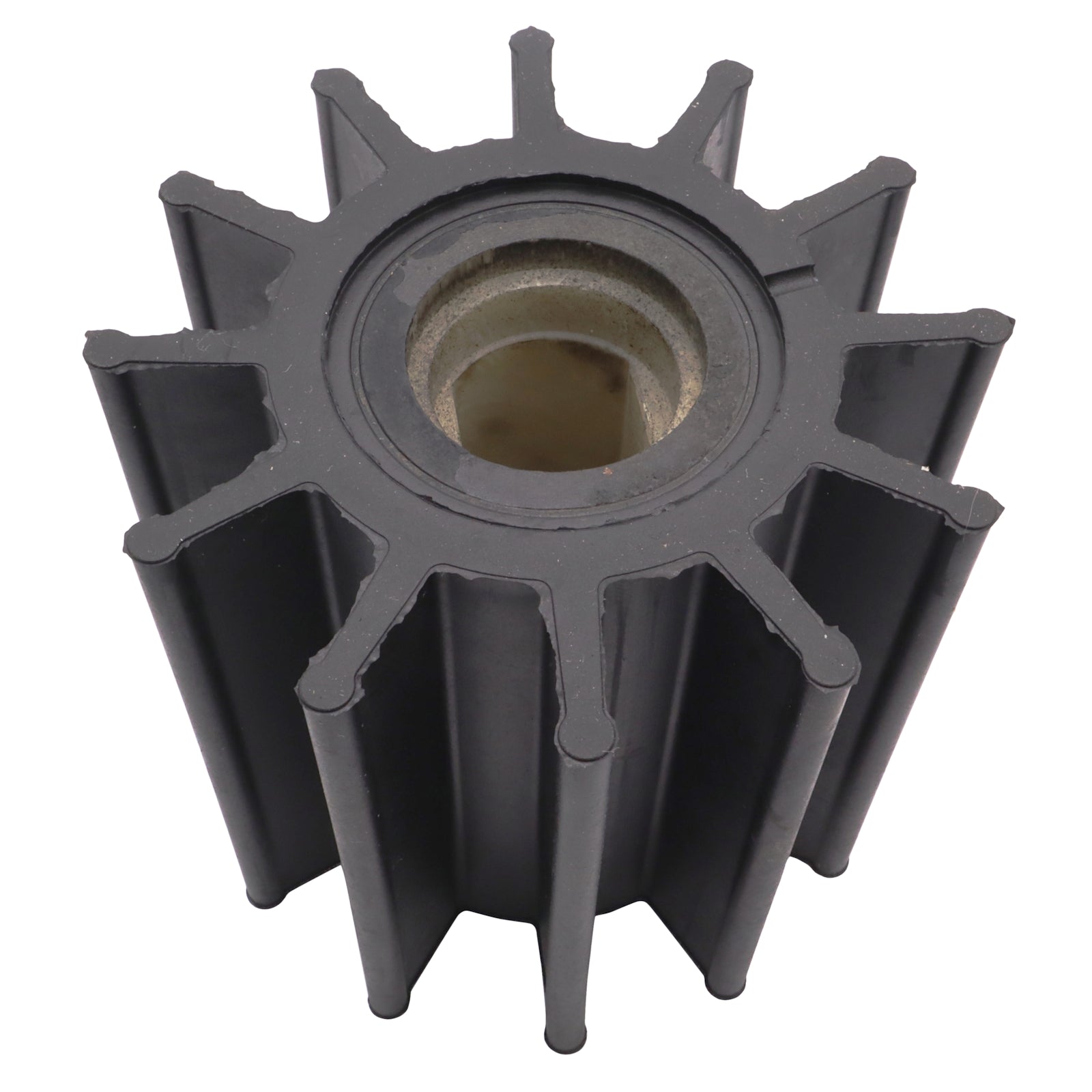

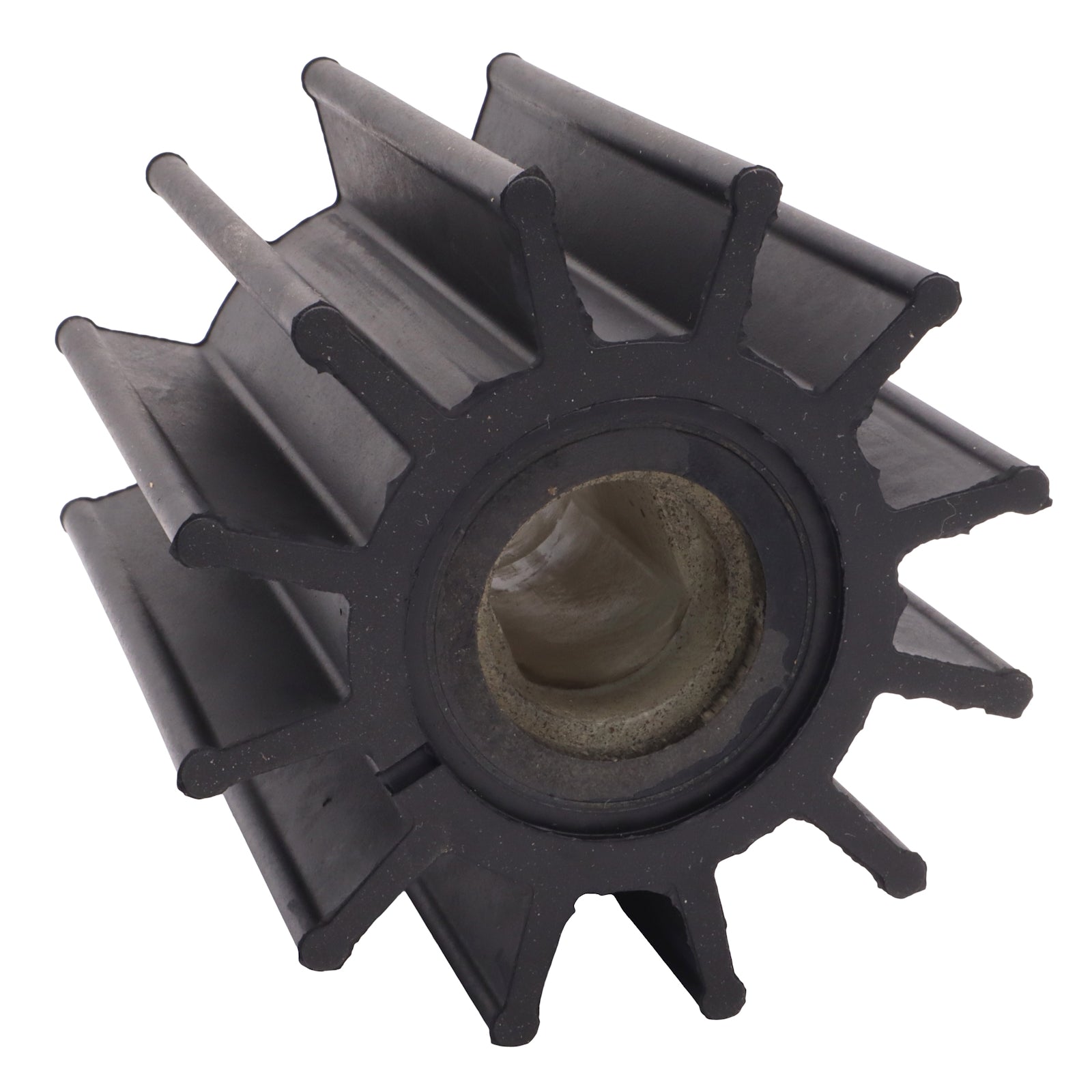

Large 12-blade neoprene impeller for Jabsco raw water pumps as fitted to high-displacement commercial marine diesels including the Detroit Diesel V92 series, Caterpillar 3406 series and Cummins VT903M. Double flat drive, 25mm shaft.

At 95mm OD and 88.5mm length this is one of the largest flexible impellers in the range, in keeping with the pump and engine sizes involved. The Detroit Diesel 8V92 and 16V92 are high-output two-stroke V8 and V16 engines found in commercial fishing vessels, ferries, workboats and patrol craft; the Caterpillar 3406 is a 14.6-litre inline-six in widespread commercial and military marine use; the Cummins VT903M is a V8 marine diesel of 14.8 litres. These are not engines where cooling system failures are taken lightly.
Drive type is double flat — two opposing flats on the shaft. Confirm this matches your pump before ordering; double flat is not interchangeable with single flat, keyed, or spline drive configurations.

Specifications

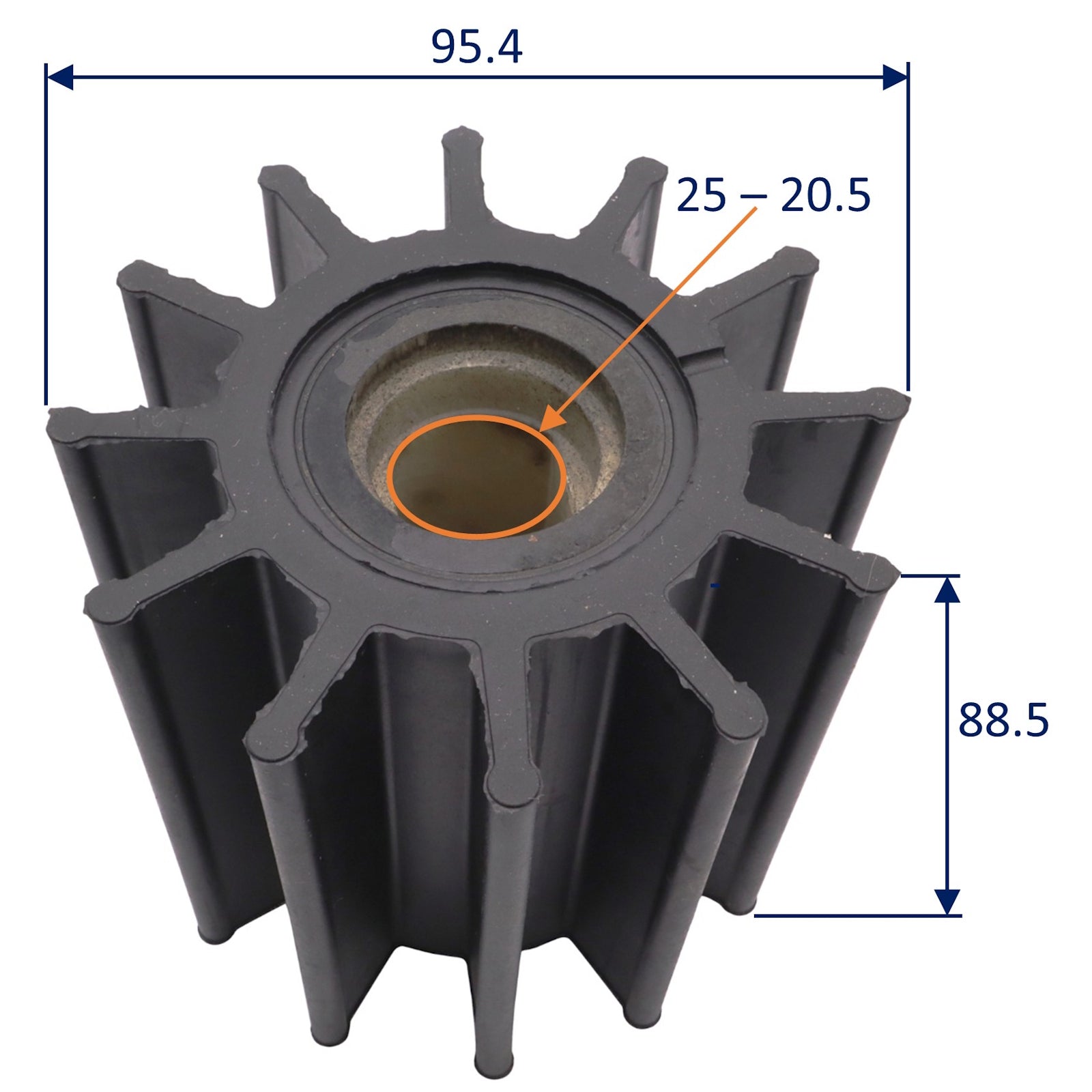

•    Outside diameter: 95mm
•    Length: 88.5mm
•    Shaft bore: 25mm (double flat drive)
•    Blades: 12
•    Material: Neoprene

Typical engine applications

•    Detroit Diesel 8V92TA, 16V92TA
•    Caterpillar 3406, 3406B, 3406C / D-336
•    Cummins VT903M / VT902

OEM / cross-reference part numbers

Jabsco 17370-0001 · Cummins 217308 / 3008503 · Caterpillar 3N1888 / 3N4859 · Detroit Diesel 8927570 · Doosan 60.06804-0011 · Kaishyama FT-A6 · JMP 8300-01 · DJ Pump 088-1201 · CEF 500152
