Osculati 16.194.20 Replacement Impeller (CEF 123)

Product Description

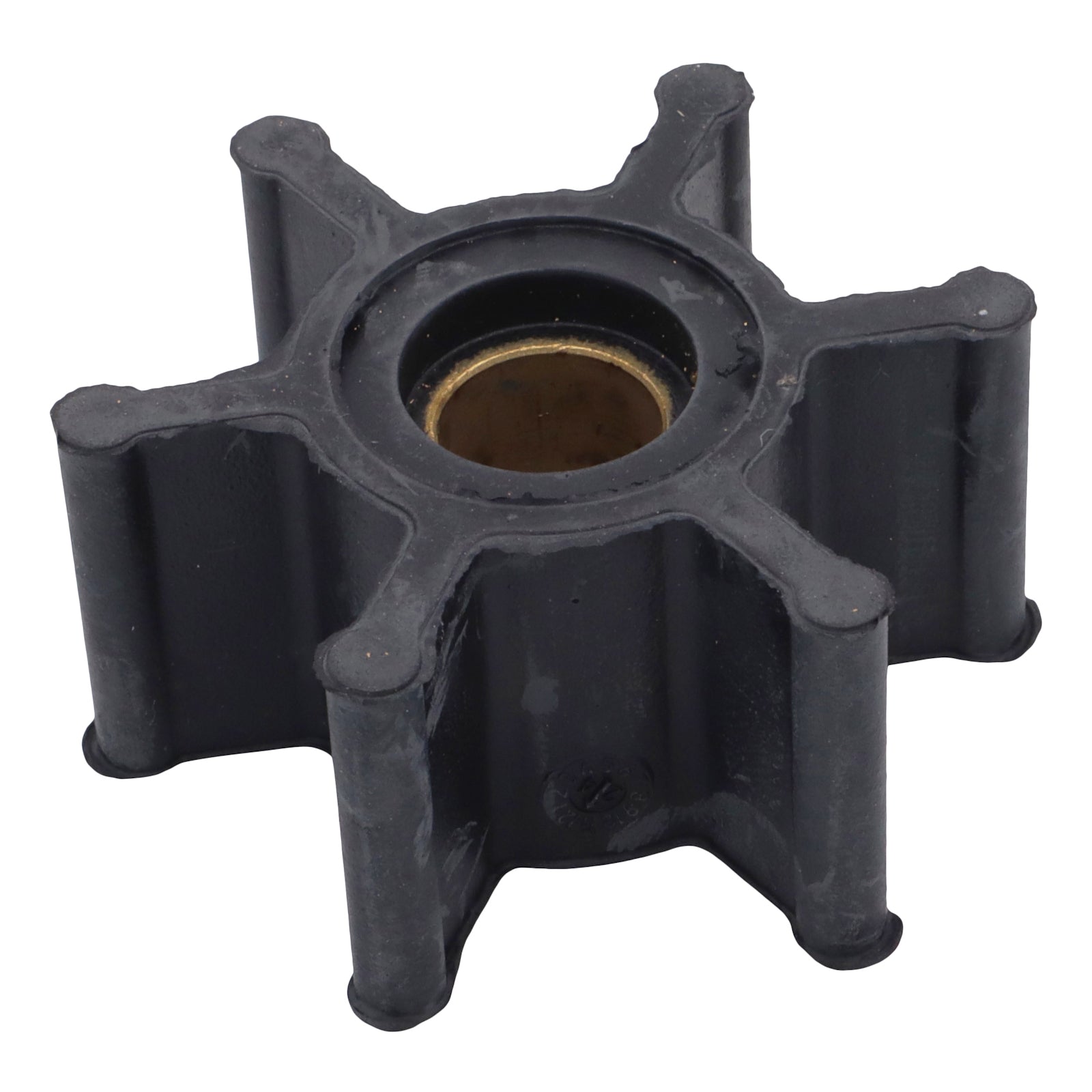

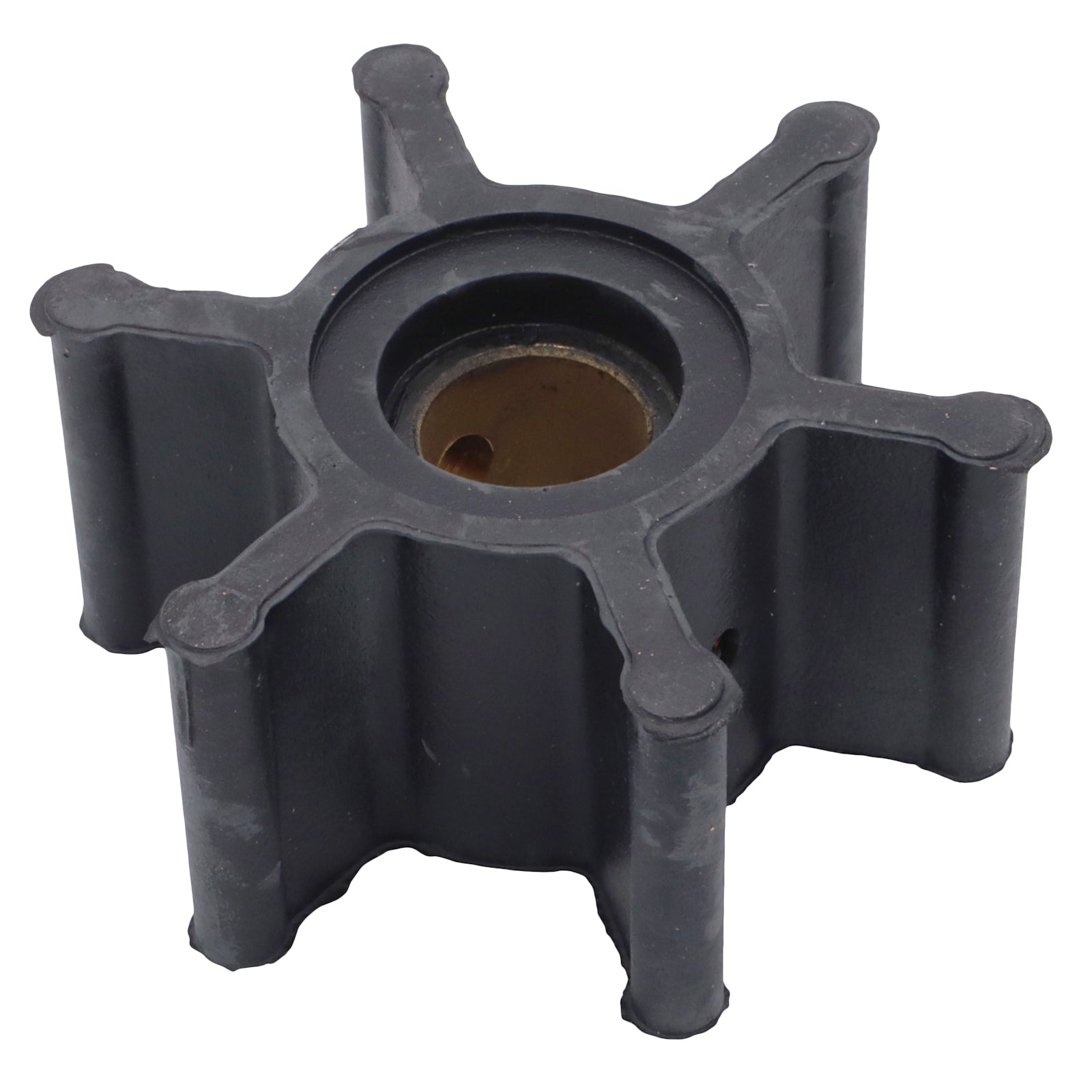

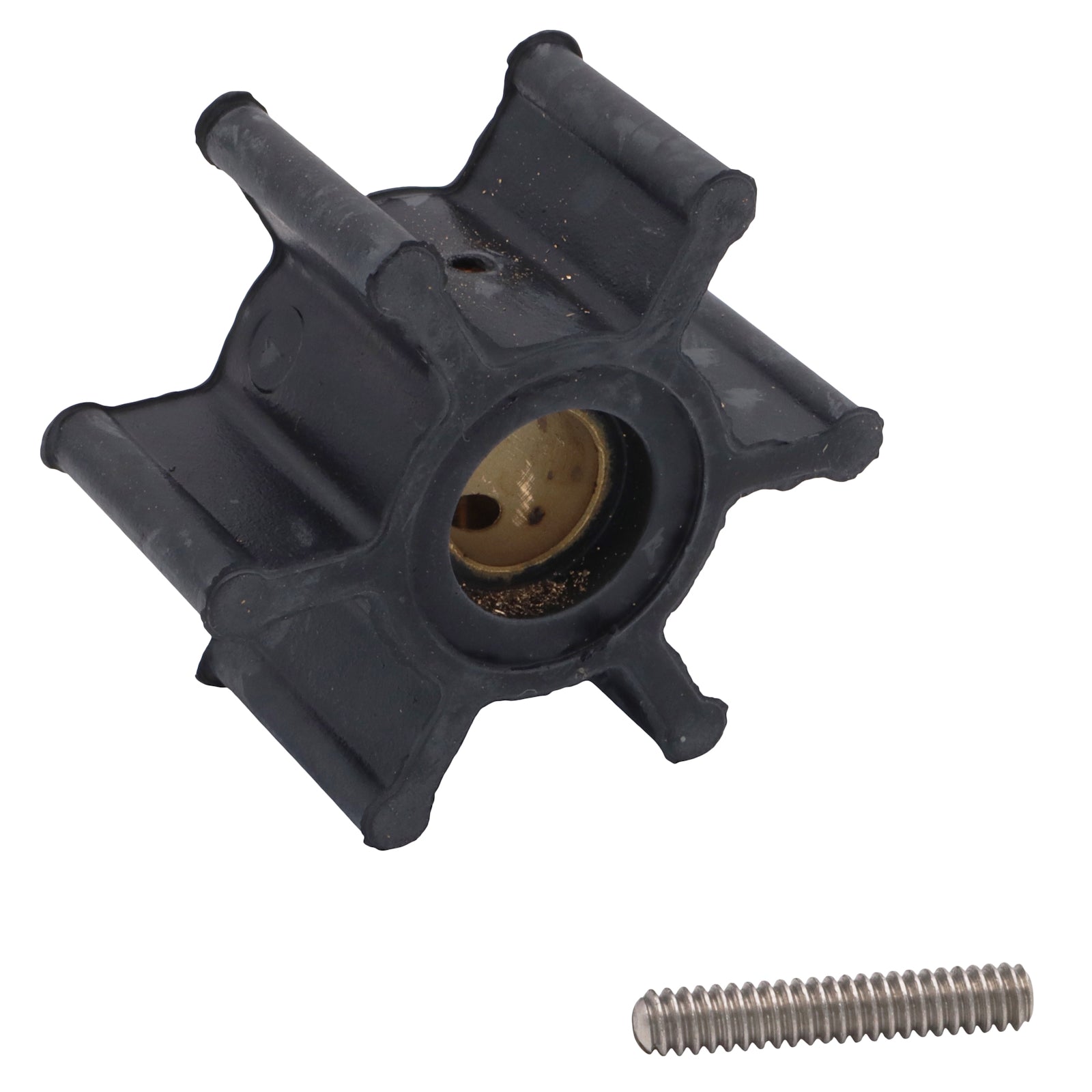

6-blade neoprene impeller for the raw water cooling pump fitted to Solé Diesel Mini series inboard engines. Pin drive, 12mm shaft. Supplied with grub screw.

Solé Diesel's compact Mini series engines — ranging from the Mini 11 through to the Mini 48 — are a popular and long-established choice for sailing yachts, particularly in the European cruising market. The raw water pump on these engines is straightforward to service, and the impeller is the one component that should be replaced on a fixed annual schedule regardless of hours run.

Important — two versions exist: Solé uses two different pump shaft diameters across the Mini range. This is the 12mm shaft version (Solé 312.11.008). An alternative 10mm shaft version also exists (Solé 321.11.008 / CEF 131) and is not interchangeable with this part. Check the pump housing or your engine's service documentation for the correct shaft size before ordering — the two impellers are very similar in external appearance.

Specifications

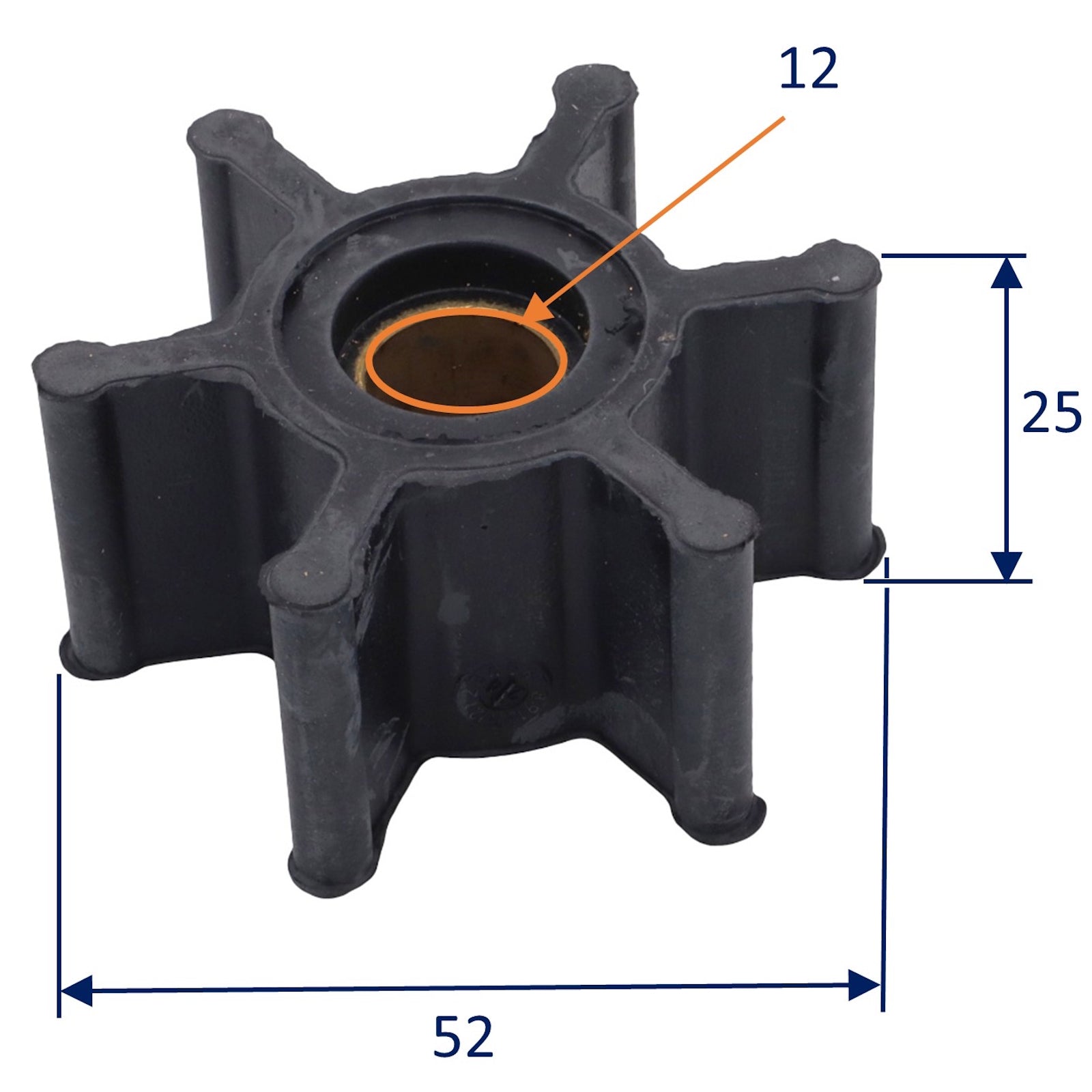

•    Outside diameter: 52mm
•    Length: 25mm
•    Shaft bore: 12mm (pin drive)
•    Blades: 6
•    Material: Neoprene
•    Supplied with: grub screw

Compatible Solé Diesel engine models

Mini 11 · Mini 17 · Mini 23 · Mini 26 · Mini 29 · Mini 33 · Mini 34 · Mini 44 · Mini 48

Compatible pump models

Solé pump 33211000 (12mm shaft) · 33411000 · 33811000

OEM / cross-reference part numbers

Solé Diesel 312.11.008 / 31211008 / 31211008R · Mercruiser 312-11-008 · CEF 500123
