Osculati 16.194.17 Replacement Impeller Kit (CEF 103)

Product Description

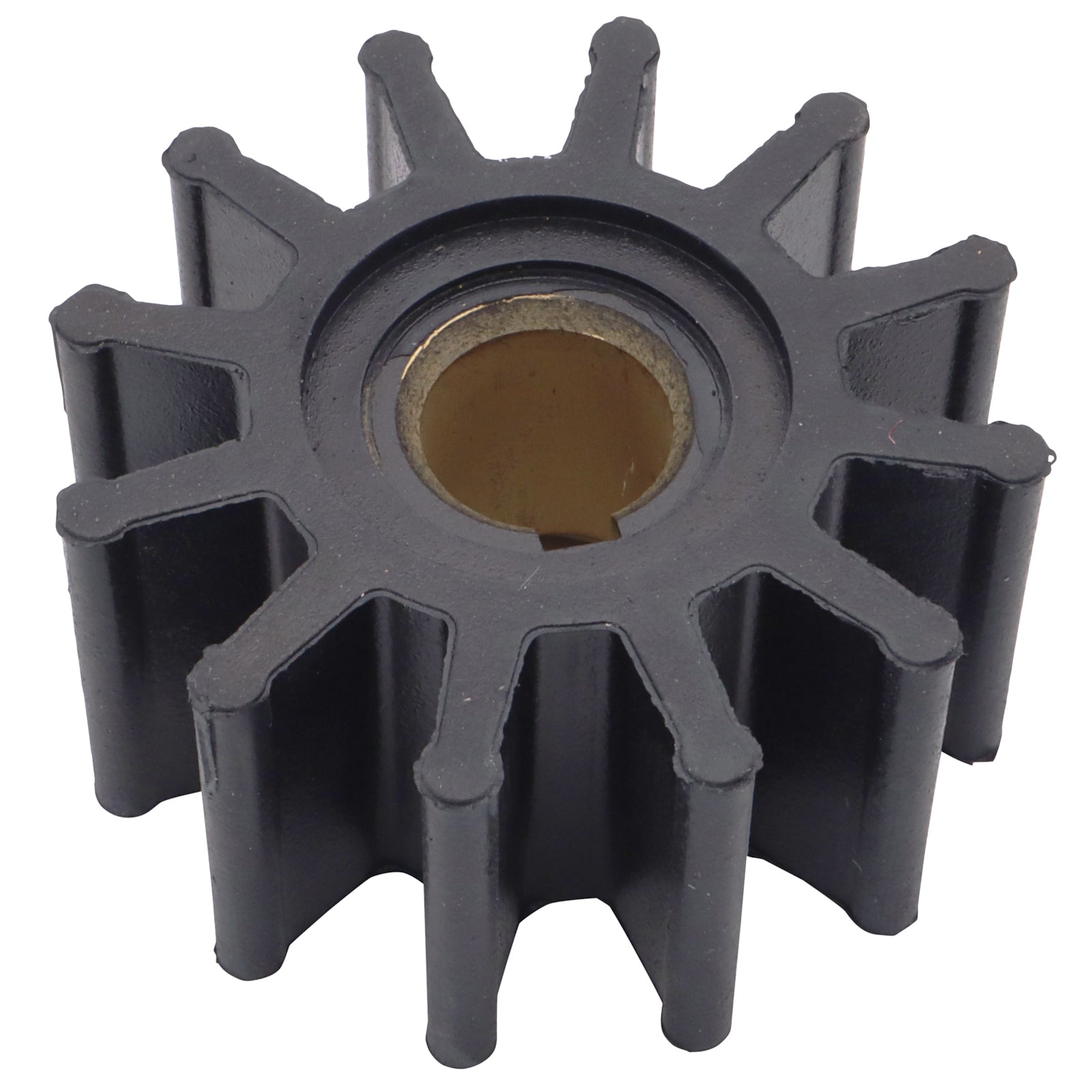

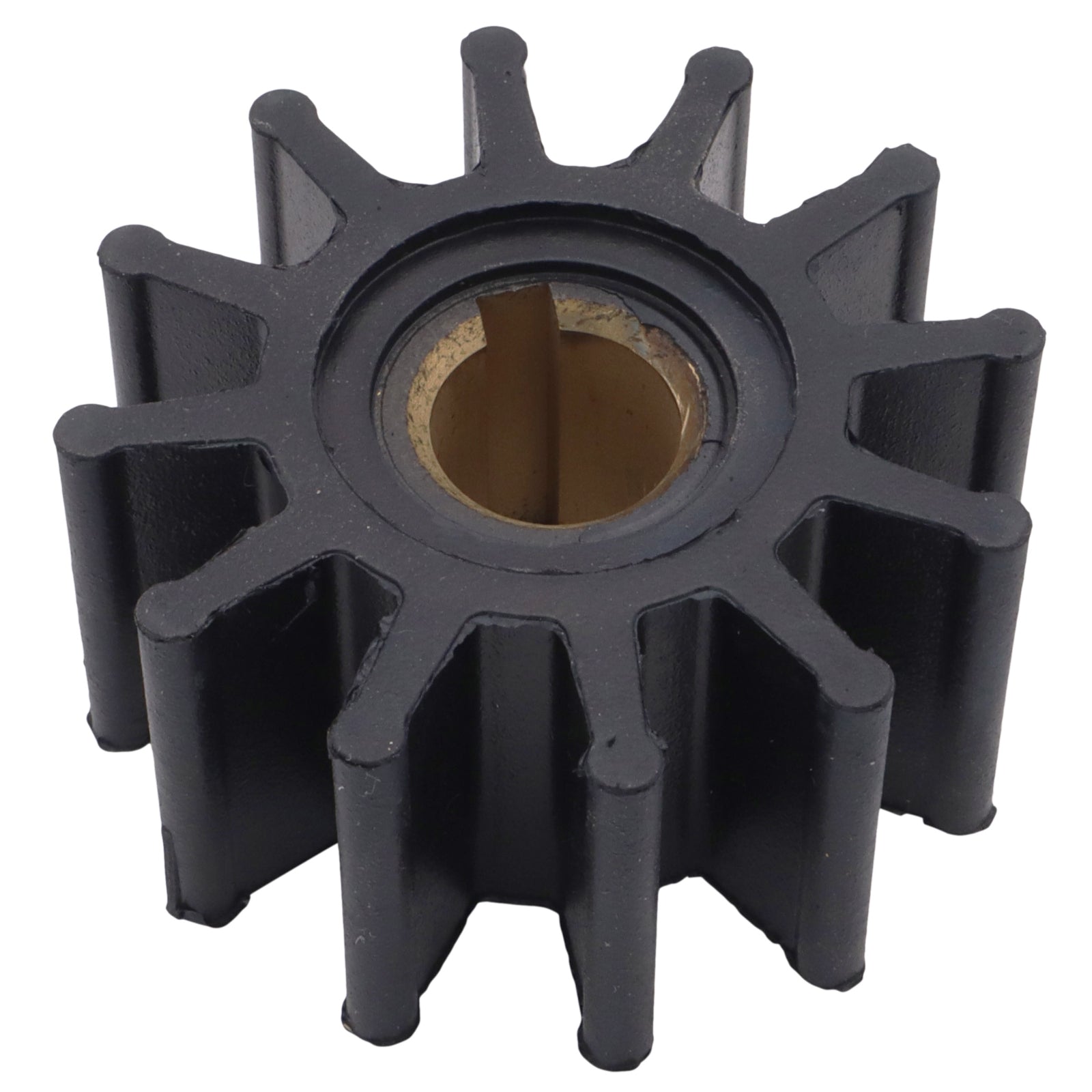

12-blade neoprene impeller kit for Sherwood G-series raw water pumps, fitting a broad range of inboard petrol and diesel engines including Perkins 4107 and 4108 marine diesels, Crusader, Pleasurecraft, Chris-Craft and Universal inboard petrol engines, Westerbeke and Onan generator sets, and Yamaha marine inboards. Keyed drive, 16mm shaft. Supplied with gasket and cap.

This is one of the more versatile impellers in the Sherwood G-series range, covering pump models from the G1 through to the K75B. The Perkins 4107 and 4108 deserve a particular mention — these classic four-cylinder marine diesels powered a very large number of cruising yachts and workboats from the 1970s through to the 1990s, and there remains a substantial installed base in older vessels still actively sailing. If you're servicing a Perkins-engined passage maker of that era with a Sherwood pump, this is likely the impeller you need.

Note on dimensions: SM-2206 shares the same 62mm OD and 5/8" keyed shaft as SM-2195 (Sherwood 9000K) in this range, but is significantly deeper at 31.7mm versus 22mm. The two are not interchangeable. Confirm your Sherwood pump model before ordering.

Specifications

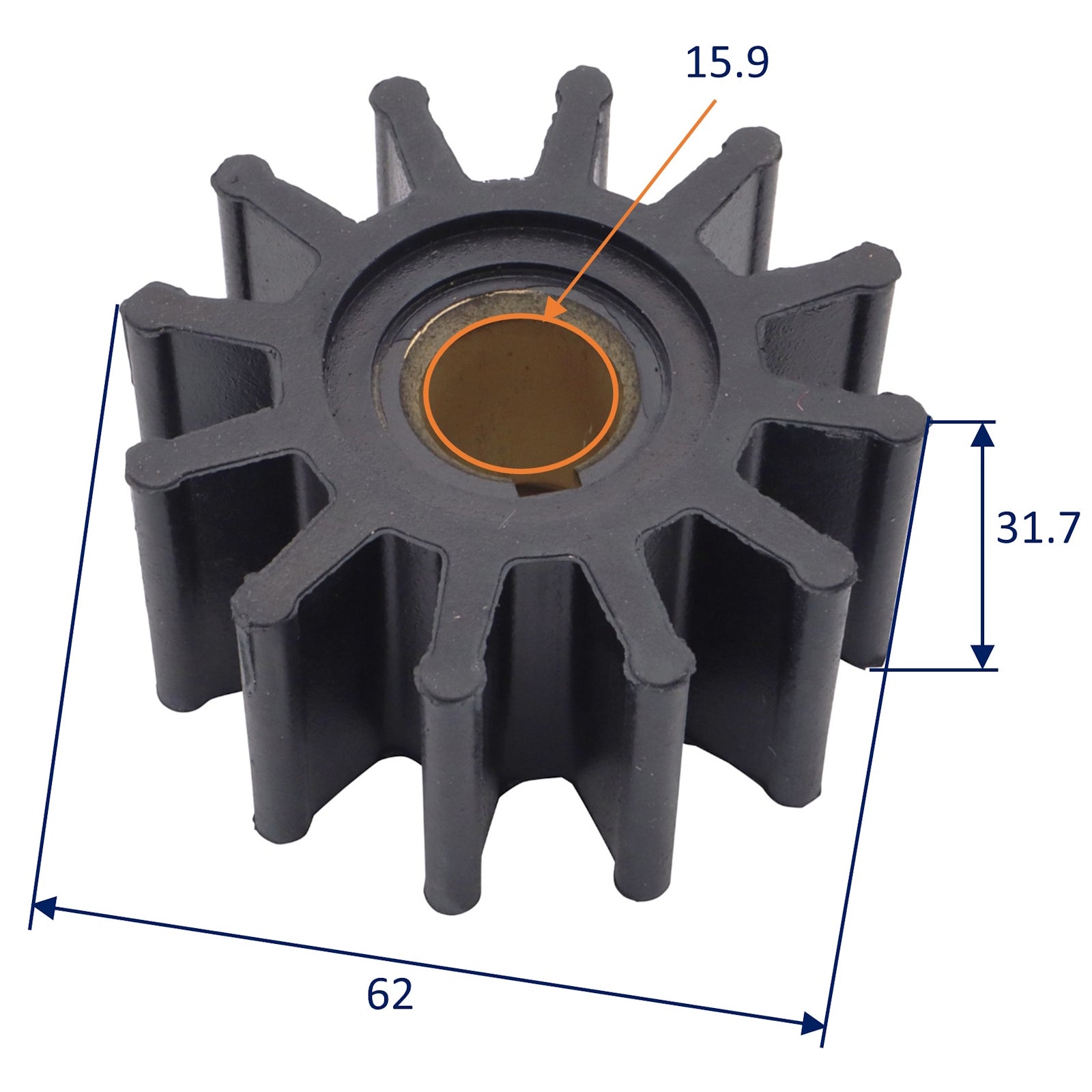

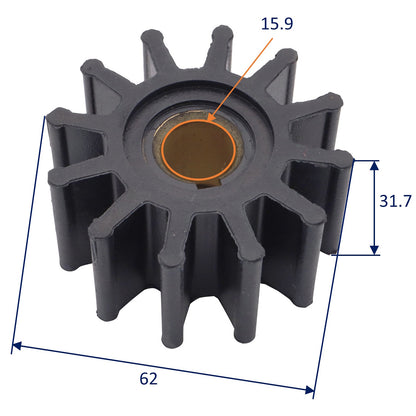

•    Outside diameter: 62mm
•    Length: 31.7mm
•    Shaft bore: 16mm (⅝" keyed drive, 3/16" keyway)
•    Blades: 12
•    Material: Neoprene

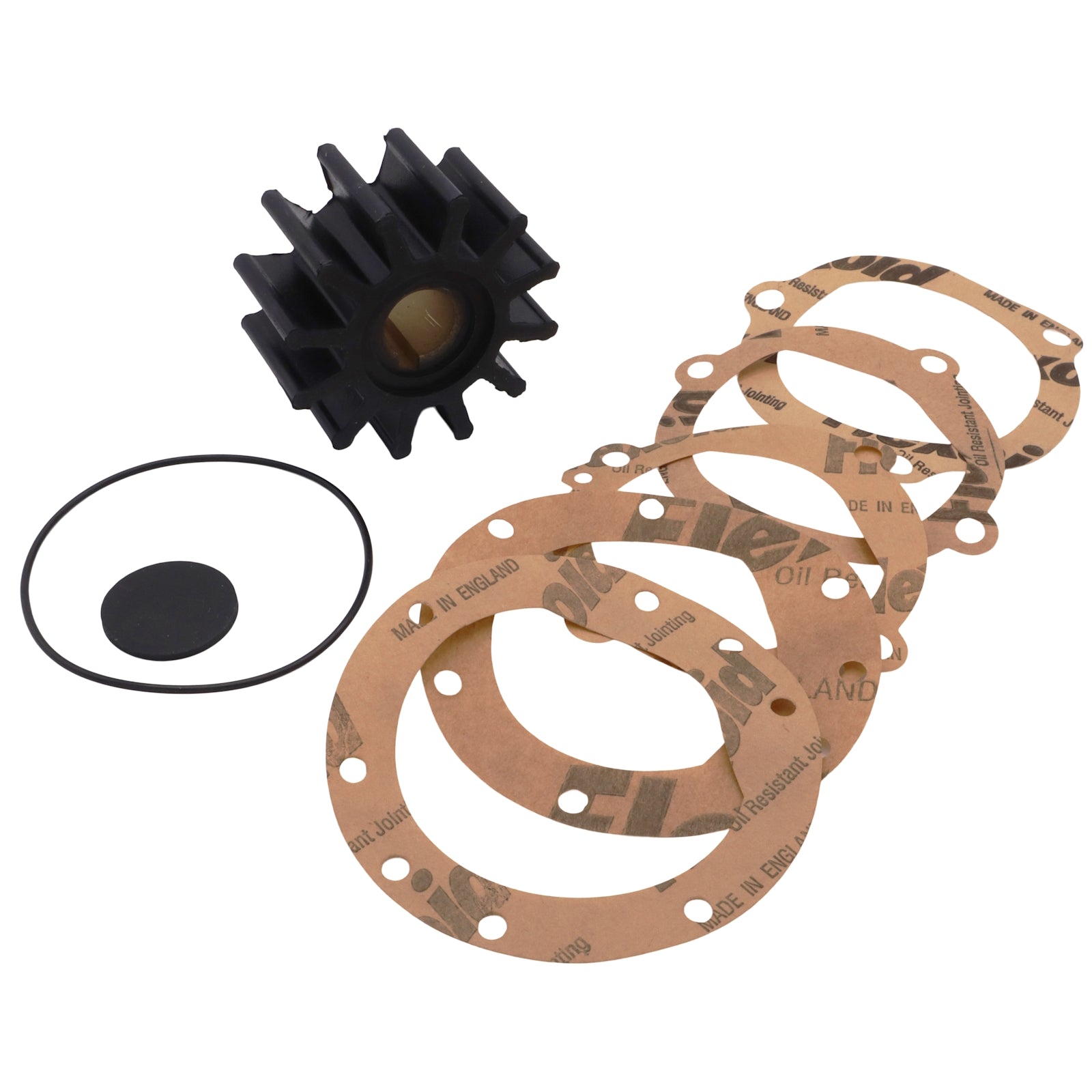

•    Supplied with: gasket and cap

Compatible Sherwood pump models

G1 · G2 · G15 · G20 · G21 · G22 · G30-2 · G30-2B · G9901 · G9902 · G9903 · H10 · J70 · K75 · K75B

Typical engine and generator applications

•    Perkins: 4107 and 4108 marine diesel (with pump NA003335)
•    Westerbeke generator sets: 12.0 and 15.0kW series (BTD / BTDA / BTDB / WTA variants)
•    Onan / Cummins: marine generator sets
•    Crusader marine petrol engines
•    Pleasurecraft marine petrol engines
•    Chris-Craft inboard petrol engines
•    Universal marine petrol engines
•    Yamaha marine inboard engines (YSC-101-03 series)
•    Volvo / OMC (3854286 series)

OEM / cross-reference part numbers

Jabsco 18838-0001 · Sherwood 9959K / 11148 · Johnson 09-701B-1 · Volvo/OMC 3854286 / 835512-5 · Perkins 24880178 / NA900010 · Westerbeke 11418 / 11907 / 33104 · Onan 132-0117 / 132-0317 · Crusader 22212 · Pleasurecraft RP061015 · Yamaha YSC-101-03-01-0C · DJ Pump 08-38-1201 · CEF 500103 · Sierra 18-3046 / 18-3060
