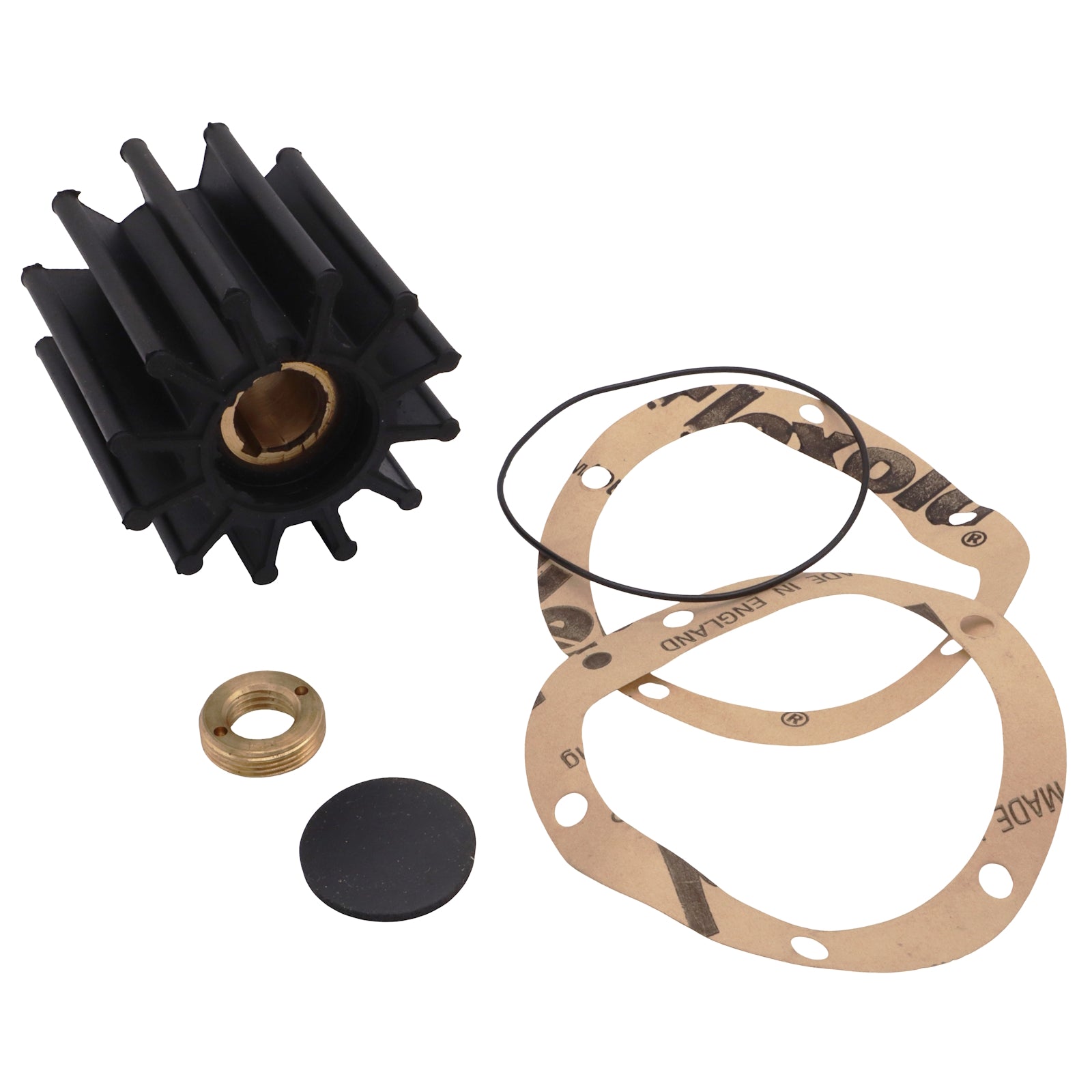

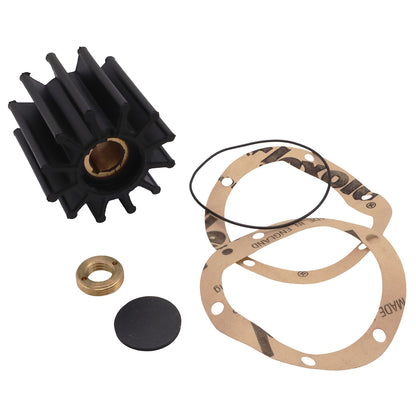

Osculati 16.194.15 Replacement Impeller Kit (CEF 164)

Product Description

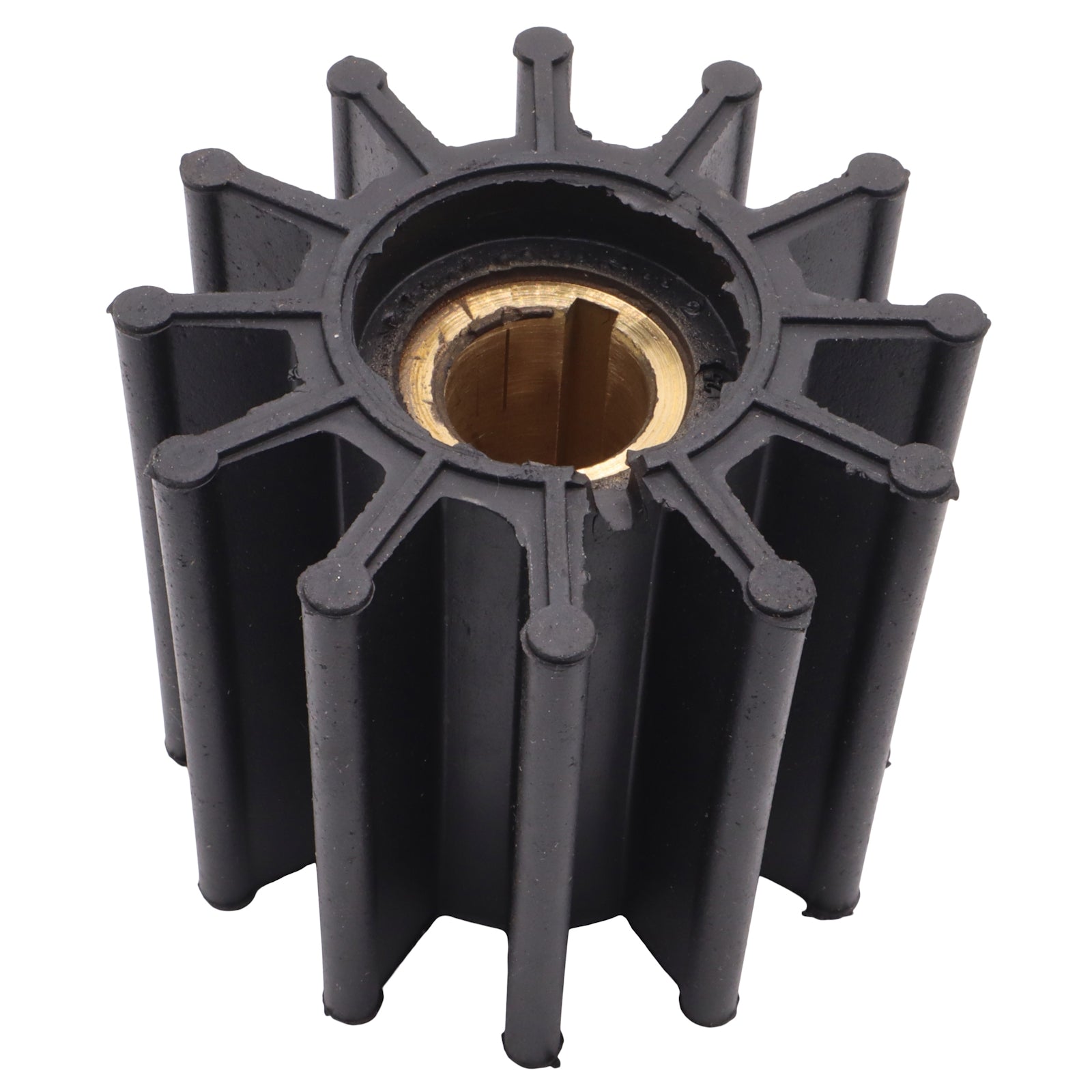

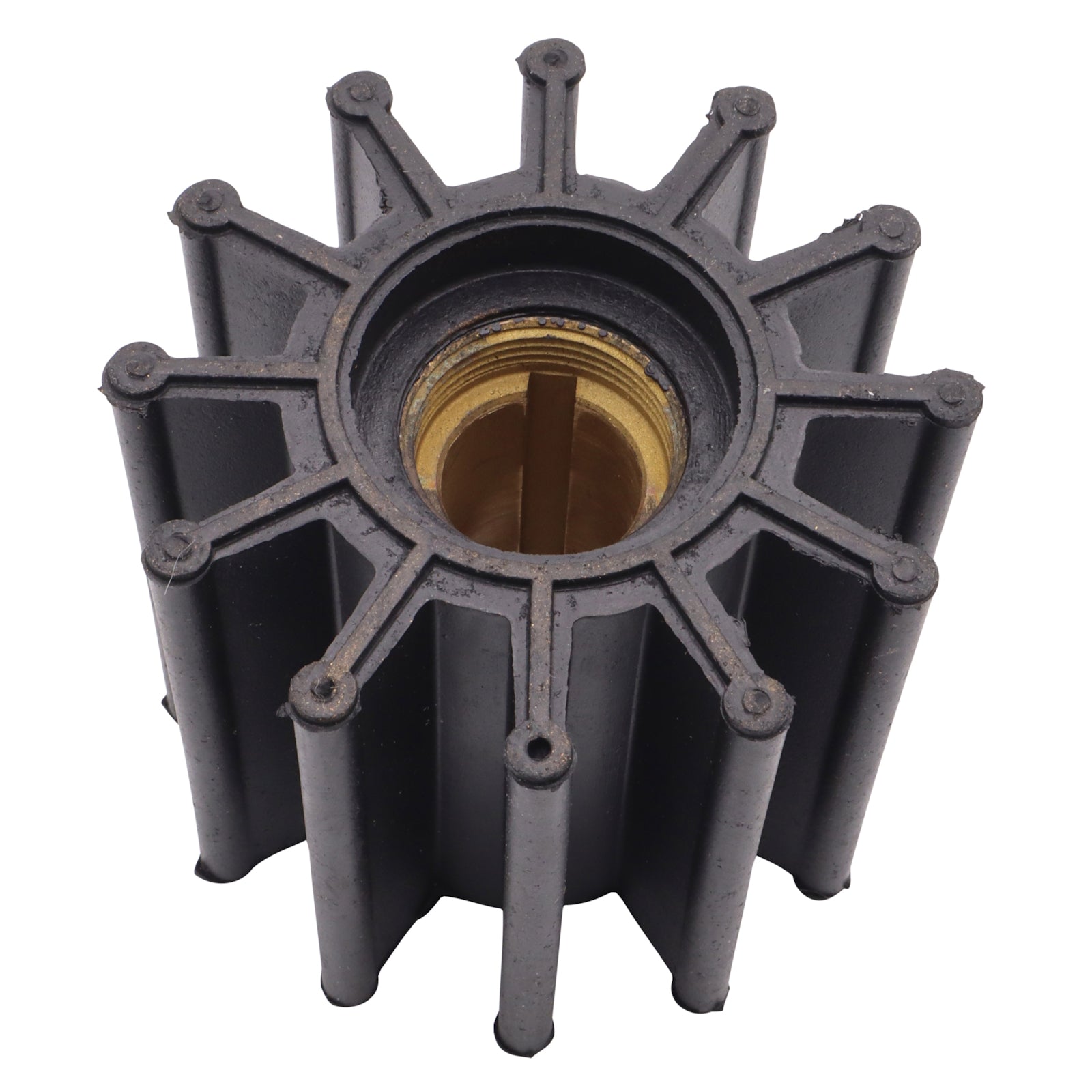

12-blade neoprene impeller kit for Sherwood P-series raw water pumps as fitted to medium and heavy commercial marine diesels including Cummins 6B and L10 series, Caterpillar 3306 and 3406, John Deere marine PowerTech and Doosan marine engines. Keyed drive, 20mm shaft. Supplied with gasket and cap.

At 82.5mm OD and 73mm length this is one of the larger impellers in the range, and the Sherwood P-series pumps it serves are correspondingly substantial — commercial-grade units designed for continuous duty in working vessels. The application list runs from mid-sized fishing boats and workboats through to larger commercial craft, and the engines involved operate under sustained load in ways that make routine impeller replacement a genuine operational necessity rather than a precaution.

The drive type is keyed — 20mm shaft with 3/16" keyway. Confirm your pump model from the plate on the pump body before ordering; the P-series spans a wide range of variants and not all take the same impeller.

Specifications

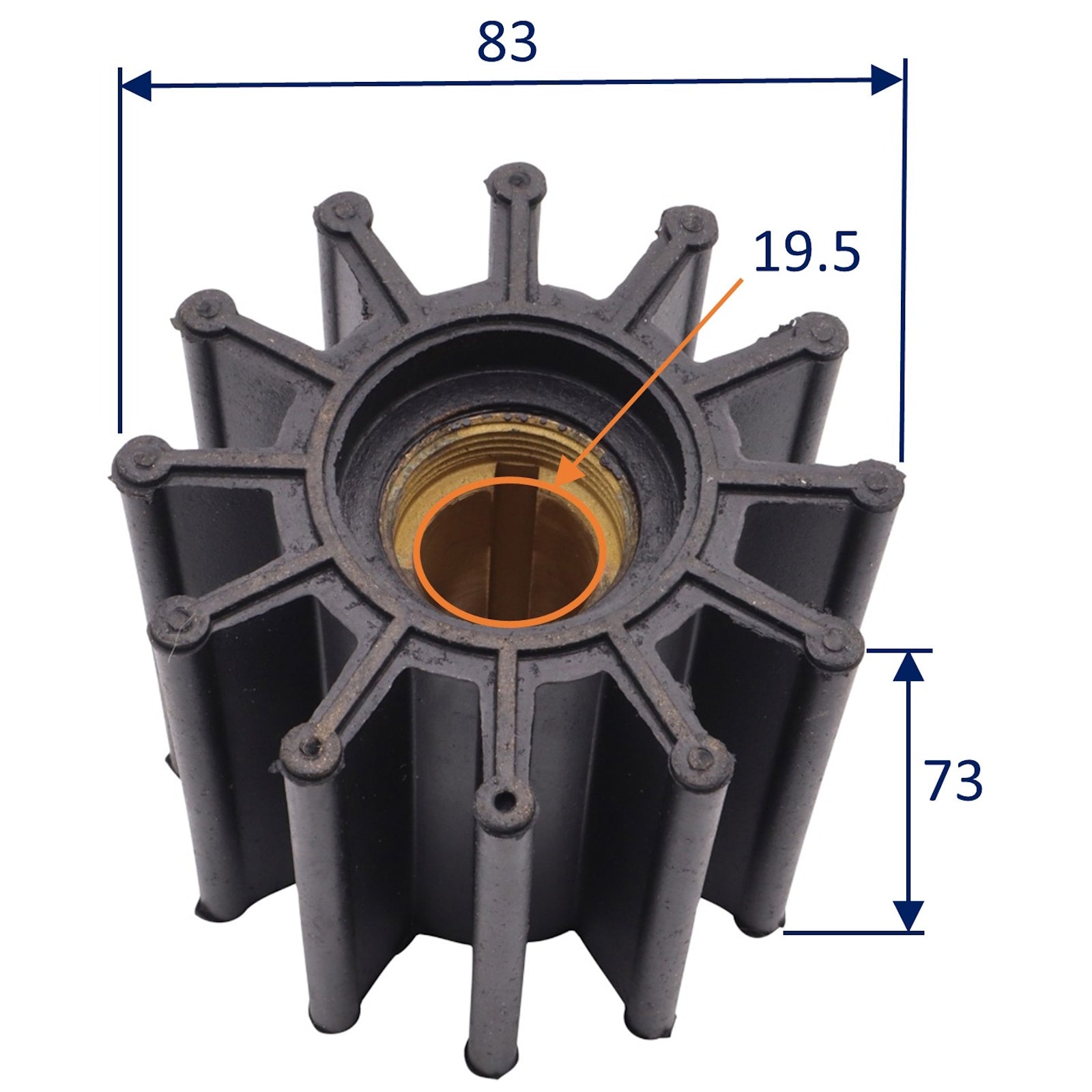

•    Outside diameter: 82.5mm
•    Length: 73mm
•    Shaft bore: 20mm (keyed drive, 3/16" keyway)
•    Blades: 12
•    Material: Neoprene
•    Supplied with: gasket and cap

Compatible Sherwood pump models

P173 · P176 · P176X · P176-02 · P1710 · P1710X · P1710-02 · P1711 · P1712 · P1716B · P1719 · P1719F · P1722B · P1726 · P1726X · P1727FB · P1730F · P1731F · P1732X · P1732-02

Typical engine applications

•    Cummins: 6B series / L10 marine diesel (3802444 / 3897337 / 3916852 / 3925236)
•    Caterpillar: 3306 / 3406 series (1W5664 / 7E0321)
•    John Deere marine PowerTech (RE49896)
•    Doosan / Daewoo marine engines (65.06804-0003)
•    Kohler marine diesel (GM18793)

OEM / cross-reference part numbers

Jabsco 18958-0001 · Sherwood 17000K / 21931 · Johnson 09-704B / 09-704BT-1 · Cummins 3802444 / 3897337 / 3916852 / 3925236 · Caterpillar 1W5664 / 7E0321 · John Deere RE49896 · Doosan 65.06804-0003 · Kohler GM18793 · JMP 7600 · DJ Pump 08-19-1201 · CEF 500164
