Osculati 16.194.00 Replacement Impeller

Product Description

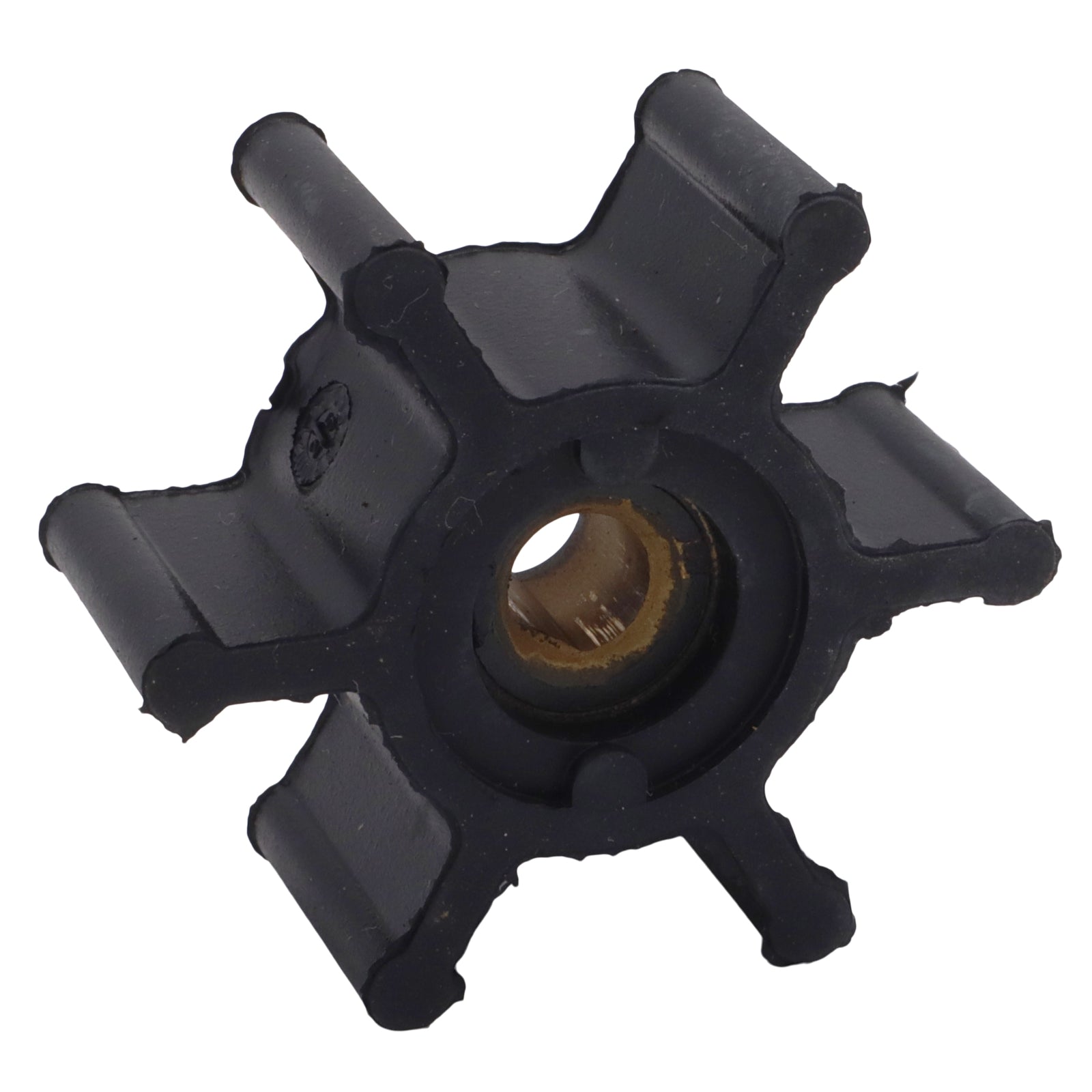

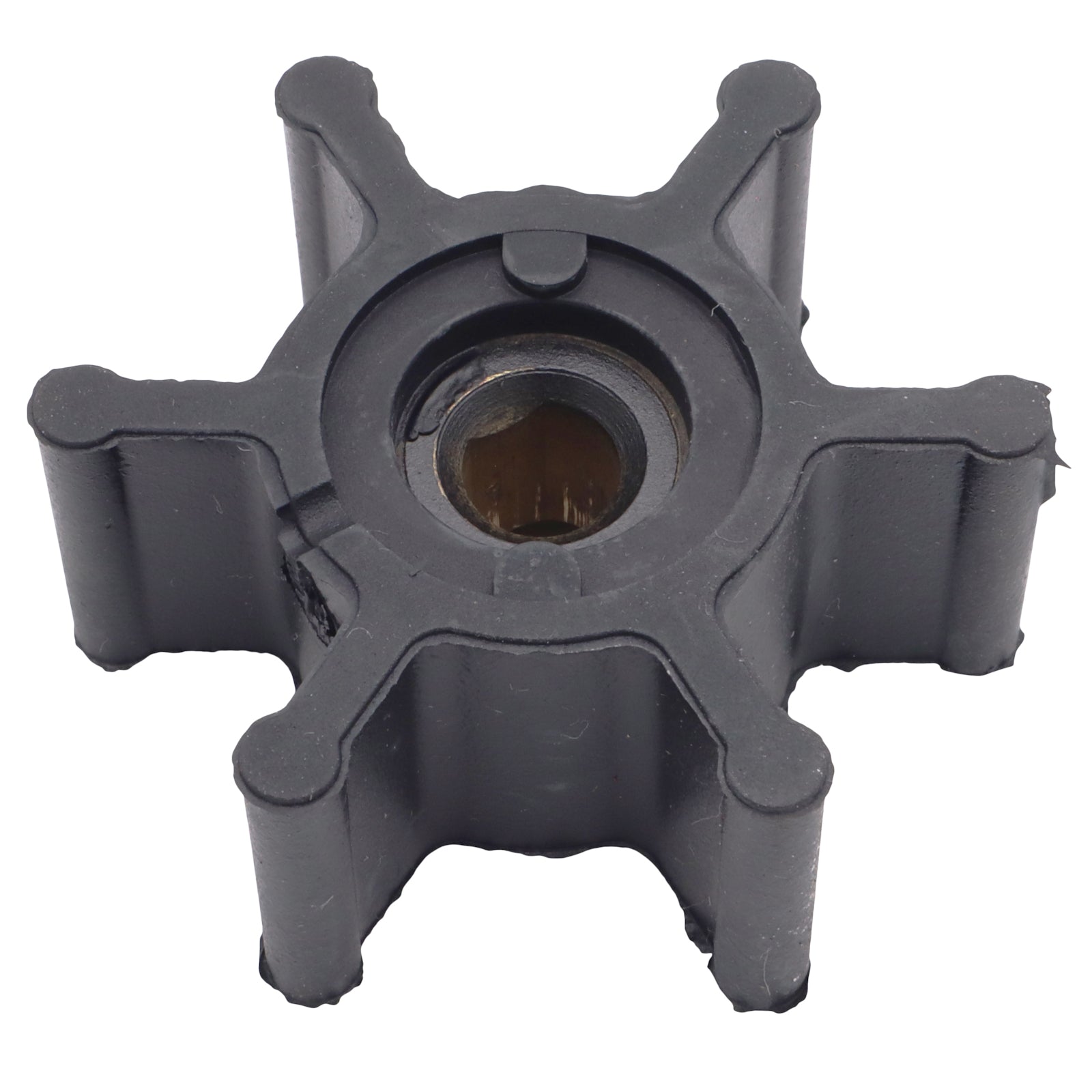

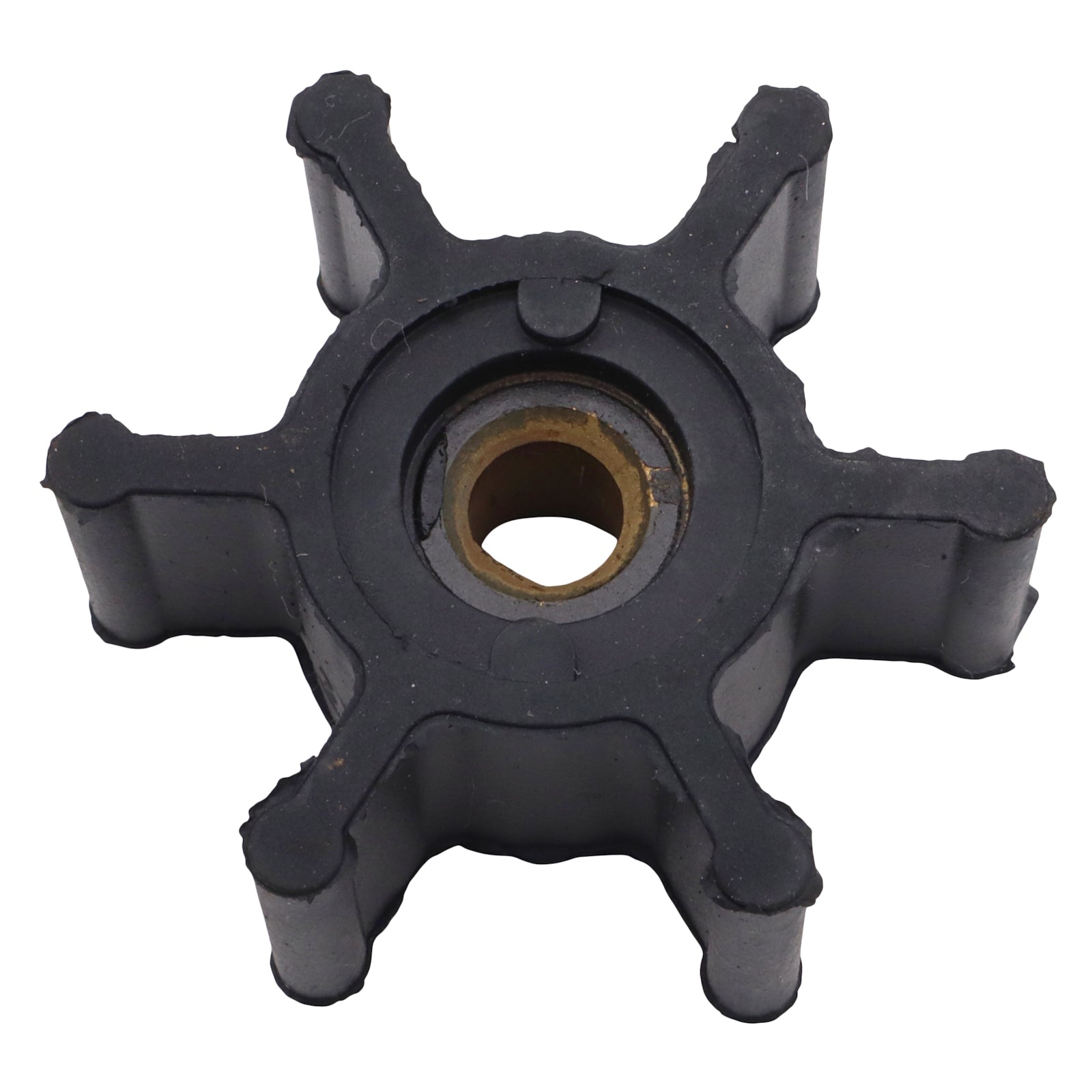

6-blade neoprene impeller for Jabsco raw water pump applications with a 7.31mm bore (8mm hub insert). Supplied without accessories.

This is one of the smallest-shaft impellers in the Osculati inboard range, and carries no specific CEF cross-reference code — which reflects its position as a general-purpose entry within the Jabsco small pump family rather than a named engine-specific product.

Confirming your application: before ordering, check your pump model number against the Jabsco impeller reference for your specific pump. Two other impellers in this range share the same bore dimensions:

SM-2198 (CEF 138 / JMP 7053-01 / Jabsco 6303-0001): neoprene, same 7.31/8mm bore, 51.3mm OD and 22mm length, for Jabsco and Johnson engine cooling pump applications (Yanmar 14242-050, Onan 132-0160, Oberdorfer 6617). If you have one of these cross-reference numbers, SM-2198 is the catalogued entry for your application.

SM-2221 (CEF 238 / Vetus 50011 / Jabsco 653-0003): nitrile rubber, same bore and external dimensions, for Vetus engines and oil/fuel-contaminated water applications. If your pump handles bilge water or there is any risk of oil contamination, SM-2221 is the correct material.

If your application is not covered by SM-2198 or SM-2221 and you have confirmed your pump requires a 7.31mm bore, single flat drive impeller of approximately 51mm OD and 22mm length in neoprene, SM-2220 is the correct part. Please contact us with your pump model number if you are unsure — we can confirm before you order.

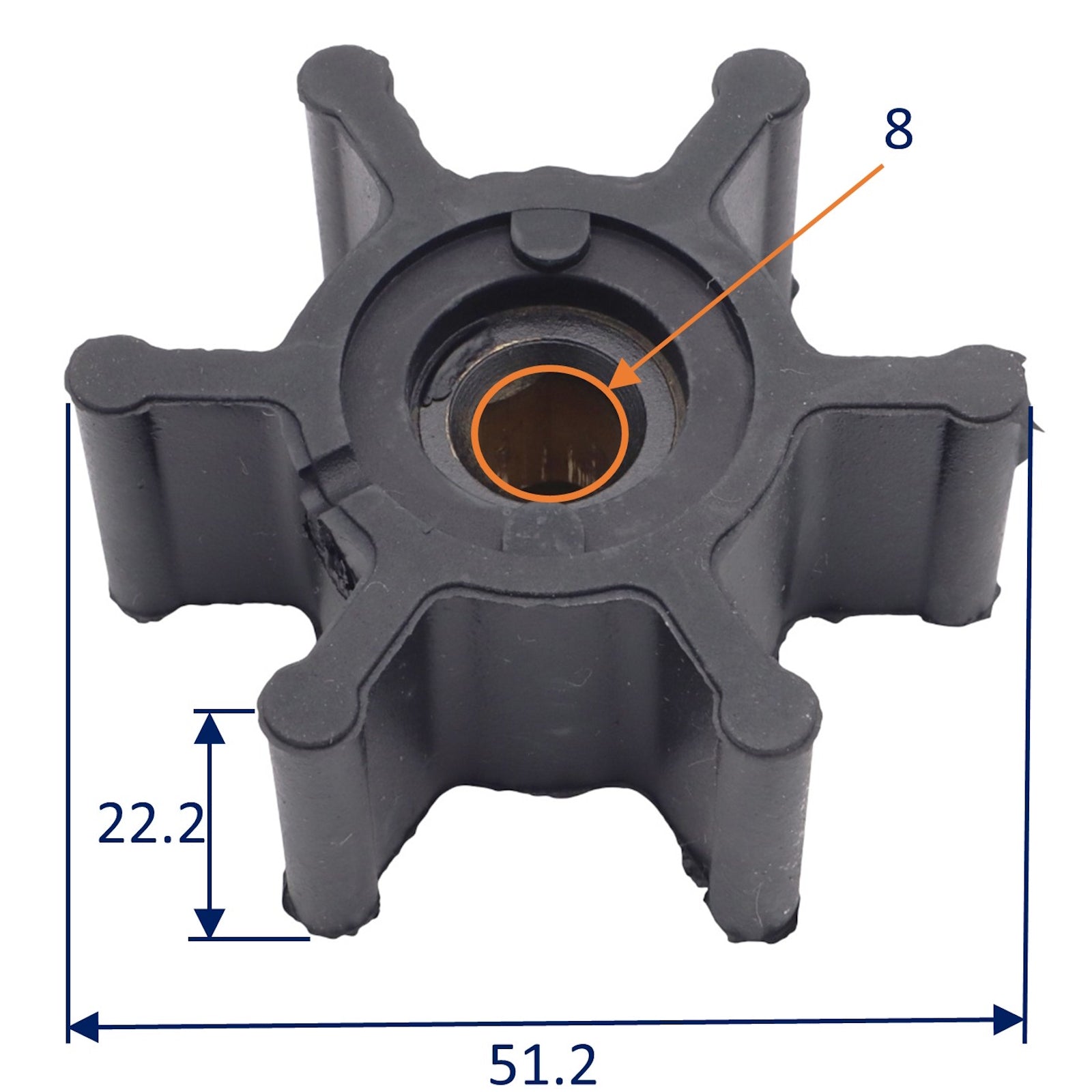

Specifications

•    Outside diameter: approximately 51mm
•    Length: approximately 22mm
•    Shaft bore: 7.31mm (8mm hub insert, single flat drive)
•    Blades: 6
•    Material: Neoprene
•    Supplied: impeller only
