Marine Power Outlet With USB-A & USB-C Including Digital Voltmeter Display

Product Description

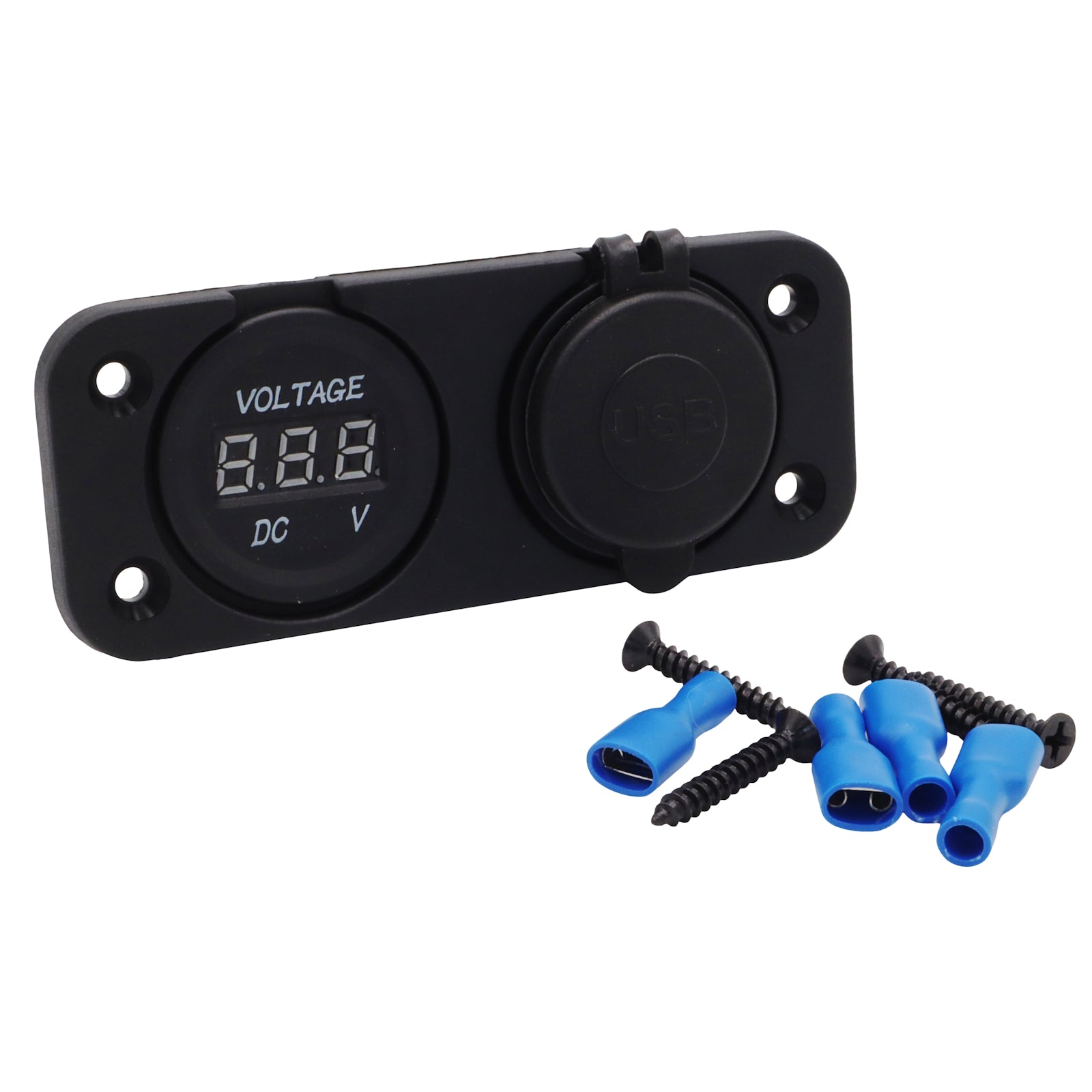

Marine 12V power outlet, including digital voltmeter, USB-A and USB-C sockets.

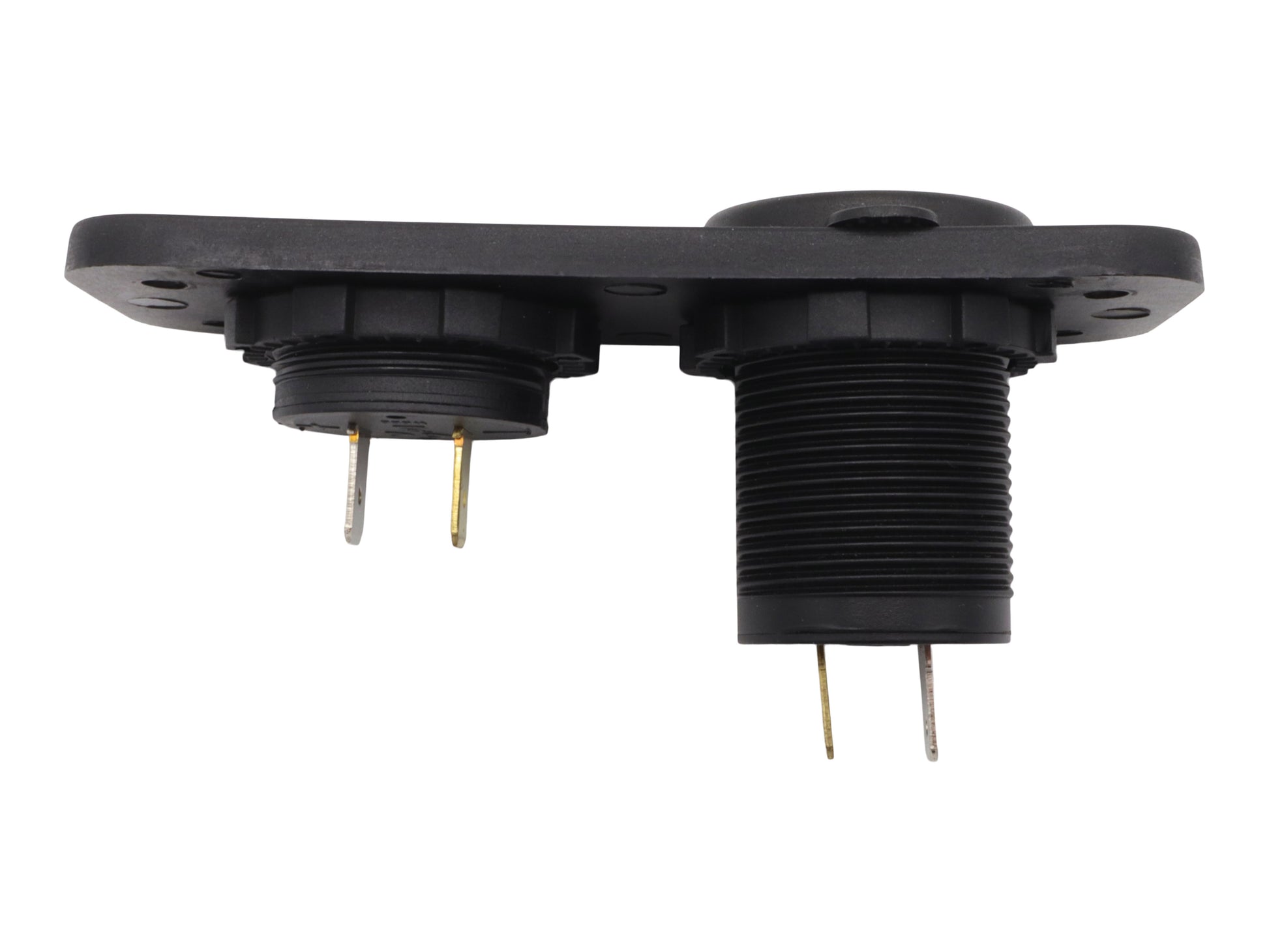

This power outlet unit can be mounted into a panel or bulkhead up to 6mm thickness (the limiting factor for this is the length of the barrel / nut for the volt-meter part of the unit).

Installation involves making two holes (29 or 30mm) for the two barrels, which have securing nuts which are tightened from the rear.  Also the face plate comes with 4 fixing holes (screws are included).

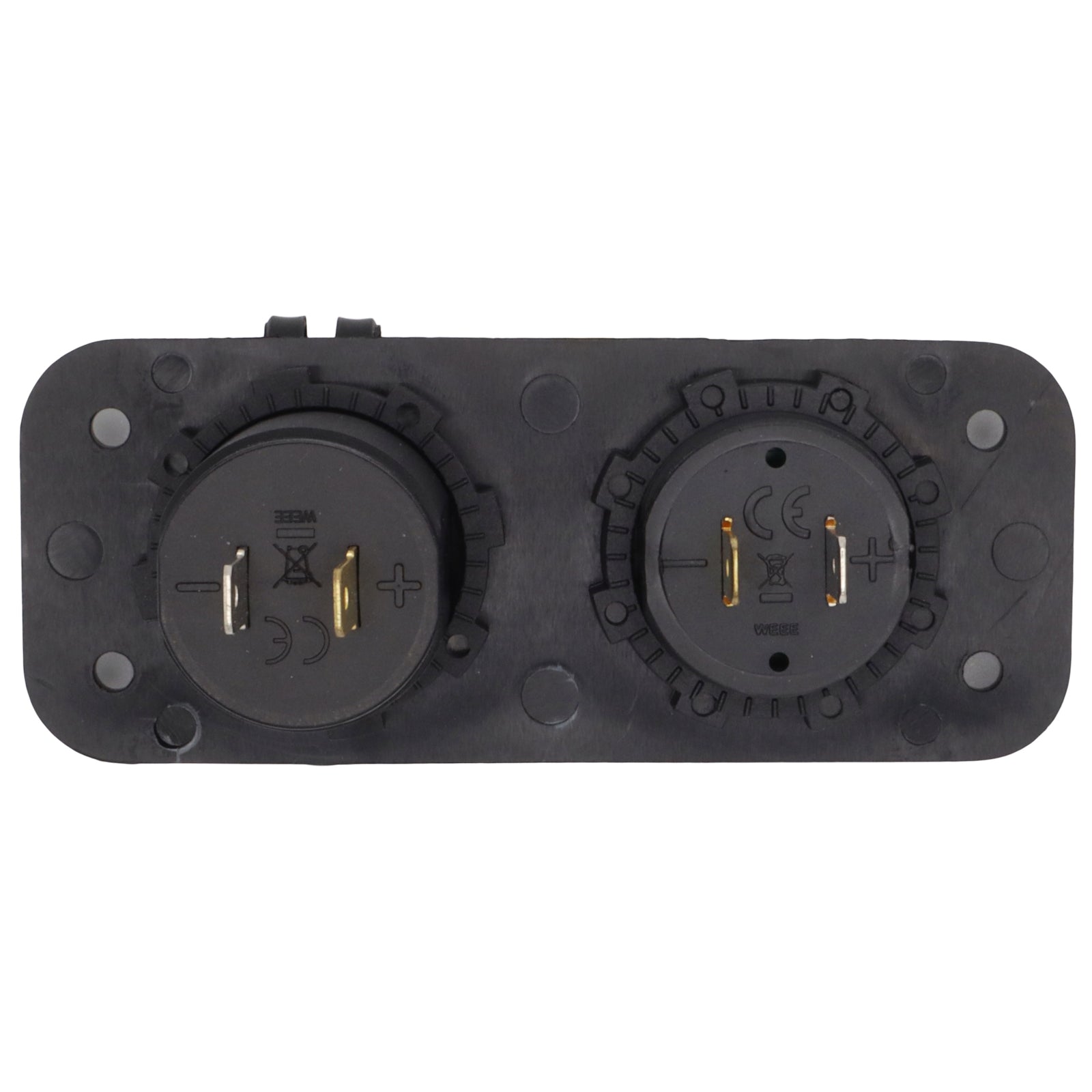

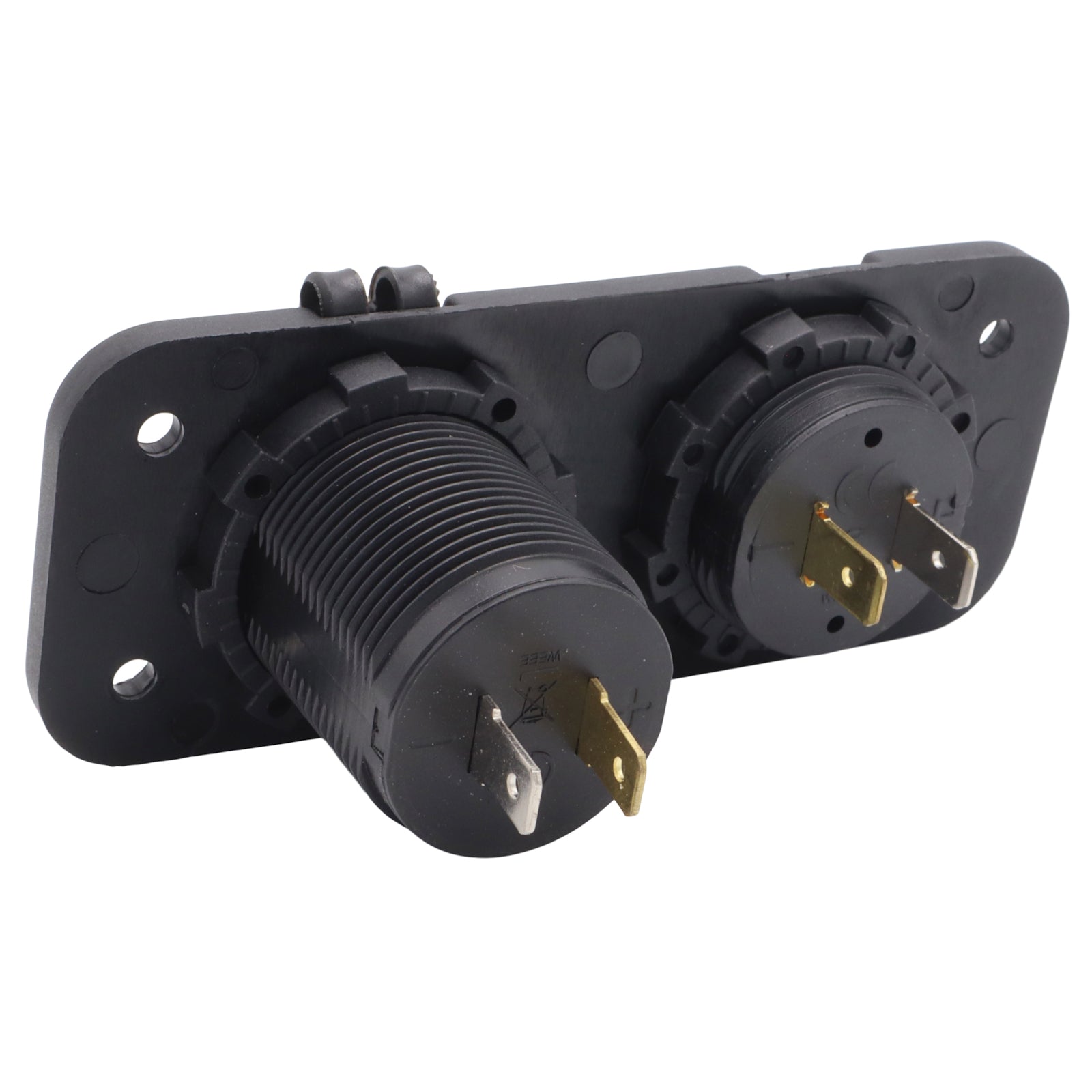

This unit (volt-meter, and USB socket) require 12V power to be fed to them via their spade terminals.

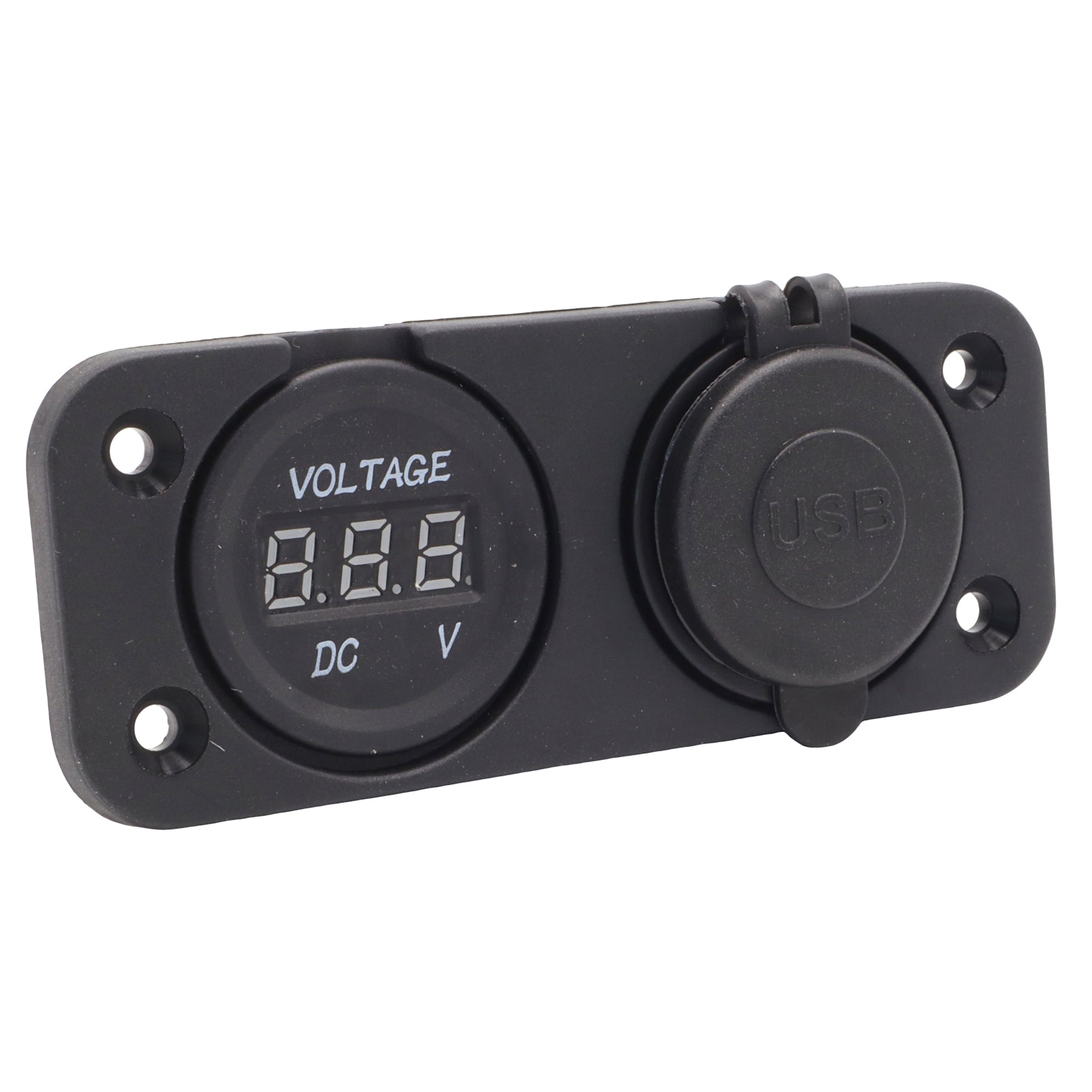

The digital voltmeter operates from 8 to 32V. The USB power outlet comes with a rubber protection cap for keeping water out when not in use.

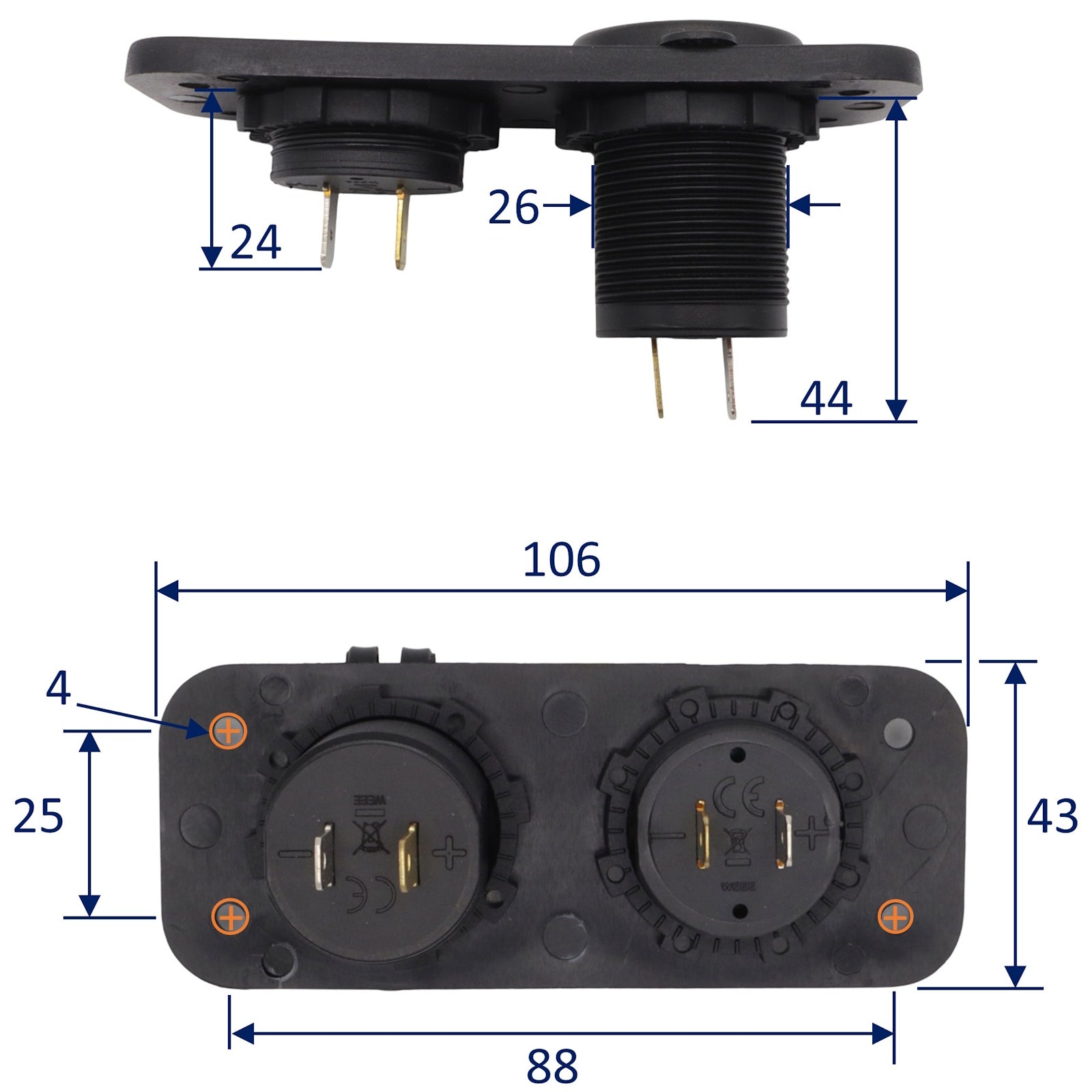

See pictures for detailed dimensions.

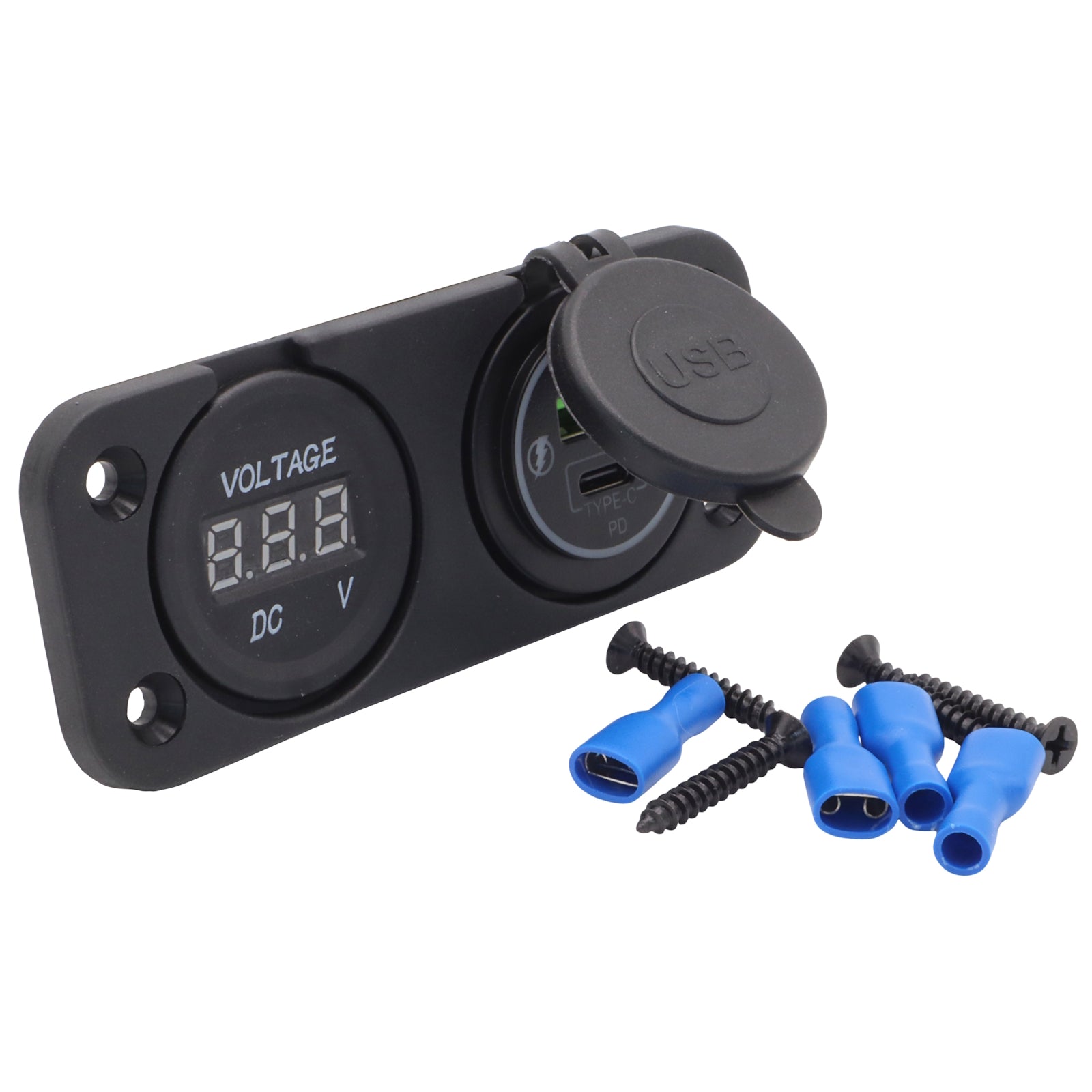

•    Black Nylon face plate with fixing screws
•    Digital voltmeter 8 to 32V

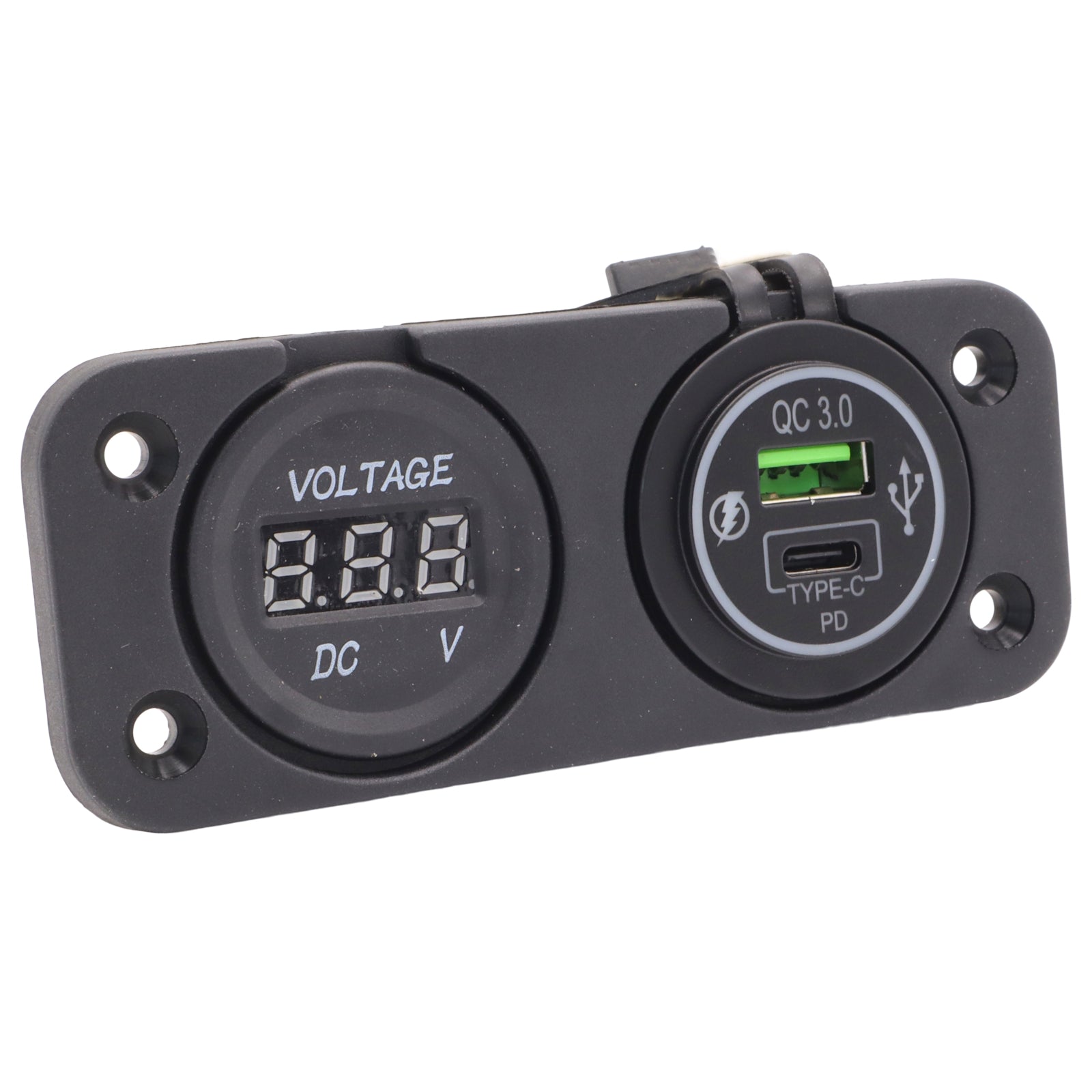

•    USB plug type A+C

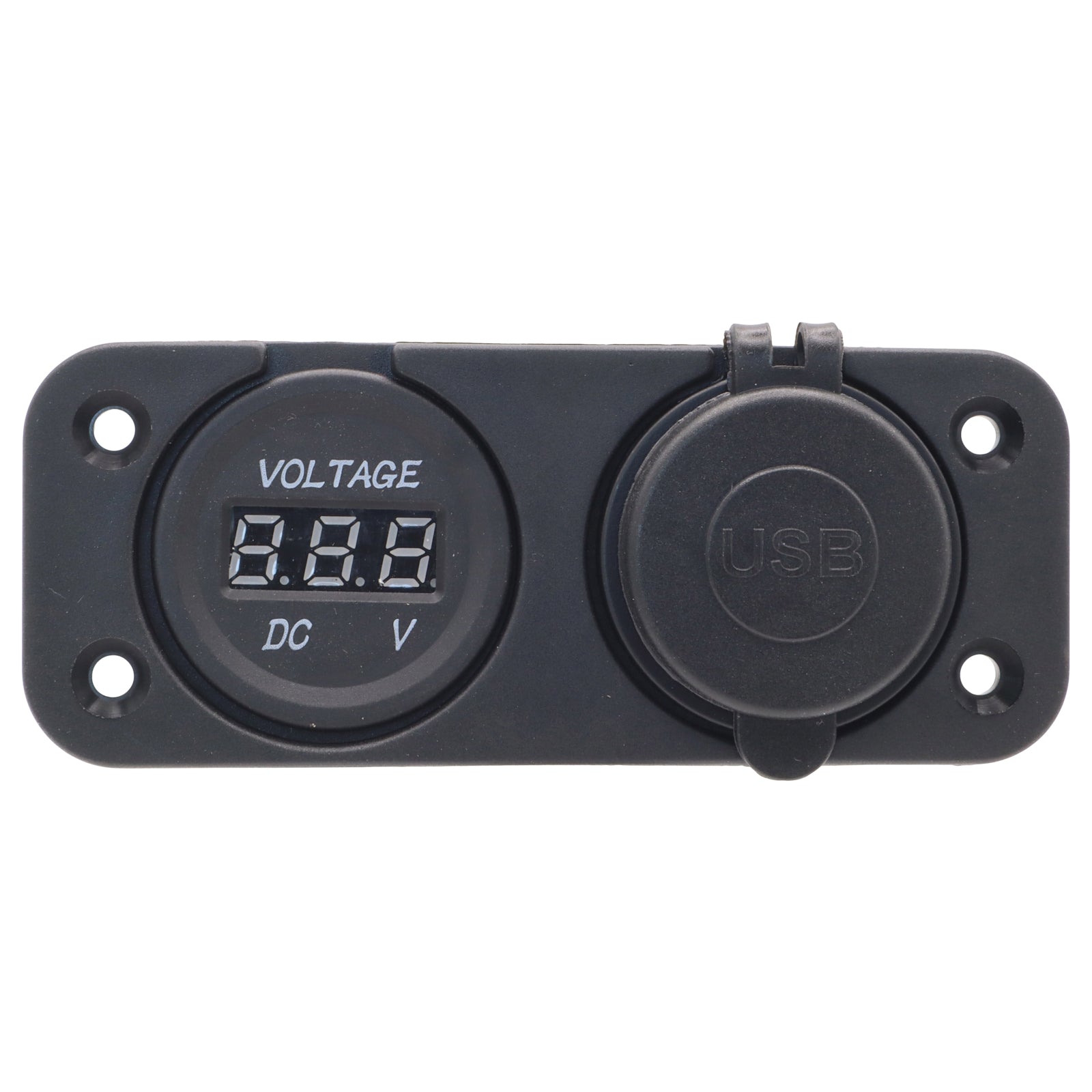

•    Waterproof cover for the USB power outlet
