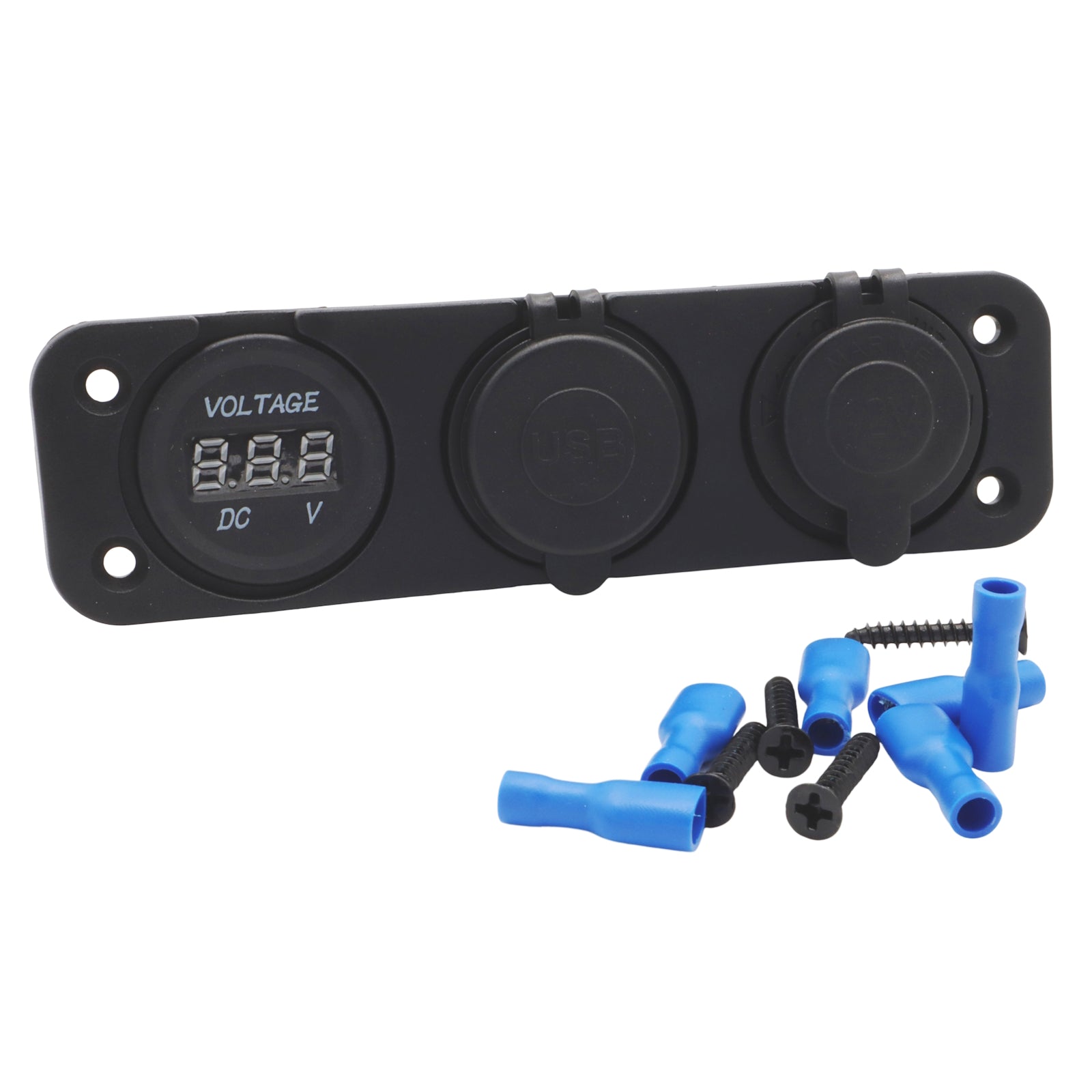

Marine Power Outlet With USB-A & USB-C – Includes Cigarette Lighter Socket & Digital Voltmeter Display

Product Description

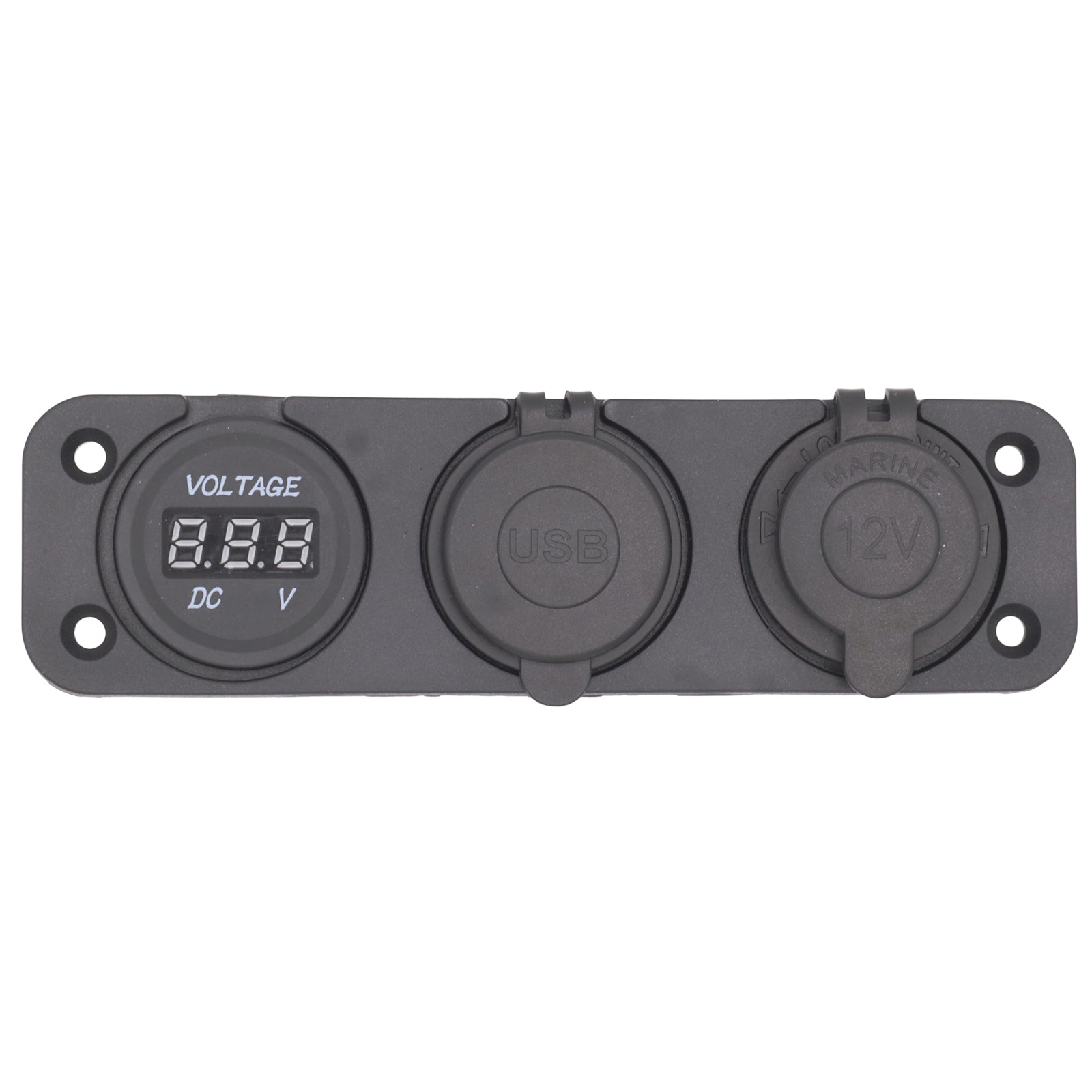

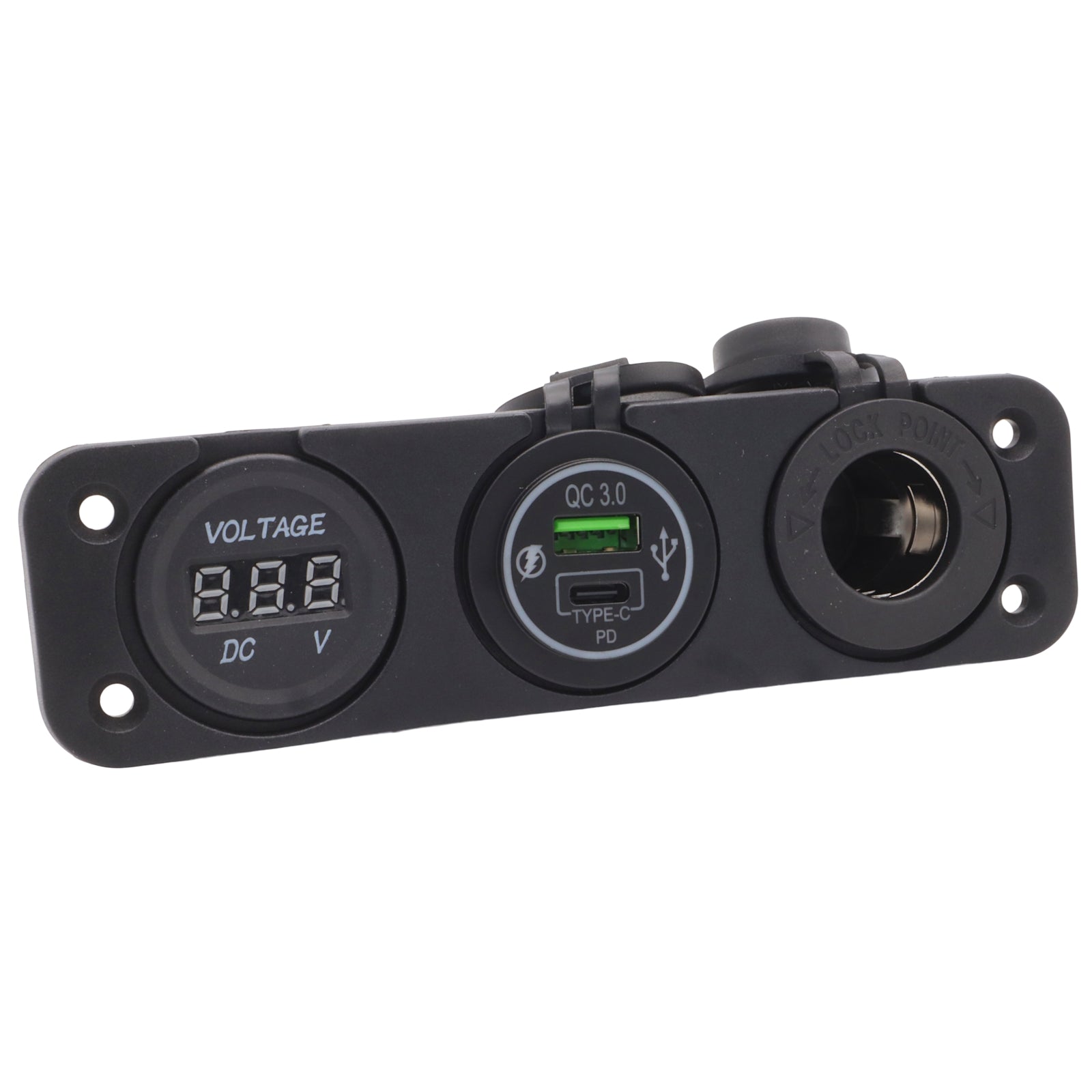

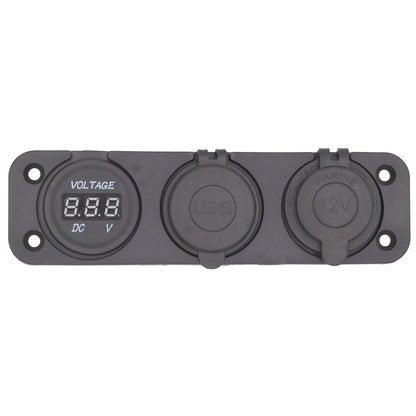

Marine 12V power outlet, including digital voltmeter, USB-A and USB-C sockets as well as the traditional ‘cigarette lighter’ socket.

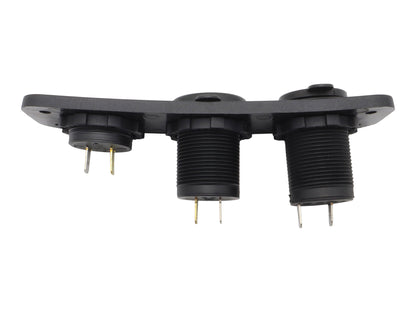

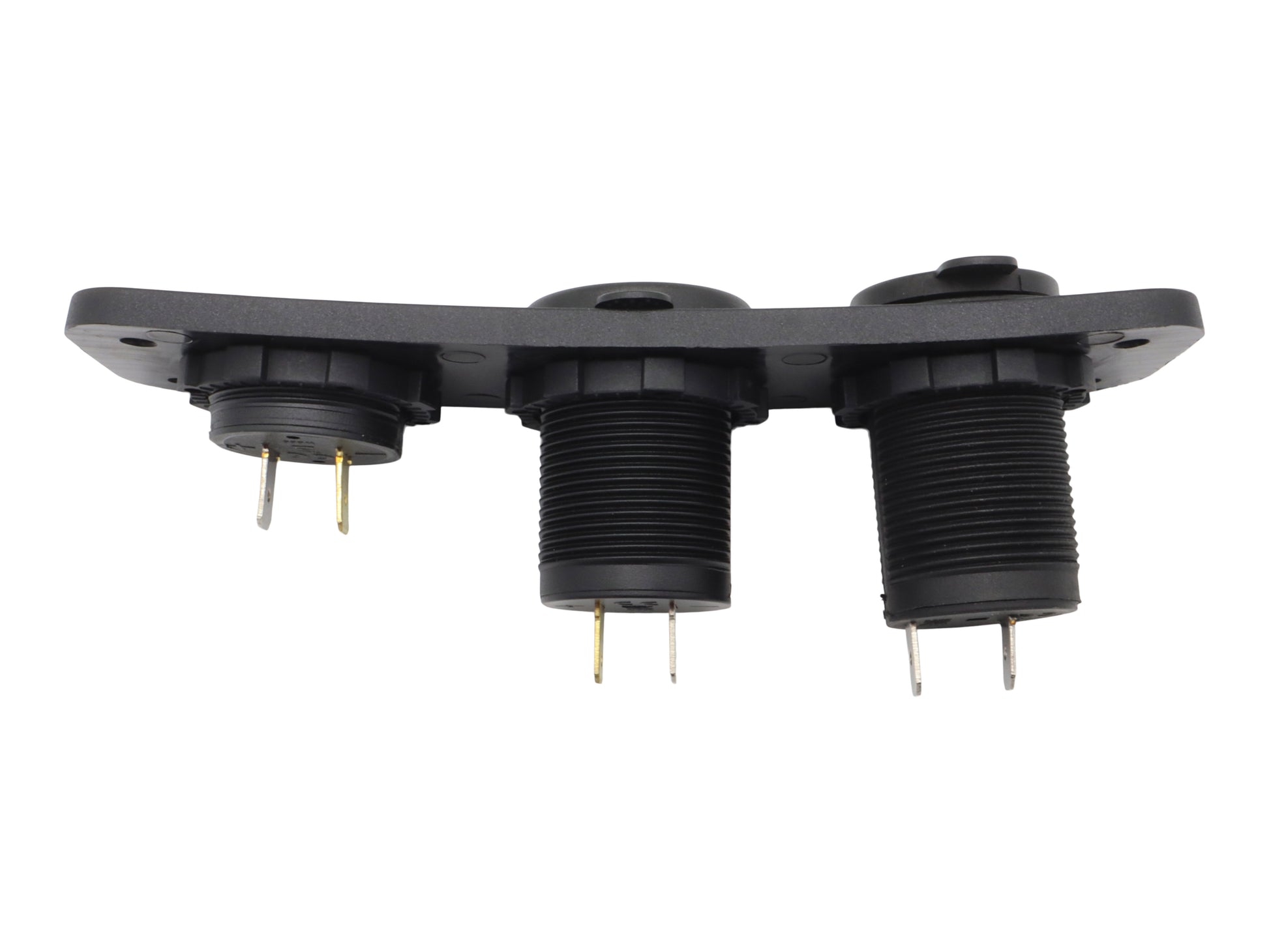

This power outlet unit can be mounted into a panel or bulkhead up to 6mm thickness (the limiting factor for this is the length of the barrel / nut for the volt-meter part of the unit).

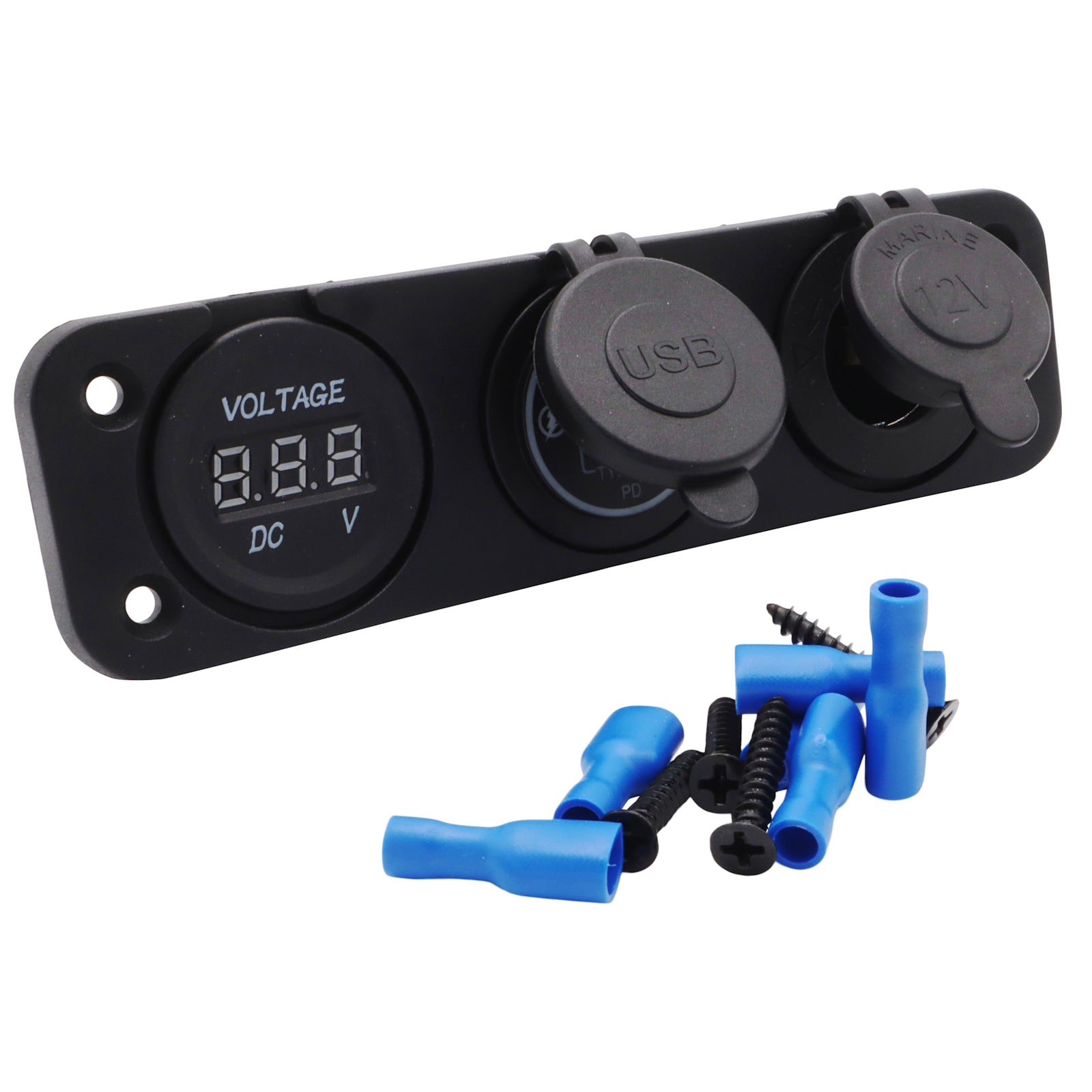

Installation involves making three holes (29 or 30mm) for the three barrels, which have securing nuts which are tightened from the rear.  Also the face plate comes with 4 fixing holes (screws are included).

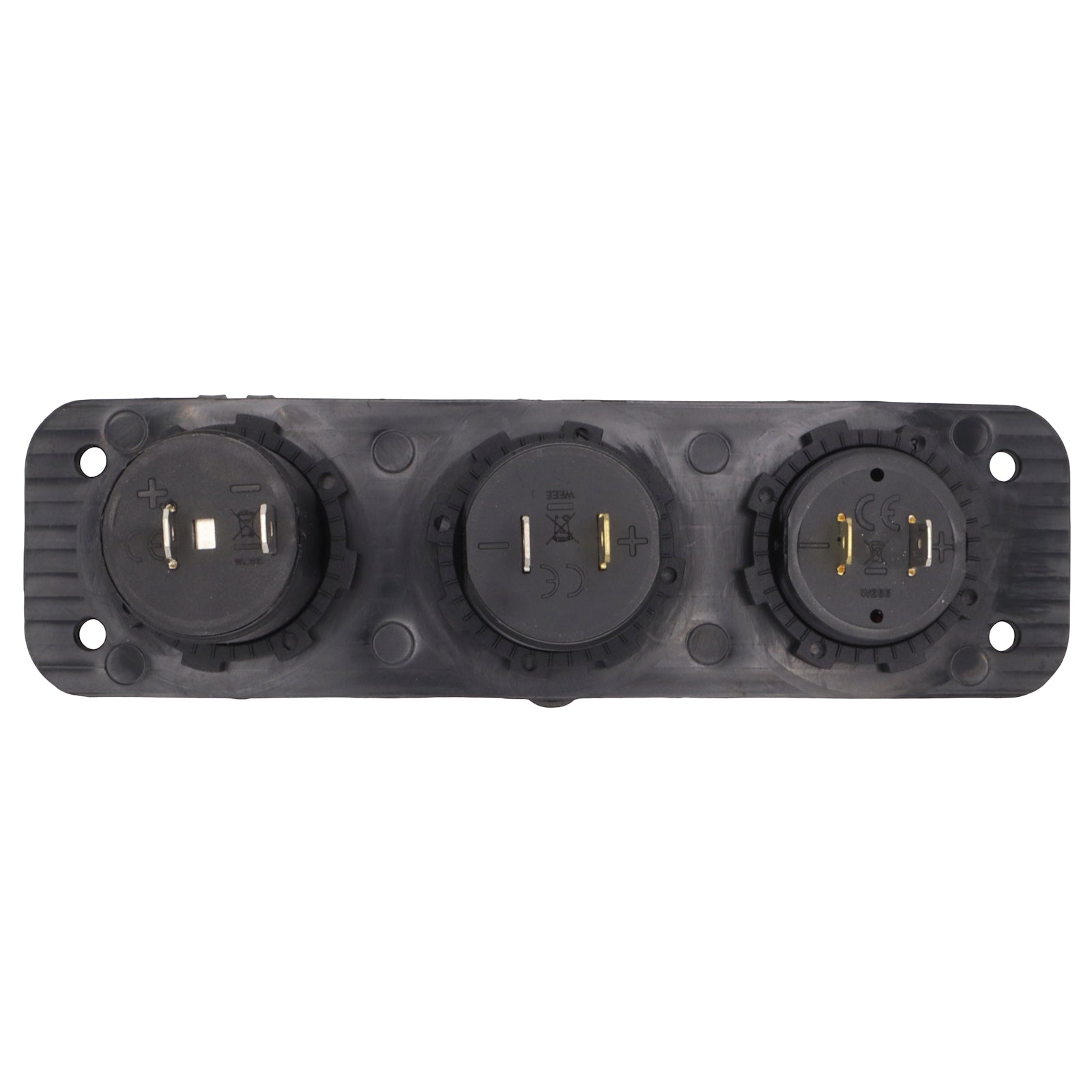

Each of the 3 elements of this unit (volt-meter, USB, cigarette lighter socket) require 12V power to be fed to them via their spade terminals.

The digital voltmeter operates from 8 to 32V. The two power outlets come with rubber protection caps for keeping water out when not in use.

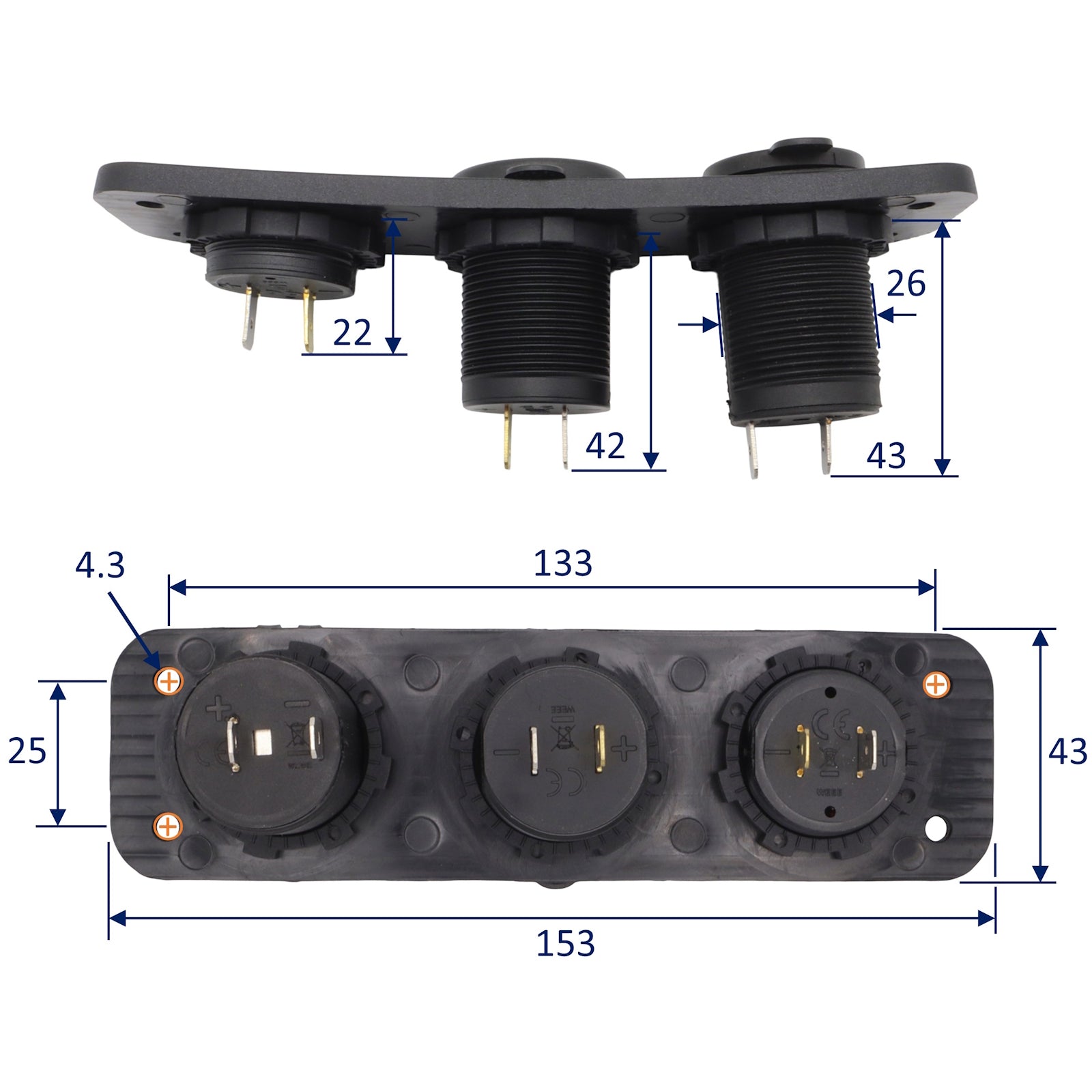

See pictures for detailed dimensions.

•    Black Nylon face plate with fixing screws
•    Digital voltmeter 8 to 32V
•    USB plug type A+C
•    12V ‘cigarette lighter’ socket
•    Waterproof covers for the USB and Power outlet
