Bimini Mounting Point For Vertical Surfaces – 316-Grade Stainless Steel

Product Description

Built for attaching bimini tops, dodger and canvas frames to vertical surfaces, this side mount deck hinge offers a strong, corrosion-resistant fixing point for cabin sides, coamings and similar upright surfaces where a standard flat-mount hinge won't work.

Manufactured from A4 (AISI 316) marine-grade stainless steel, this hinge is built to withstand continuous exposure to salt water and harsh marine conditions without corroding, ensuring a long service life and reliable performance season after season. The 73 x 48mm footprint provides a solid, stable base plate, and the hinge is drilled with four countersunk mounting holes for a secure, straightforward installation.

The hinge pin allows the frame tube fitting to swing through its full range of motion, making it easy to raise, lower or fold away canvas structures as needed, while the robust stainless construction keeps everything running smoothly without seizing or sticking over time.

Key Highlights:
•    Side mount design for vertical surface fitting
•    Material: A4 (AISI 316) marine-grade stainless steel

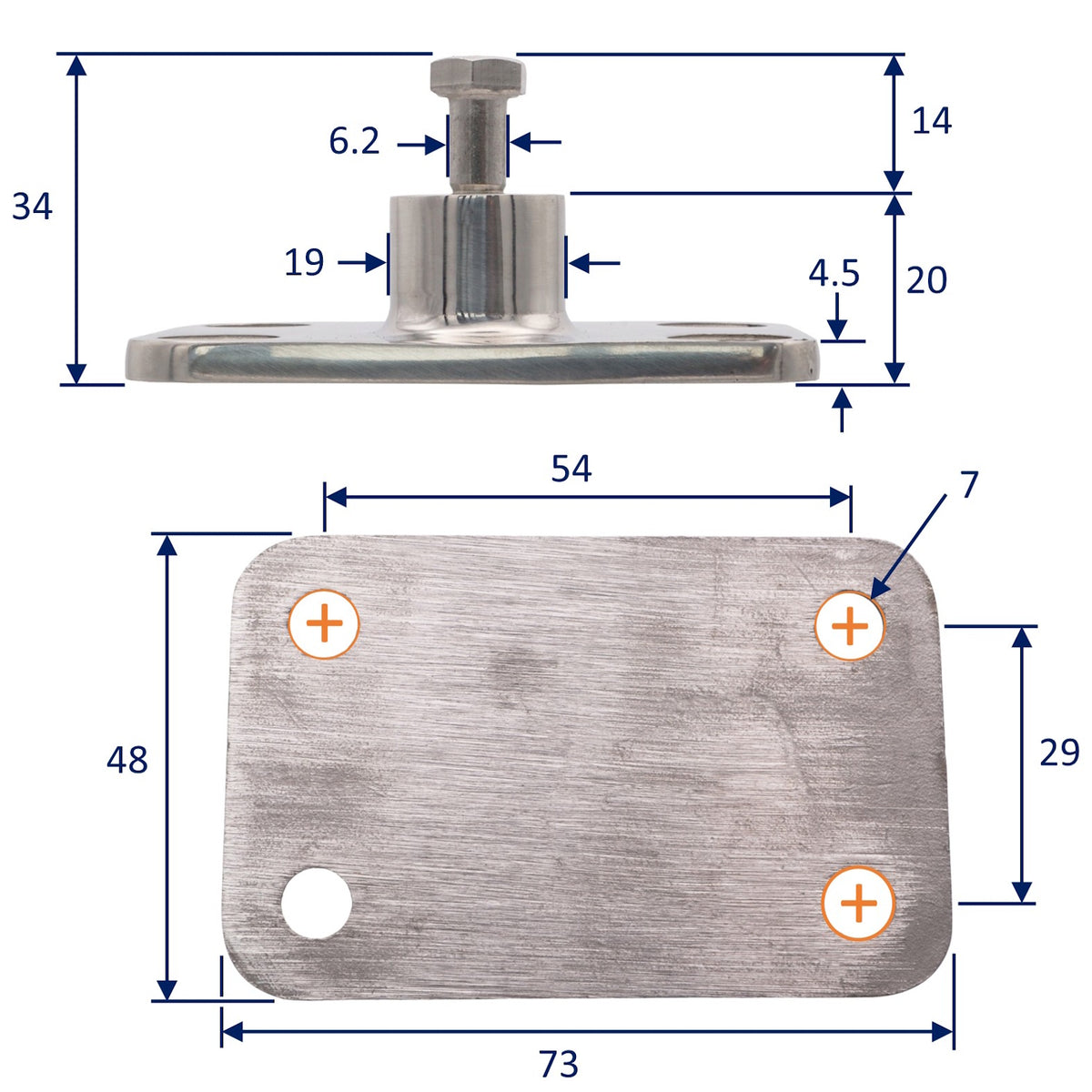

•    Dimensions: 73 x 48mm
•    Pin diameter 6.2mm
•    Corrosion-resistant for long-term marine use
•    Ideal for bimini, dodger and canvas frame attachment
•    Pre-drilled for straightforward installation
•    Mount with M6 fixings (not supplied)
