Anodized Aluminium Stanchion Base - Diameter 25mm - 7 Degree Slope

Product Description

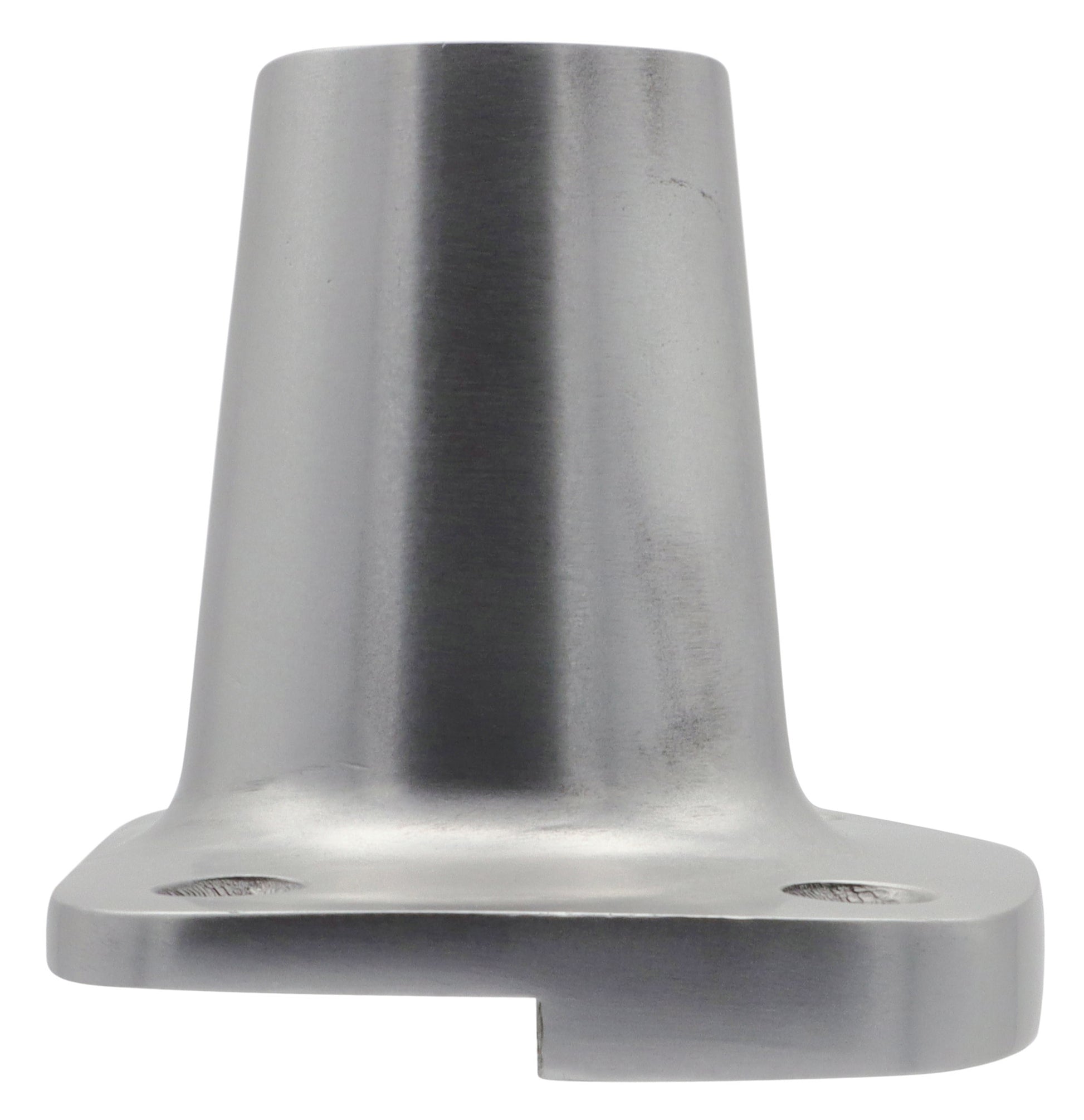

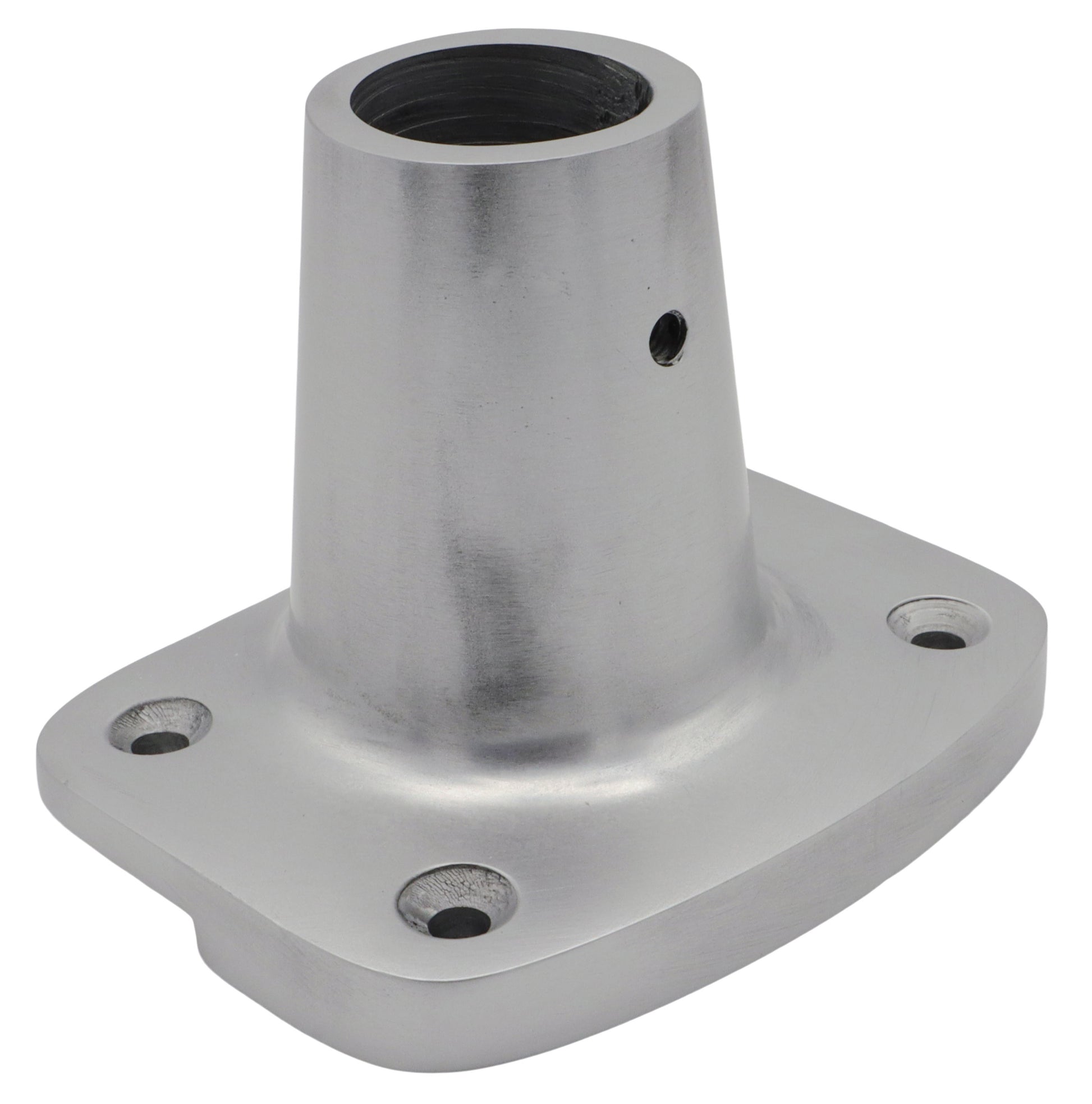

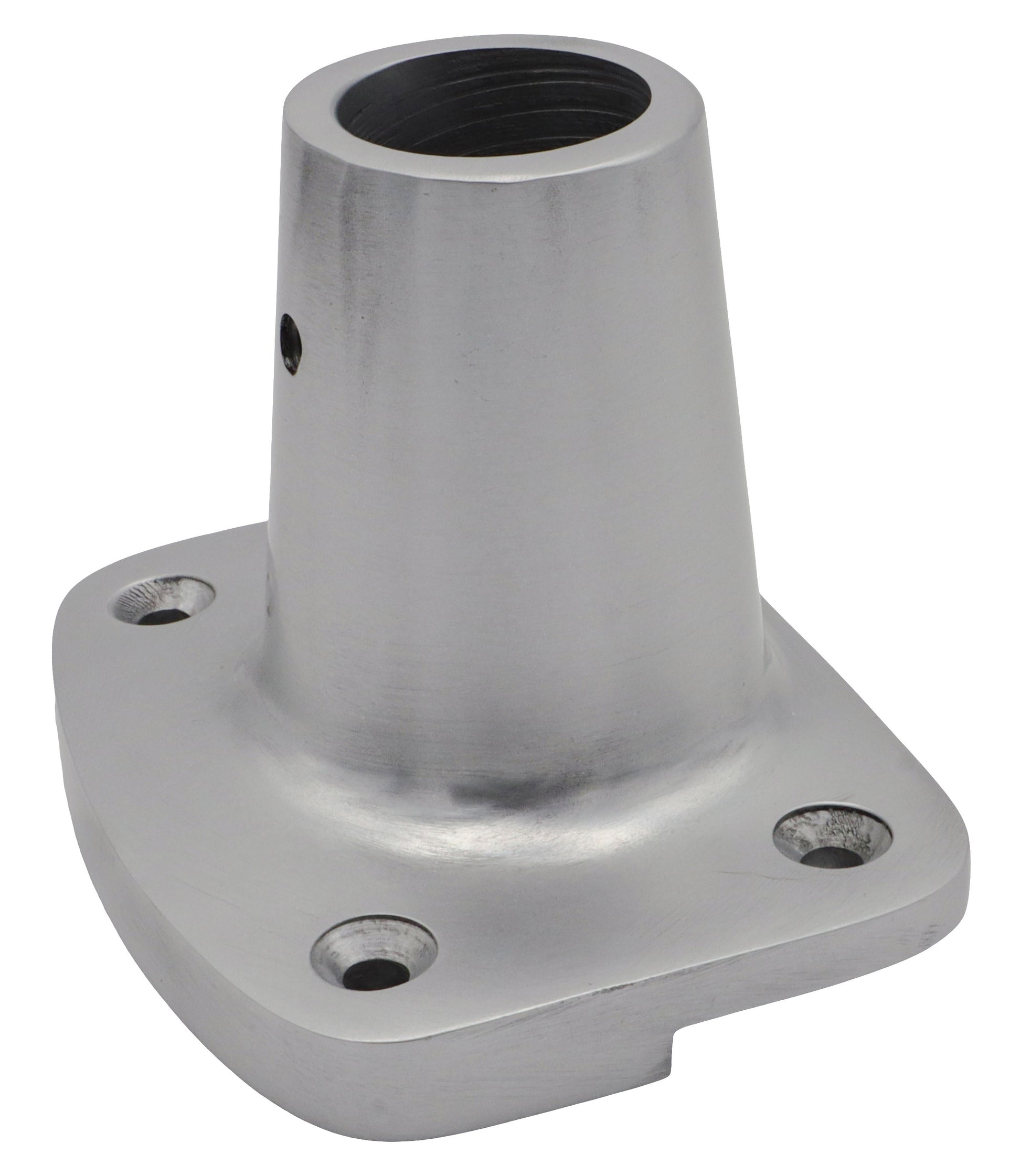

Osculati anodized aluminium stanchion base with 4 countersunk fixing holes. Designed for 25mm (or 1 inch) stanchions, and integrates with a toe rail when installed. This item has an internal 7 degree slope.

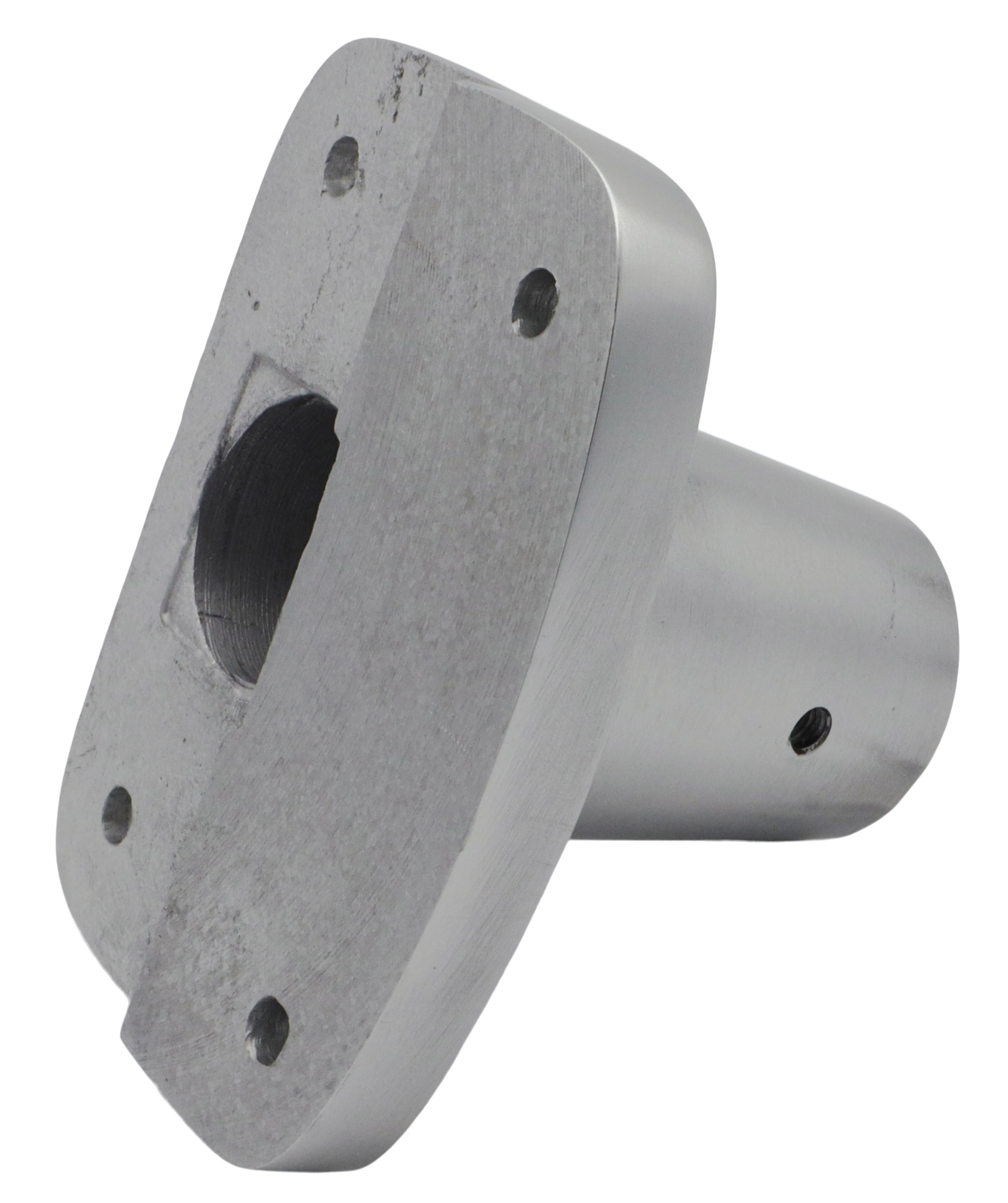

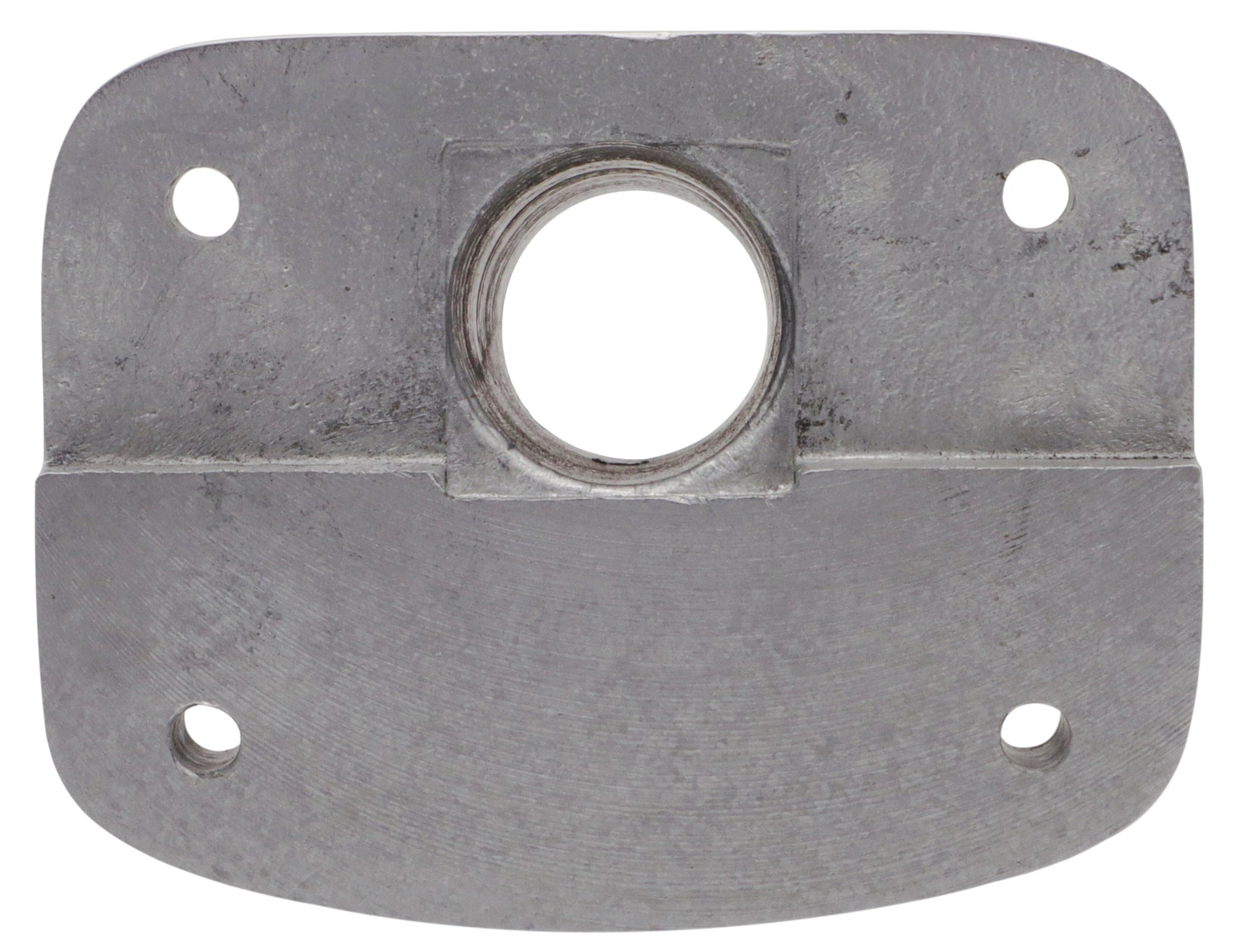

The stanchion base is designed to sit half onto the aluminium toe-rail, with a built-in step to accommodate the thickness of a typical toe-rail.  The height of the step if approximately 4.5mm.  When in place against the toe-rail, two of the fixings go through the toe rail and the other two go straight through the stanchion base and through the deck.

•    Anodized aluminium

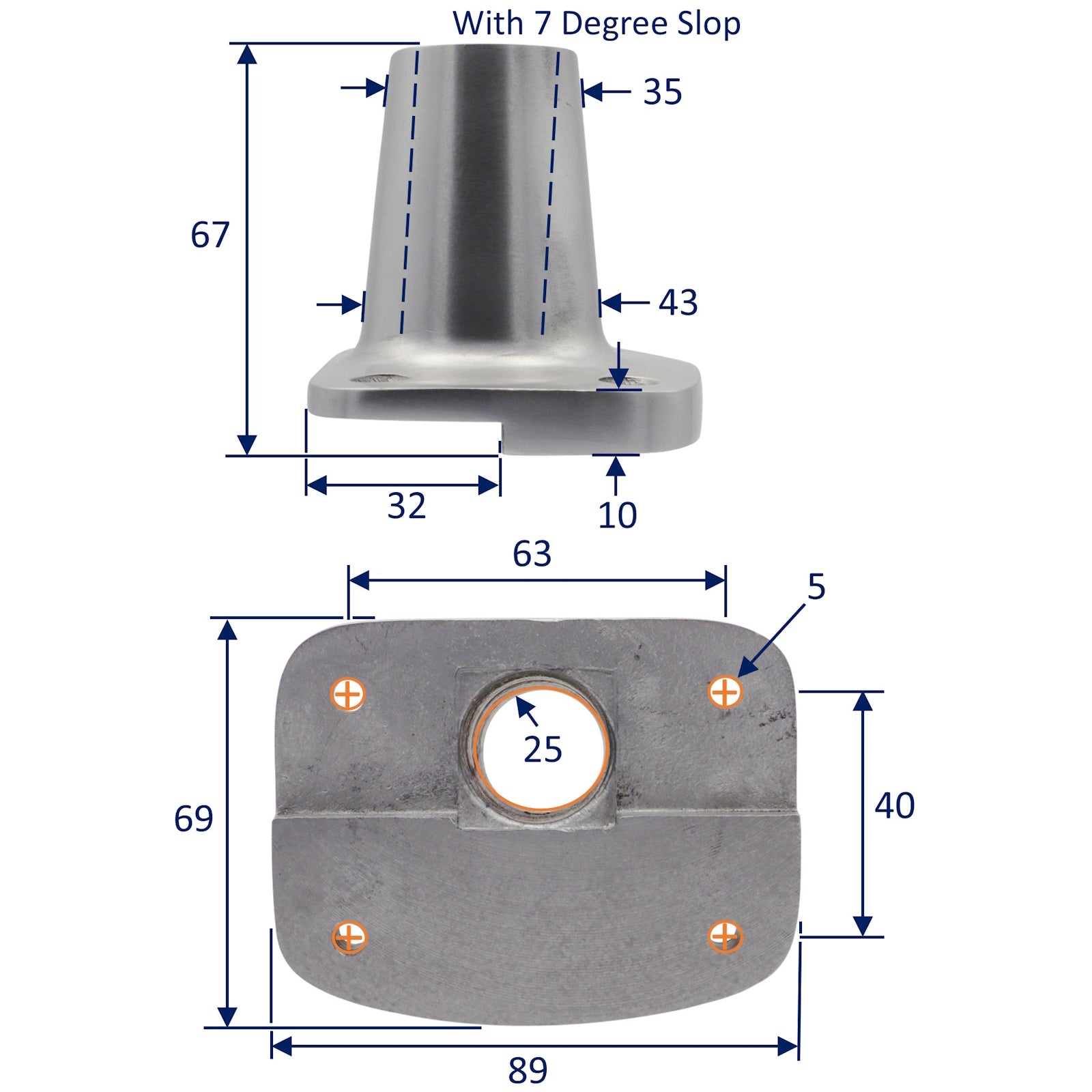

•    Suited to a 25mm (or 1 inch) stanchion
•    7 degree internal slope
•    Use 4x M5 set-screws / bolts for mounting
